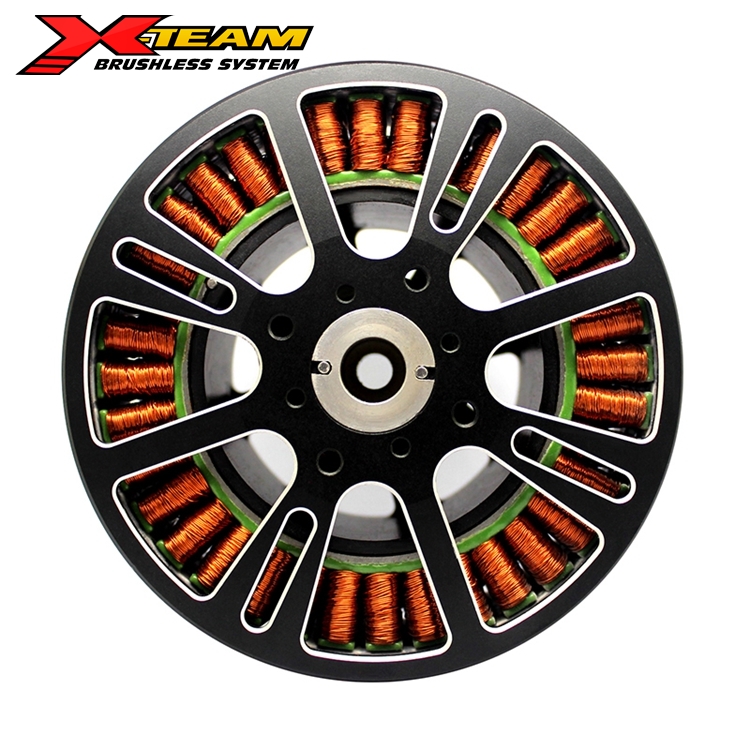

BLDC (brushless DC motor) driver is a key component in modern motor drive technology. With the booming development of industrial automation, robotics and new energy vehicles, the application scope of BLDC motor is expanding. So, how does BLDC driver work?
- Electronic commutation
BLDC driver realizes motor commutation electronically, which is one of the main differences between it and traditional DC motor. Traditional DC motors use brushes and commutators to achieve commutation, while brushless DC motors control the power-on sequence of stator coils through electronic switches (such as MOSFET or IGBT) inside the driver.
1) Sensor control:
Hall sensors or encoders are used to detect the position of the rotor.
The driver adjusts the power-on sequence of the stator coils in real time according to the sensor signal to ensure that the motor can rotate continuously.
2) Sensorless control:
The rotor position is estimated by detecting the back electromotive force (Back EMF).
The sensor is eliminated, reducing system cost and complexity, but some control accuracy and stability may be sacrificed.
- Current control
BLDC driver controls the output torque of the motor by adjusting the current. This is usually achieved through a current control circuit that monitors the motor’s current and adjusts the drive’s output accordingly.
1) Current closed-loop control:
The motor’s current is monitored in real time through a feedback mechanism.
The drive’s output current is adjusted based on the difference between the set value and the actual value to maintain a stable torque output.
2) Vector control (FOC):
The current is decomposed into two components: one for torque generation and the other for field orientation.
Precise control of these two components allows for more efficient and stable motor operation.
- Speed regulation
BLDC drives use pulse width modulation (PWM) signals to control the speed of the motor. A PWM signal is a periodic digital signal whose duty cycle (the proportion of the high level time to the total period) determines the average current of the motor, thereby controlling the speed of the motor.
1) PWM modulation:
The average current of the motor is controlled by adjusting the duty cycle of the PWM signal.
The larger the duty cycle, the greater the average current of the motor and the faster the speed.
2) Speed closed-loop control:
The motor’s speed is monitored in real time through a feedback mechanism.
The duty cycle of the PWM signal is adjusted based on the difference between the set value and the actual value to maintain a stable speed.
- Other functions
In addition to the basic functions mentioned above, BLDC drivers may also have the following functions:
1) Protection function:
Including overcurrent protection, overtemperature protection and undervoltage protection.
When the driver detects an abnormal situation, it will automatically cut off the power supply or take other measures to protect the motor and driver from damage.
2) Advanced debugging function:
Such as PID parameter adjustment, vibration and noise analysis, etc.
These functions can help users optimize the dynamic response, stability and performance of the motor.
The BLDC driver achieves precise control of the brushless DC motor through mechanisms such as electronic commutation, current control and speed regulation. These mechanisms work together to make the BLDC driver have the advantages of high efficiency, low noise and low maintenance, and it has been widely used in many fields such as industrial automation, household appliances, electric vehicles, etc.
