As electric vehicles become more and more popular in urban traffic, the technology of electric vehicles is also constantly improving. In the power system of electric vehicles, Hall sensors, as a key component, play a vital role. Hall sensors are sensors that work on the principle of Hall effect and are widely used in the motor control system of electric vehicles. It can accurately sense the rotation state of the motor and transmit this information to the control system, thereby achieving precise control of the motor.
- Basic principle of Hall sensor
The working principle of Hall sensor is based on the Hall effect. The Hall effect means that when current passes through a conductor or semiconductor material, if a magnetic field is applied perpendicular to the direction of the current, a voltage perpendicular to the direction of the magnetic field will be generated in the conductor. The magnitude of this voltage is proportional to the strength of the magnetic field. Using this principle, the Hall sensor can sense the change of the magnetic field and detect the rotation of the motor.
- Application of Hall sensors in electric vehicles
The motor system of electric vehicles needs to be precisely controlled to achieve smooth starting, acceleration, braking and other operations. Hall sensors play an important role in this process and are mainly used in the following aspects:
1) Detecting the position of the motor rotor
The drive control system of the electric vehicle motor needs to know the real-time position of the motor rotor in order to accurately adjust the current and voltage and optimize the motor performance. The Hall sensor is usually installed in the stator part of the motor, which can sense the position change of the permanent magnet in the rotor and provide information about the rotor angle to the controller. With this information, the motor controller can accurately adjust the current input to ensure smooth operation of the motor.
2) Realize brushless control of the motor
Modern electric vehicles mostly use brushless DC motors (BLDC motors). Unlike traditional brushed motors, brushless motors do not use mechanical brushes, but control the operation of the motor through an electronic controller. The Hall sensor helps the electronic controller to obtain the rotor position in real time, so as to accurately determine the power-on timing of each phase winding. According to the information fed back by the Hall sensor, the controller can provide current to each winding in the correct timing to ensure smooth and efficient operation of the motor.
3) Improve the efficiency and stability of electric vehicles
The precise feedback of the Hall sensor enables the motor to achieve optimal control under different working conditions, avoiding excessive or insufficient power input. This not only improves the operating efficiency of the motor, but also reduces energy loss and extends the battery life. In addition, Hall sensors can help electric vehicles maintain stability during starting, acceleration, and deceleration, improving driving comfort.
4) Protecting electric vehicle motors
Hall sensors can also be used in motor protection systems. By monitoring the state of the motor rotor, the Hall sensor can detect abnormal conditions of the motor in a timely manner, such as rotor position offset or excessive speed. The information fed back by the sensor will be transmitted to the control system of the electric vehicle, and the control system can prevent the motor from being damaged due to overload or overheating by adjusting the motor operating parameters.
- Advantages of Hall sensors
The application of Hall sensors in electric vehicles brings many advantages:
1) High precision: Hall sensors can accurately sense changes in the magnetic field, thereby achieving precise control of the motor.
2) High reliability: Hall sensors have no mechanical contact parts, are highly durable, can work stably for a long time, and reduce maintenance costs.
3) Real-time feedback: It can provide motor status information in real time to ensure rapid response of various motor parameters.
4) Energy saving and environmental protection: By accurately controlling the motor, Hall sensors help improve the operating efficiency of the motor and reduce energy waste.
The role of Hall sensors in electric vehicles cannot be ignored. By providing accurate motor position feedback, it helps the control system to achieve efficient management of the motor. With the continuous development of electric vehicles, the application of Hall sensors will become more and more extensive. It not only improves the performance and driving experience of electric vehicles, but also makes important contributions to the safety, stability and energy efficiency of electric vehicles. In the future, with the continuous advancement of technology, Hall sensors will play a greater role in the field of electric vehicles and help popularize green travel.

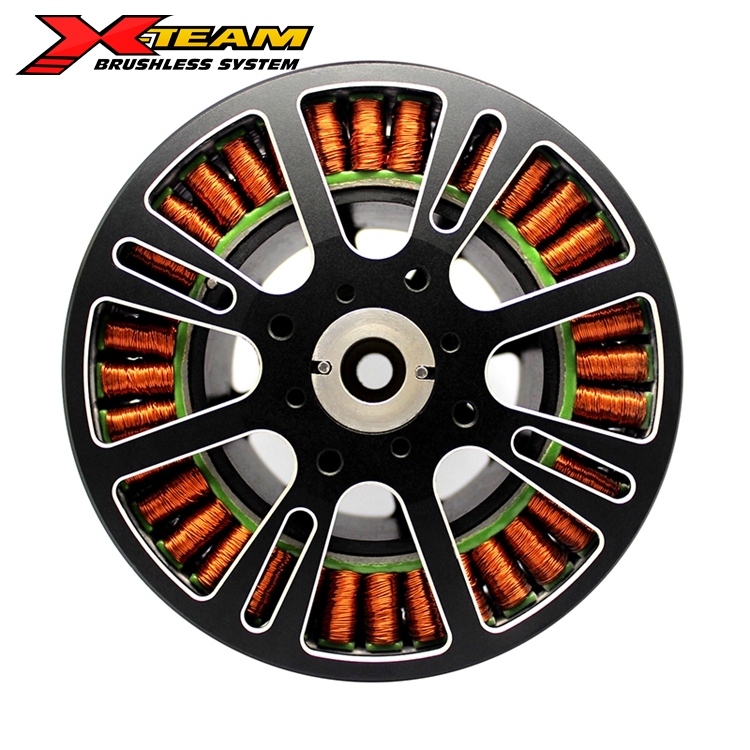

If you want to know more about “brushless motors”, you can contact online customer service. X-TEAM brushless motors provide OEM and ODM services for a long time to meet the different needs of different customers.
