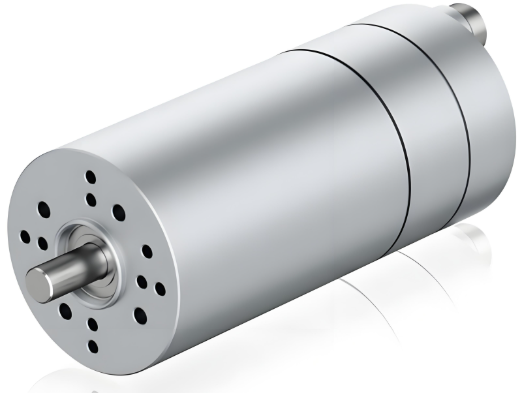

EC motor, also known as electronic commutation motor, is a new type of motor technology widely used in various equipment. Compared with traditional AC and DC motors, EC motors adopt electronic control technology, which enables them to perform well in terms of energy efficiency, smooth operation, and service life.
- Definition and Characteristics
1) Definition: EC motor, also known as electrical commutation motor, is a brushless, DC, external rotor type motor that achieves commutation through electronic means, integrates the motor and driver, and forms a new type of motor with integrated drive control.
2) Features: Energy saving and efficient: EC motors have high efficiency, which can reduce operating costs and extend service life.
Compact structure: EC motors have a compact structural design, smaller volume, exquisite appearance, and easy installation and wiring.
Simple control: Provides multiple control interfaces such as 0-10V and RS485, supporting various control functions such as motor soft start, overheating protection, current limiting, overload protection, etc.
Quiet operation: EC motors run quietly with low noise, suitable for occasions with high noise requirements.
- Working principle
1) Power Conversion: EC motors integrate voltage conversion inside the motor, converting single-phase 230VAC or three-phase 400VAC power to DC voltage.
2) Electronic commutation: The rectifier in the integrated controller board converts AC power to DC power and guides an appropriate amount of current in the correct direction at the correct time. Electronic commutation is achieved through each winding.
3) Magnetic field generation and interaction: EC motors use permanent magnets and windings to generate a magnetic field. The position of the magnets is determined by Hall effect sensors, so that appropriate magnets are sequentially attracted to the magnetic poles in the stator, while the remaining stator windings have opposite polarities. These traction and repulsion forces combine to achieve rotation and generate optimal torque.
- Application Fields
EC motors have a wide range of applications in various fields, including but not limited to:
1) HVAC system: such as air conditioning, ventilation equipment, etc.
2) Agriculture: such as the drive system in agricultural machinery and equipment.
3) Industry: driving systems in fields such as industrial automation, indoor logistics, medical technology, etc.
4) Commercial fans: ventilation systems for places such as data centers and buildings.
- Advantages and Development Trends
1) Advantages: Easy to maintain: The EC motor has a compact structure and is easy to maintain.
Long service life: Due to the generation of less heat, the windings and bearings bear less stress, thereby extending the service life of the motor.
2) Development trend: Customization: With the increasing demand for specific application motors in the market, EC motors will develop towards customization.
Intelligence: Supports multiple intelligent control functions, such as PFC function, communication control, etc., to improve the intelligence level of the motor.
EC motor, as a new type of integrated drive control motor, has the characteristics of energy saving, high efficiency, compact structure, simple control, and quiet operation. It has a wide range of applications and broad development prospects in multiple fields.
