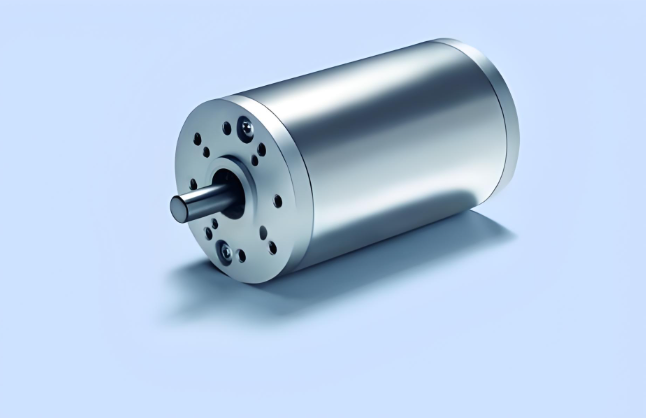

Brushless motor is a new type of electric motor widely used in various electronic devices and machinery. Compared with traditional brushed motors, brushless motors have higher efficiency and longer service life. This is because brushless motors use electronic commutation technology to avoid friction between brushes and commutators, thereby reducing wear and heat generation.
- Definition and working principle
1) Definition: Brushless motor, as the name suggests, refers to an electric motor without brushes. In traditional electric motors, electric brushes are components used to provide current to the rotor, causing it to rotate. Brushless motors, on the other hand, adopt a different design by electronically controlling the current, thereby eliminating the need for electric brushes.
2) Working principle: A brushless motor is mainly composed of a stator, rotor, and driver. The stator is wound with three-phase windings symmetrically distributed. When a specific sequence of currents is applied to the three-phase windings, a rotating magnetic field is generated inside the stator. The rotor is a permanent magnet made of high-performance permanent magnet materials such as neodymium iron boron. The magnetic field generated by the permanent magnet interacts with the rotating magnetic field generated by the stator winding, causing the rotor to rotate under torque. The driver sequentially applies electricity to the stator winding in a specific order based on the rotor position information. By precisely controlling the magnitude and on-off time of the current, the strength and rotation speed of the stator magnetic field can be controlled, thereby achieving control over the motor speed and torque.
- Advantages
1) Brushless and low interference: Brushless motors eliminate electric brushes, thus eliminating the electric sparks generated during the operation of brushed motors, greatly reducing the interference of electric sparks on remote control radio equipment.
2) Low noise and smooth operation: Brushless motors without brushes greatly reduce friction during operation, resulting in smooth operation and significantly reduced noise.
3) Long lifespan and low maintenance cost: The wear of brushless motors is mainly concentrated on the bearings. From a mechanical perspective, brushless motors are almost maintenance free motors.
- Disadvantages
Although brushless motors have many advantages, they also have some limitations. For example, compared to some brushed motors, brushless motors may have slightly inferior low-speed torque performance, and their cost is usually higher. However, with the decreasing cost trend of brushless controllers and the development and market competition of global brushless technology, these problems are gradually being solved.
- Application Fields
The application of brushless motors is very extensive, covering multiple fields such as automobiles, tools, industrial control, automation, and aerospace. Specifically, brushless motors can be divided into three main applications: continuous load applications, variable load applications, and positioning applications. In continuous load applications, brushless motors are mainly used in fields that require a certain speed but do not require high speed accuracy, such as fans, water pumps, etc. In variable load applications, brushless motors need to meet the demand for speed variation within a certain range, such as in household appliances such as dryers and compressors. In positioning applications, brushless motors are mainly used in industrial control and automatic control, such as process control, mechanical control, and transportation control.
Brushless motors have been widely used in many fields due to their advantages of high efficiency, high reliability, and low noise. With the continuous advancement of technology and the reduction of costs, the application prospects of brushless motors will be even broader.
