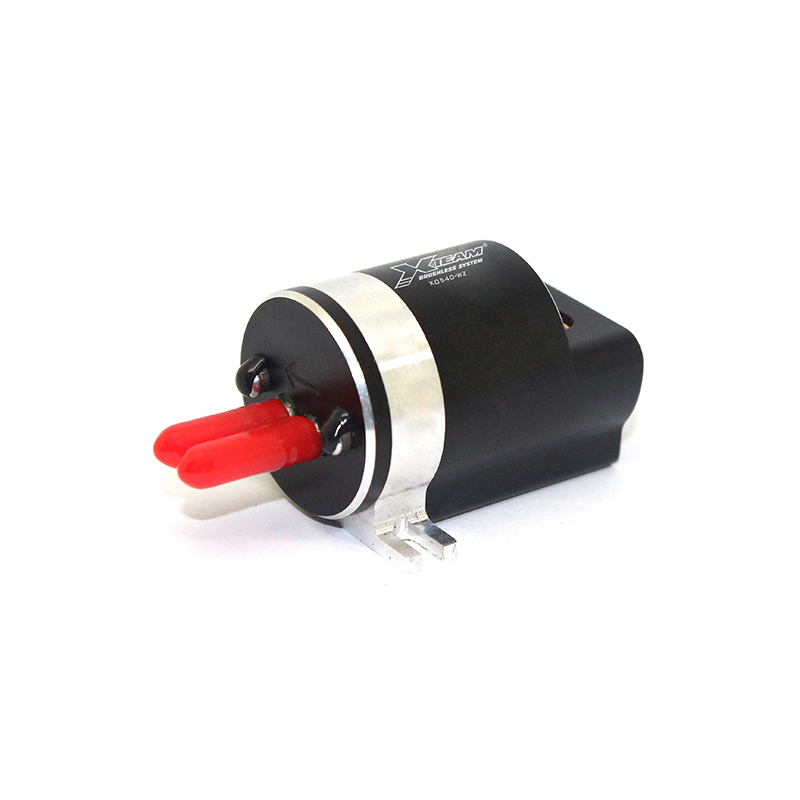

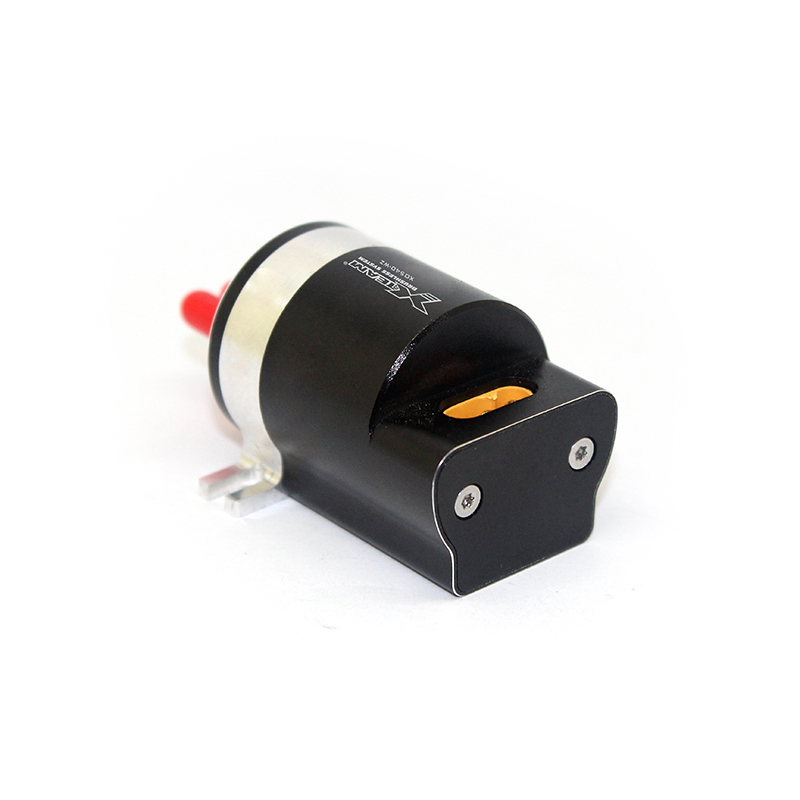

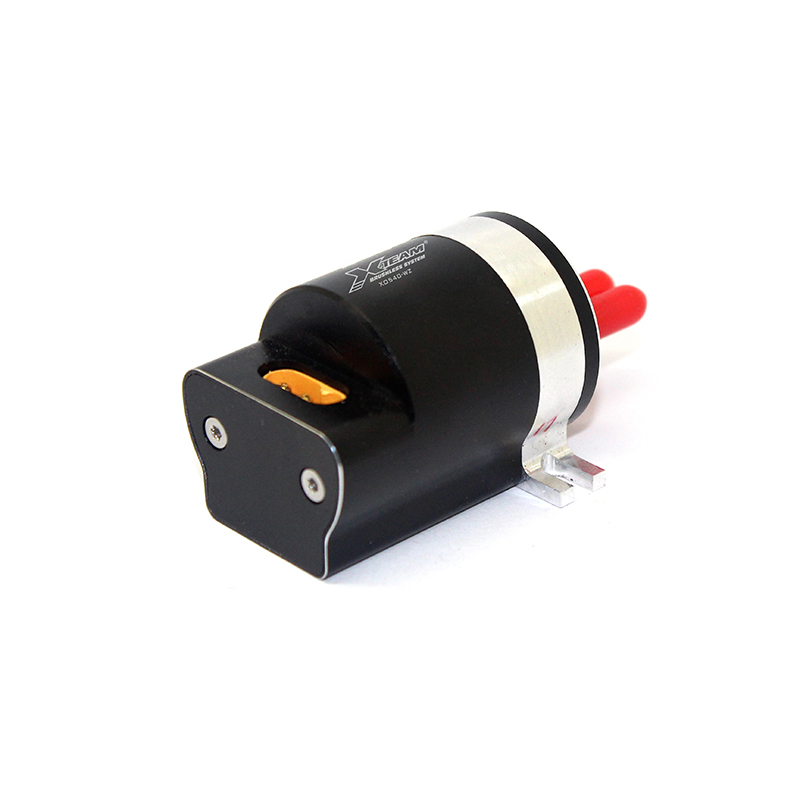

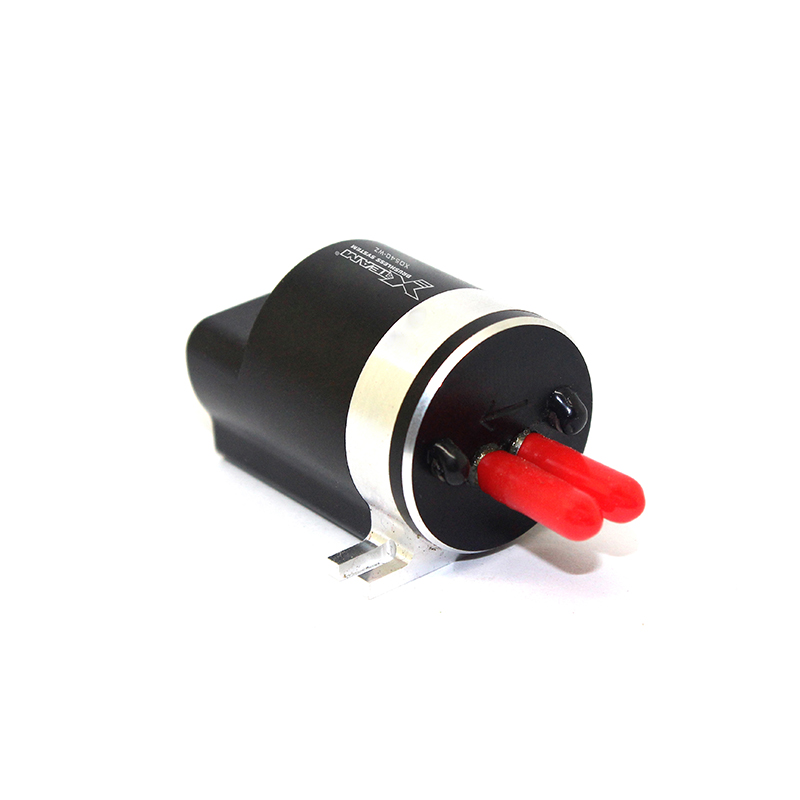

XTP1200 brushless oil pump for micro turbojet engine

Description

The XTP1200 brushless oil pump for micro turbojet engine is specifically engineered for micro turbojet engines, leveraging advanced BLDC (brushless DC) motor technology to stand out in the market with its exceptional performance, compact design, and versatility. Whether in laboratory environments requiring precise flow regulation or industrial applications with stringent reliability and durability demands, the XTP1200 excels in delivering consistent results across diverse scenarios.

Performance Parameters

Model: XTP1200

Voltage Range: Supports a wide input voltage range of 0.7V to 12V, ensuring stable operation under various power conditions.

Maximum Power: Delivers up to 140W at rated voltage, providing robust performance for demanding tasks.

Electronic Speed Controller (ESC): Equipped with a 30A ESC for precise speed control, stable current management, and overload protection.

Structural Features

Compact Design: Measures Φ26×43.5mm and weighs just 68g, ideal for space-constrained installations.

High-Efficiency Energy Conversion: BLDC motor technology ensures superior energy efficiency, converting electrical energy to mechanical power more effectively than traditional motors.

Low-Noise Operation: Incorporates cutting-edge noise reduction technology, making it suitable for noise-sensitive environments.

Pump Performance & Applications

Pump Head Design:

Inner Diameter: DΦ3.0mm

Outer Diameter: DeΦ6.0mm

Flow Channel Design:

Inner Diameter: DΦ2.5mm

Outer Diameter: DeΦ4.0mm

Flow Rate: Adjustable from 7ml to 1200ml/min (±5% accuracy).

Pressure Range:

Maximum: 5MPa at 11V

Minimum: 0.2MPa at 0.7V

Application Fields

Laboratories: Enables precise fluid flow and pressure control for research experiments.

Industrial Sector: Ideal for industries requiring stable and reliable fluid transfer, such as chemical, pharmaceutical, and manufacturing.

Other Uses: Agricultural irrigation, water treatment, food processing, and more.

Precautions

Voltage Compliance: Ensure the power supply voltage matches the device’s required range (0.7V–12V) to prevent damage or safety hazards.

Correct Installation: Follow the manual for secure pump head and flow channel connections to avoid leaks or contamination.

Regular Maintenance: Clean and inspect the pump regularly. Contact after-sales service immediately for abnormal conditions.

Environmental Adaptation: While operational in broad temperature ranges, use caution in extreme conditions (e.g., high heat, humidity) and ensure proper cooling/protection.

If you’re interested in the XTP1200 brushless oil pump or need further details, contact us for tailored solutions. X-TEAM motors provide reliable power for automation, robotics, and high-performance systems.
