Description

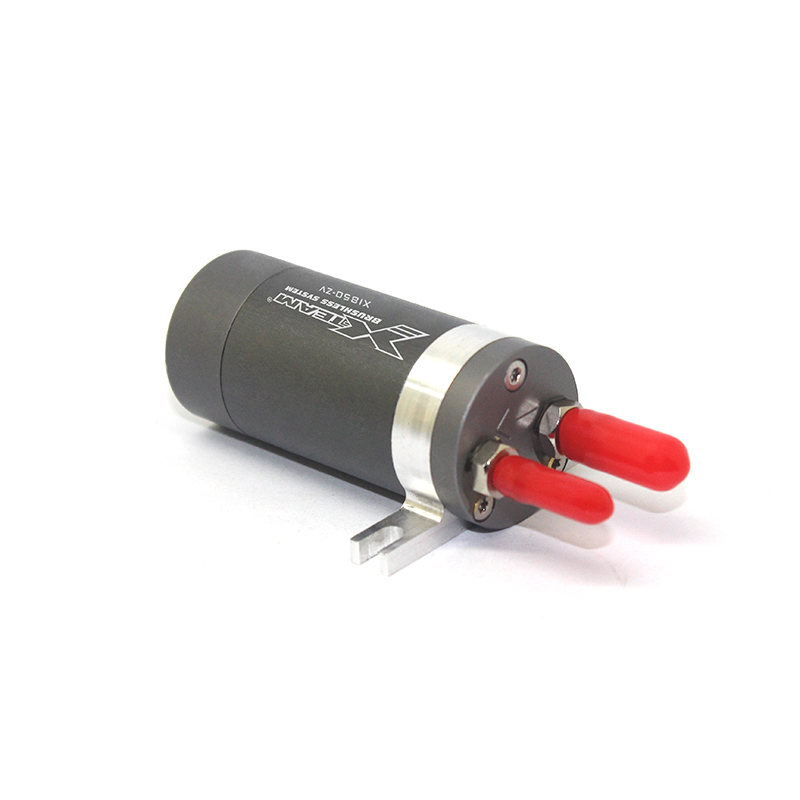

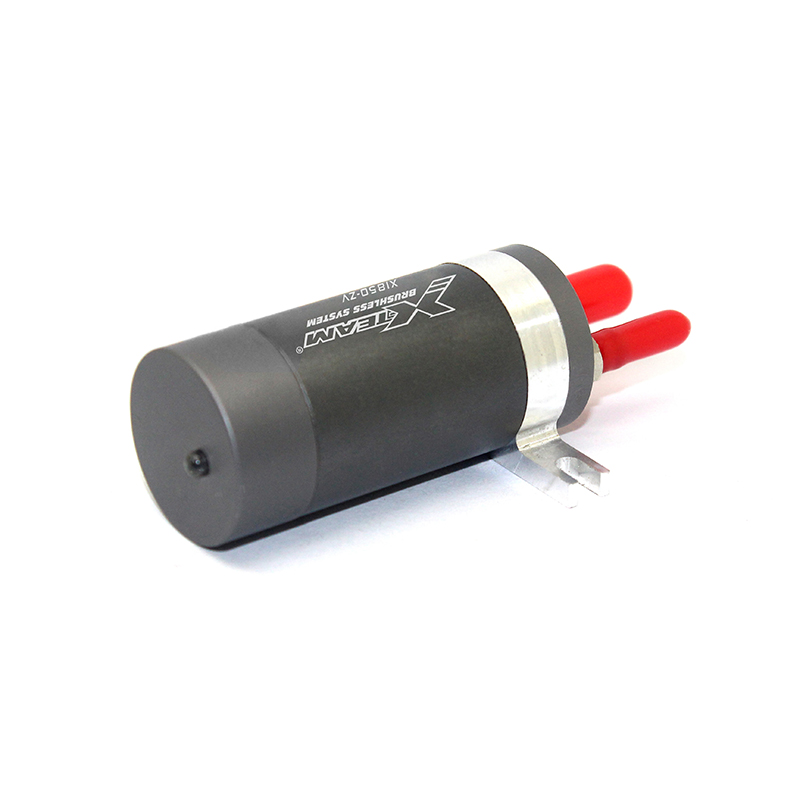

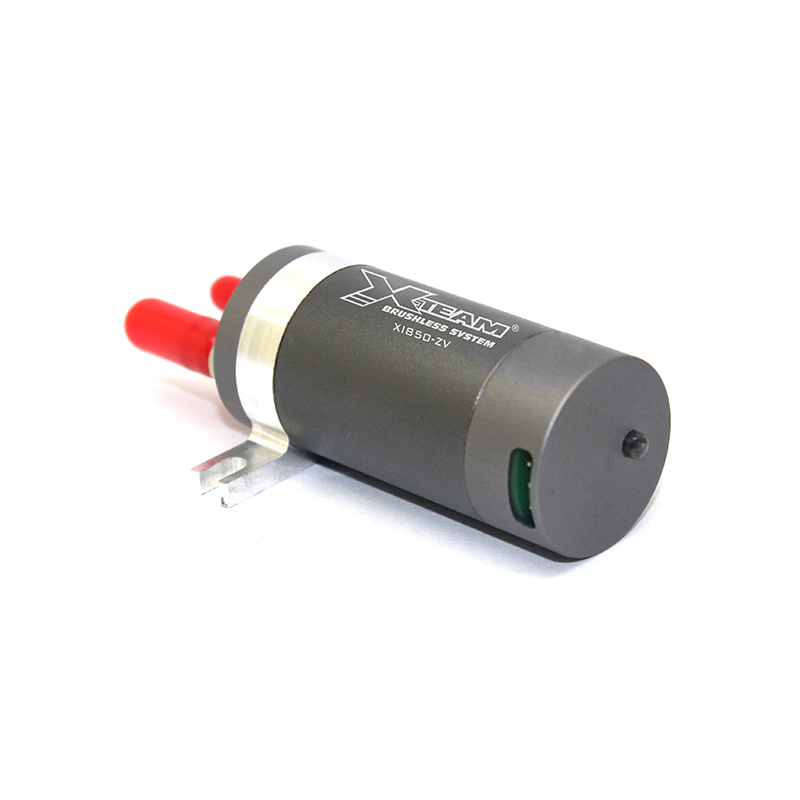

The XTP0800 brushless oil pump for micro turbojet engine is a BLDC (Brushless Direct Current) motor pump that combines lightness, compactness, and high-efficiency stable performance. With its unique design concept and excellent technical performance, it has become an ideal choice for numerous liquid transportation application scenarios.
Performance Parameters
Model: XTP0800
Size and Appearance: With a diameter of 22mm and a length of 48mm, its compact shape design makes it easy to carry and install, especially suitable for application environments with limited space.
Voltage Range: From 0.7V to 12V, it has a wide voltage adaptation range, which can be adapted to different power supply environments and provides more flexible usage options.
Pump Suction and Flow Characteristics: The suction port diameter is DΦ2.5mm, and the outlet diameter is DeΦ4.0mm, ensuring the smooth suction and discharge of liquids and being suitable for a variety of fluid media. The diameter of the pump flow line ranges from DΦ2.5mm to DeΦ4.0mm, ensuring the stability of fluid flow.
Power and Capacity: The maximum power is 260W, providing strong power support to meet stringent work requirements. The pump’s flow rate ranges from 15ml to 800ml/min (±10%), which can meet various flow rate demands.
Pressure Characteristics: The maximum pressure can reach 3Mpa (at 11V voltage), meeting the working environment with high-pressure requirements. The minimum pressure is 0.2Mpa (at 0.7V voltage), enhancing the adaptability of the equipment.
Pump Lift and Pump Head Height: Both are 1m, having a certain vertical conveying capacity and being suitable for liquid scenarios that require vertical transportation.
Weight: 65g, extremely lightweight, making it easy to carry and operate.
Operating Temperature Range: From -25°C to 100°C, it can adapt to a wide range of temperature changes, ensuring stable operation under various environmental conditions.
Structural Features
Brushless Design: The XTP0800 brushless oil pump for micro turbojet engine adopts a brushless design, eliminating carbon brushes and commutators, significantly reducing friction and wear, thus improving the service life and stability of the motor.
High Efficiency and Energy Saving: It has excellent efficiency, significantly reducing energy consumption and improving the efficiency of energy use.
Precise Control: With the help of advanced electronic speed control technology, it can precisely control the rotation speed and flow rate of the motor to meet the needs of different application scenarios.
Compact Design: Being small in size, the XTP0800 brushless oil pump for micro turbojet engine can demonstrate excellent performance in a limited space.
Application Fields
Industrial Field: Such as high-pressure cleaning, liquid mixing, chemical reagent transportation, etc.
Medical Equipment: Such as infusion pumps, hemodialysis machines, etc.
Portable Devices: Such as portable aquariums, portable sprayers, etc.
Other Industries: Such as agricultural irrigation, gardening equipment, laboratory instruments, etc.
Precautions
Power Supply Voltage: Please confirm that the power supply voltage remains between 0.7V and 12V, and avoid too high or too low voltage to prevent damage to the motor.
Fluid Medium: Be sure to ensure that the selected fluid medium meets the design standards of the pump. Do not use corrosive or overly viscous liquids to ensure the normal operation of the equipment.
Regular Inspection: Please regularly inspect the appearance and performance of the pump body. If any abnormalities are found, replace or repair it in a timely manner.
Installation Requirements: Please operate strictly in accordance with the installation instructions in the product manual to ensure the stable installation of the pump body and guarantee the stability and long-term reliability of the equipment.
Safe Operation: During operation, ensure the safety of the operator. Avoid direct contact with the pump body or the motor part to prevent electric shock or scalding accidents.
If you are interested in the XTP0800 brushless oil pump for micro turbojet engine or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-efficiency application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following means:
Telephone: +86-769-85228181
E-mail: chris@x-teamrc.com
