Description

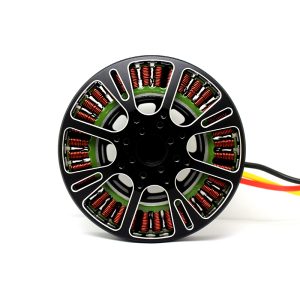

The XTO6110 Brushless motor for Camera Drone and Photo Apparatus is a high-performance brushless DC motor specifically designed for high-load application scenarios such as industrial automation, drones, and robots. The main features of this motor are high torque output, wide voltage adaptability, and a compact and lightweight structure. It can provide stable power support in various complex working environments.

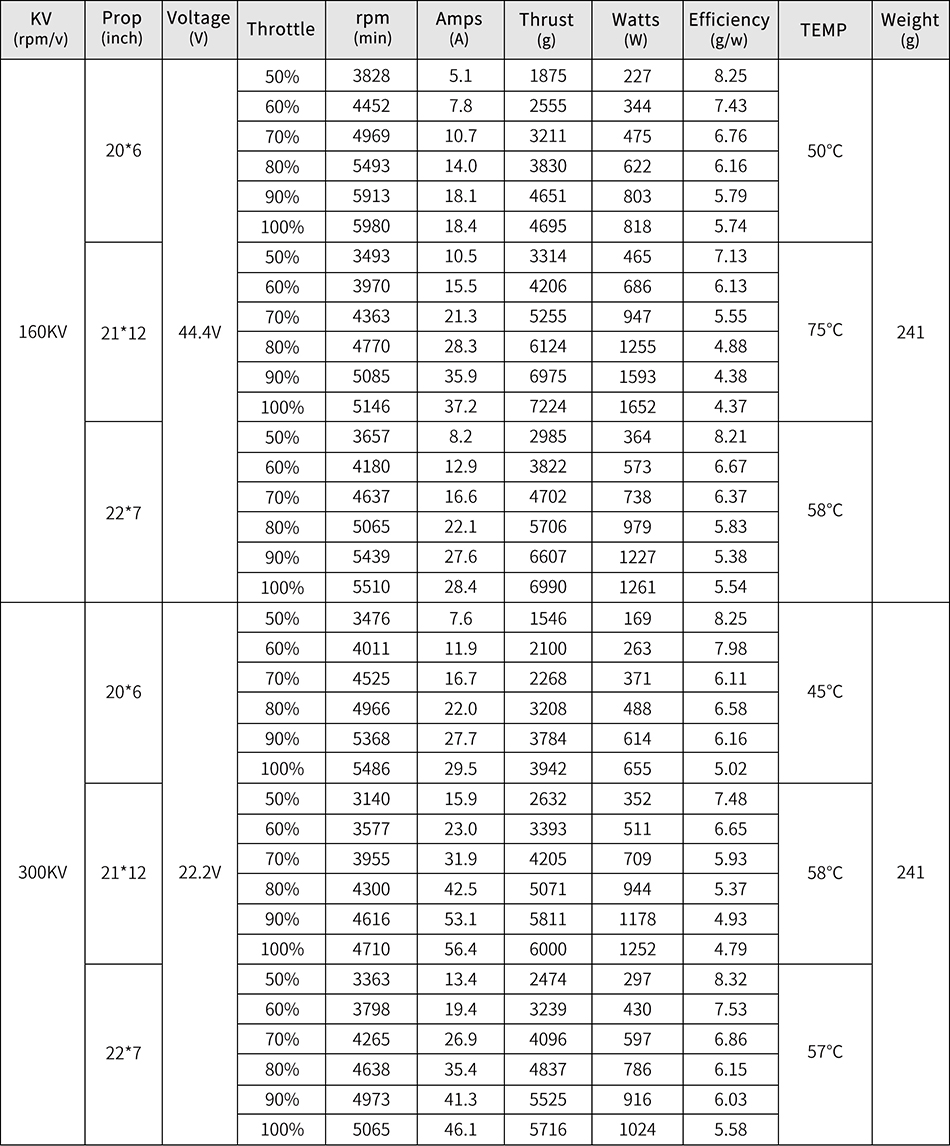

Performance Parameters
KV Value: 160KV (160 revolutions per minute at no load corresponding to each volt of voltage)
Operating Voltage: Supports a wide voltage input range from 22.2V to 44.4V
Throttle: Gradually increases from 1875 to 4695.
Rotational Speed: The minimum rotational speed increases from 227rpm to 818rpm.
Current: Within the voltage range of 50% to 100%, the current gradually decreases from 8.25A to 5.74A.
Maximum Power: 830W
Temperature: Reaches 50°C at 50% load.
Weight (g): The motor weighs 241g.
Maximum Current: 28A
Structural Features
High Permeability Stator: The stator adopts the lamination process of silicon steel sheets with a size of Φ61×10mm. Combined with the configuration of a 24-slot stator and a 28-pole rotor (24N28P), it optimizes the magnetic field distribution, reduces operating noise and vibration, and improves the stability of torque output.
Compact Body Design: The overall size of the motor is Φ68×31mm, and it is lightweight (to be selected according to specific applications), suitable for installation scenarios with limited space, such as drone arms or robotic arm joints.
High Temperature Resistance and Long Life: Using high-temperature resistant enameled wire and insulating coating, the measured temperature under full load is only 45°C~50°C, ensuring the reliability of long-term high-load operation.
Application Fields
Drone Power: Provides strong lifting force for multi-rotor drones, supporting heavy-load flight and complex maneuvers.
Industrial Machinery: Integrated into automated production lines and robotic arm drive units to achieve precise control and high repeatability accuracy.
Robot Joints: Suitable for service robots and AGV cars, meeting the requirements of high torque and rapid response.
Scientific Research Experiments: Used as a power module in scenarios such as wind tunnel tests and fluid dynamics simulations.
Precautions
Electrical Safety: It is prohibited to exceed the nominal maximum voltage (44.4V) and current (28A) to avoid overheating or permanent damage to the windings. When matching the electronic speed controller (ESC), ensure that it supports the motor’s KV value to prevent stalling or control failure.
Heat Dissipation and Maintenance: When operating continuously under full load, it is recommended to install a heat sink or a forced air cooling system to ensure that the motor temperature is lower than 80°C. Regularly clean the dust inside the motor and check whether the insulation layer of the wires is aging to avoid the risk of short circuits.
Installation Specifications: When installing, ensure that the motor shaft is strictly aligned with the load axis to reduce the wear of the bearings caused by eccentric loads. Use low-impedance silicone wires to connect the electronic speed controller to avoid affecting performance due to excessive line loss.
Environmental Adaptability: Avoid using it in wet, dusty, or corrosive environments. If necessary, carry out sealing and protection treatment. Prevent shock and moisture during transportation and storage to prevent damage to the magnets or structure.
If you are interested in the XTO6110 Brushless motor for Camera Drone and Photo Apparatus or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:
