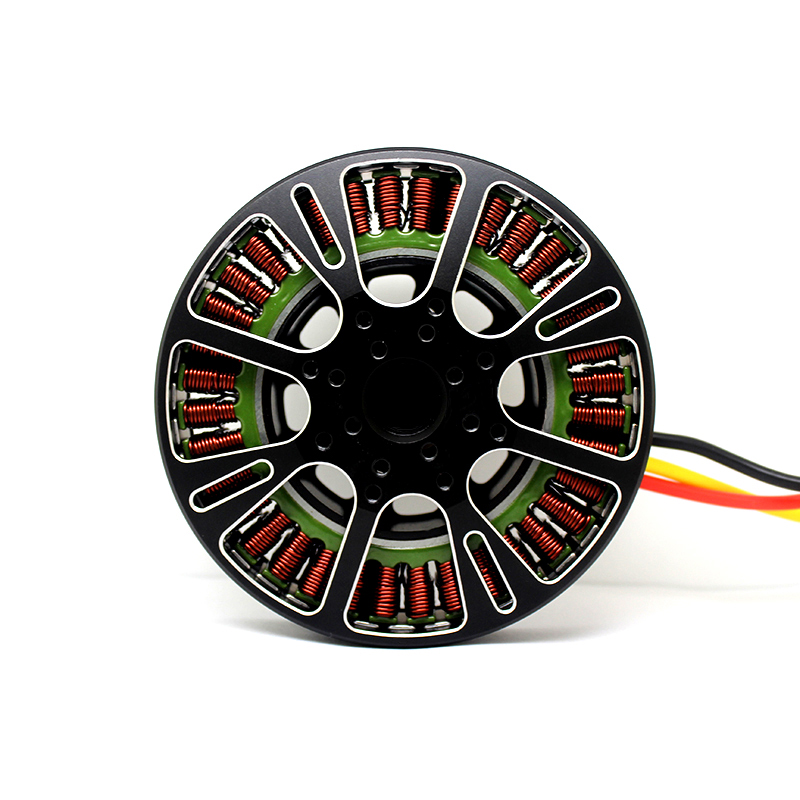

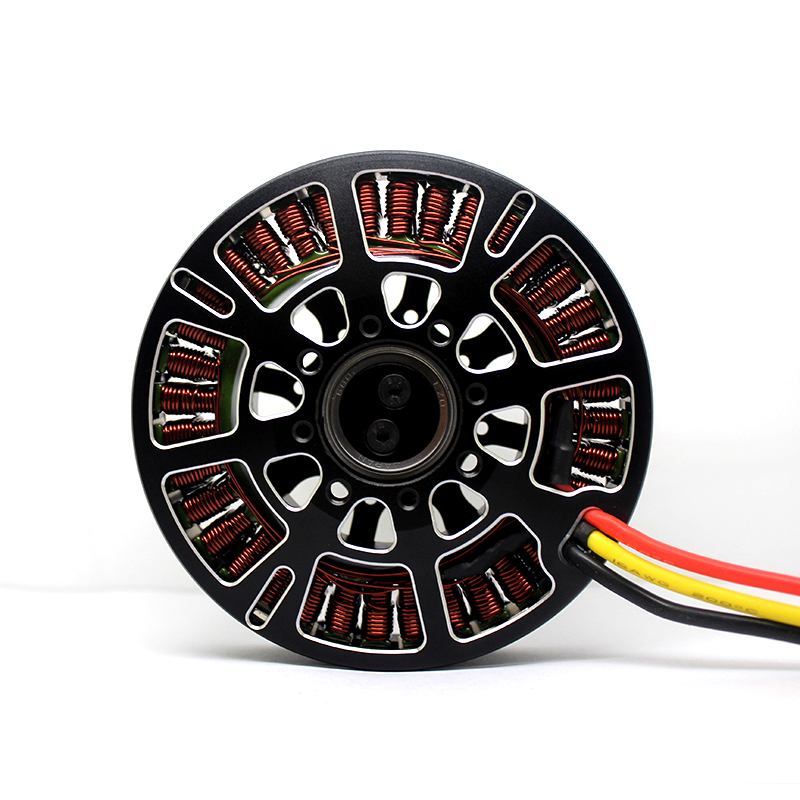

XTO6105 Brushless motor for Camera Drone and Photo Apparatus

Description

The XTO6105 Brushless motor for Camera Drone and Photo Apparatus is a high – efficiency brushless DC motor (BLDC) specifically designed for drone power systems, light industrial equipment, and high – precision robots. Its core advantages lie in its lightweight structure, high dynamic response, and wide voltage adaptability, enabling it to provide stable and efficient power output in medium – to – low load scenarios. With a rotational speed characteristic of 160KV and a maximum power of 720W, this motor is particularly suitable for applications that are sensitive to weight while requiring good performance.

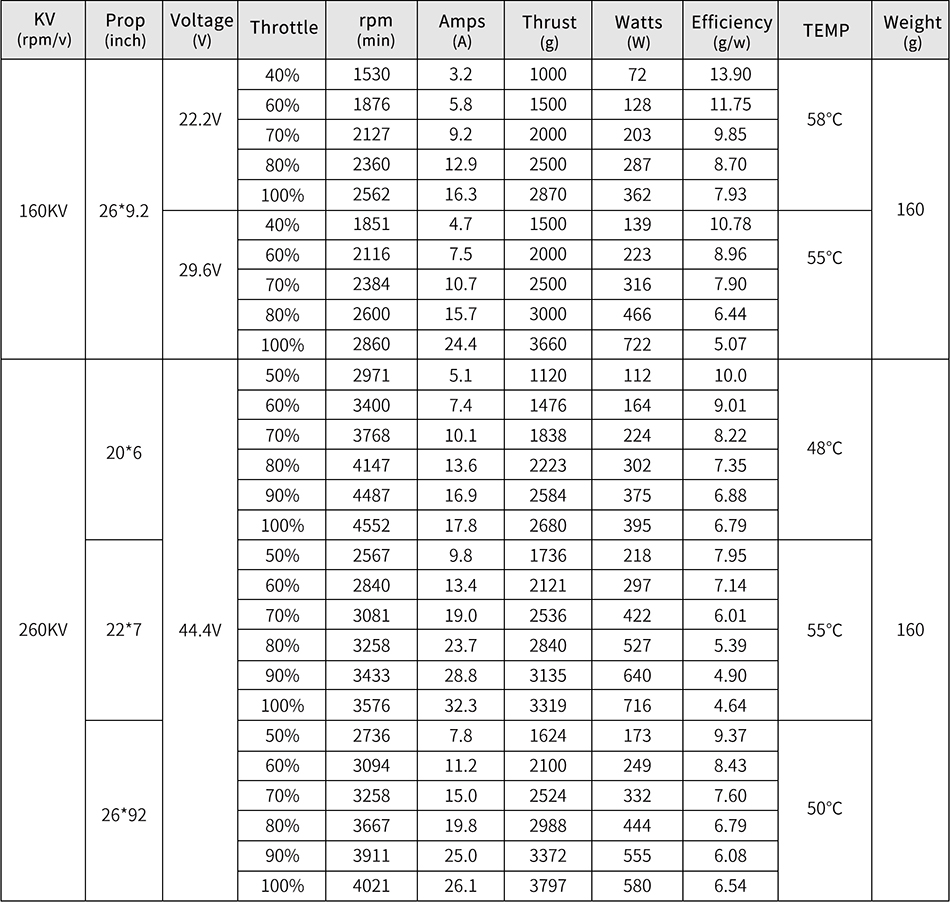

Performance Parameters

Model: XTO6105

KV Value: 160KV (160 revolutions per minute at no – load per volt of voltage)

Maximum Power: 720W

Maximum Current: 14A

Operating Voltage Range: 22.2V – 44.4V

No – load Current: 0.54A

Resistance: 271mΩ

Weight: 160g

Structural Features

Compact Stator Design

Stator Dimensions: Φ61×5mm. It uses a lamination process of high – permeability silicon steel sheets. Combined with the configuration of a 24 – slot stator and a 28 – pole rotor (24N28P), it significantly reduces eddy – current losses and enhances torque density.

Magnetic Circuit Optimization: The magnetic field is evenly distributed, ensuring smooth operation, reducing vibration and noise, and is suitable for precision control scenarios.

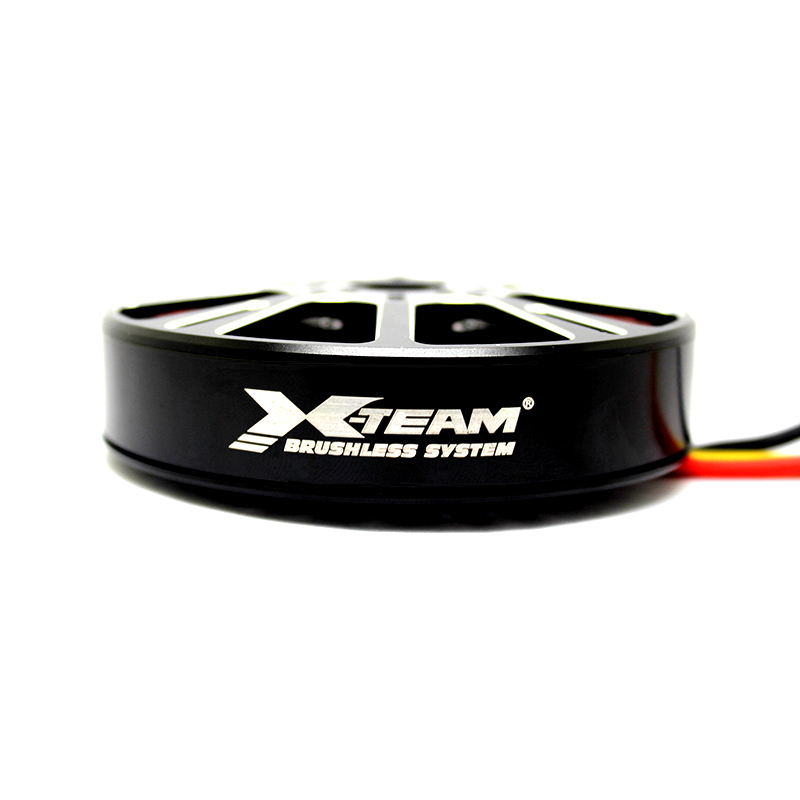

Lightweight Body

Dimensions: Φ68×26mm. It weighs only 160 grams, making it suitable for weight – sensitive devices such as drones and portable robots.

High – efficiency Heat Dissipation and Durability

Temperature Control: The measured temperature range under full load is 48°C – 58°C. It uses high – temperature – resistant enameled wire and insulating coating to ensure long – term stable operation.

Bearing Design: Low – friction bearings reduce energy loss and extend the service life.

Application Fields

Drones: As a power source for drones, it provides stable and efficient thrust.

Model Cars: Suitable for high – performance model cars, offering strong power support.

Other High – performance Applications: Such as robots and automated equipment.

Precautions

Safe Operation: When using the motor, ensure that you follow the safety operation procedures to avoid electric shock or mechanical injury.

Heat Dissipation: Under high – load conditions, the motor may generate relatively high temperatures. Ensure good heat – dissipation conditions to extend the motor’s service life.

Regular Maintenance: Regularly check the motor’s operating status and wear. Replace worn parts in a timely manner to ensure the motor’s stable operation.
