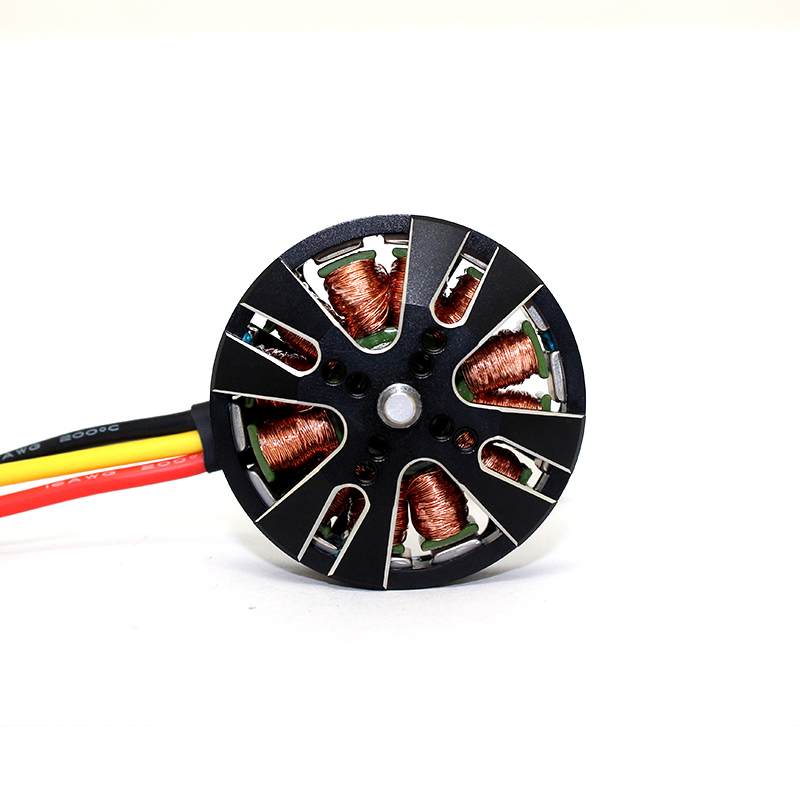

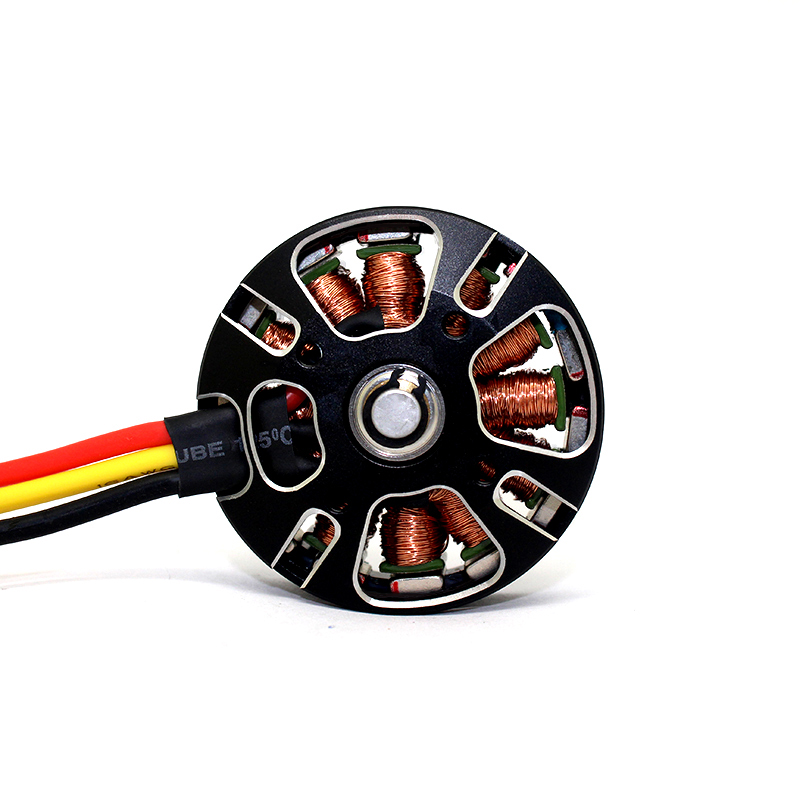

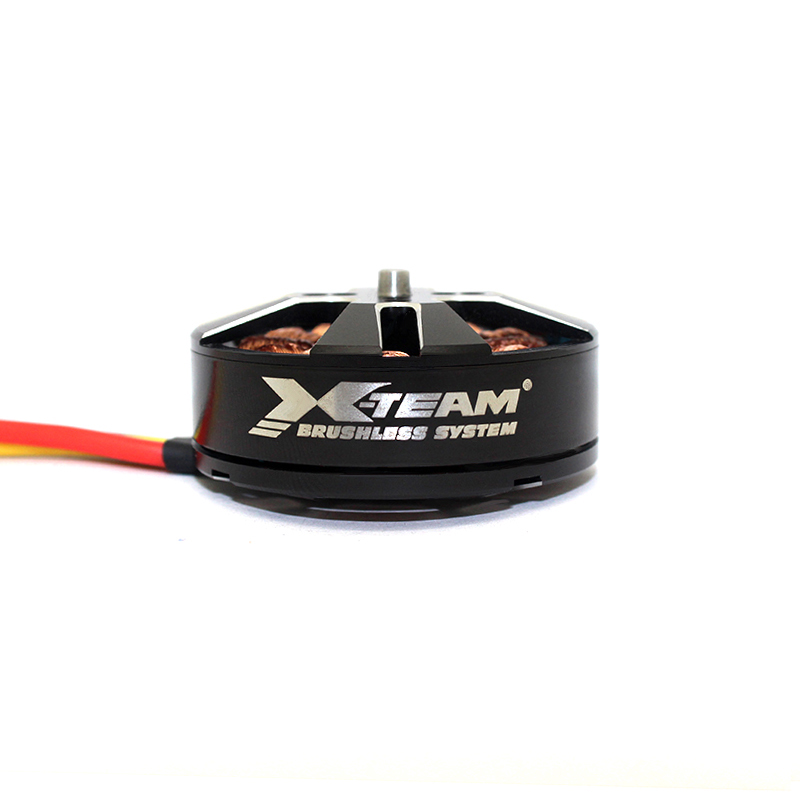

XTO5210 Brushless motor for Camera Drone and Photo Apparatus

Description

The XTO5210 Brushless motor for Camera Drone and Photo Apparatus is a high-power density brushless DC motor (BLDC) specifically designed for high-performance drones, industrial automation equipment, and high-load robots. Its core advantages include high rotational speed characteristics (300KV), high-power output (1100W), and a compact structure, which can meet the power demands of demanding scenarios such as high-speed maneuvers and heavy-duty handling. Through optimized electromagnetic design and heat dissipation solutions, this motor achieves an excellent balance between high efficiency and stability.

Performance Parameters

Model: XTO5210

KV Value: 300KV (300 revolutions per minute at no-load corresponding to each volt of voltage)

Maximum Power: 1100W

Maximum Current: 44A (peak value lasting for 30 seconds)

Operating Voltage Range: 14.8V – 25V

No-load Current: 0.9A (at 10V voltage)

Resistance: 76mΩ

Weight: 200g

Structural Features

High Rotational Speed Stator Design

Stator Dimensions: Φ52×10mm. It adopts a lamination process of high-permeability silicon steel sheets. Combined with a 24-slot stator and a 28-pole rotor (24N28P), it optimizes the magnetic field distribution and improves the torque response speed.

Low-loss Design: The 76mΩ resistance reduces heat generation during operation, making it suitable for long-term high-load operation.

Compact Heat Dissipation Structure

Dimensions: Φ59×25mm. It integrates an efficient heat dissipation channel and, combined with an aluminum alloy casing, quickly conducts out heat.

High Temperature Resistance: The measured maximum temperature is 124°C (under extreme load). High-temperature-resistant enameled wire and insulating materials are used to ensure reliability.

Multi-voltage Adaptability

It supports a wide voltage input range from 14.8V to 25V, flexibly adapting to different battery pack configurations, covering scenarios of long battery life at low voltage and high burst at high voltage.

Application Fields

Drones and Aerial Photographers: The XTO5210 Brushless motor for Camera Drone and Photo Apparatus can provide powerful power support for drones and aerial photographers, ensuring stable flight and high-quality shooting in various complex environments.

Robots and Automated Equipment: The high efficiency and stability of the XTO5210 Brushless motor for Camera Drone and Photo Apparatus make it an ideal choice for robots and automated equipment, capable of driving various precision mechanical components to achieve precise movement.

High-performance Load Equipment: Such as power tools, electric vehicles, etc.

Precautions

Safe Operation: Before use, ensure that the motor and circuit connections are correct. Avoid short circuits or overloading operations to ensure the safety of personnel and equipment.

Temperature Control: The motor will generate heat during operation. Ensure good heat dissipation and avoid overheating caused by long-term high-load operation, which may affect the motor’s service life.

Battery Use: Use batteries with suitable voltage and current. Avoid using damaged or low-power batteries to prevent damage to the motor.

Load Control: Try to avoid situations where the load exceeds the maximum thrust and power that the motor can bear to prevent damage to the motor and ensure the stable operation of the equipment.

If you are interested in the XTO5210 Brushless motor for Camera Drone and Photo Apparatus or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:
