Description
The XTO5208 Brushless motor for Camera Drone and Photo Apparatus is a high-speed and high-power density brushless DC motor (BLDC), specifically designed for racing drones, industrial automation equipment, and robots with high dynamic response. Its core advantages lie in the high rotational speed characteristic of 340KV, the peak power of 880W, and the compact and lightweight structure, enabling it to provide excellent power output in high-speed maneuvering and short-term high-load scenarios. Combined with the optimized electromagnetic design and heat dissipation solutions, this motor achieves an excellent balance between efficiency and reliability.
Performance Parameters
Model: XTO5208
KV Value: 340KV (340 revolutions per minute at no-load corresponding to each volt of voltage)
Maximum Power: 880W
Maximum Current: 35A (peak value lasting for 30 seconds)
Operating Voltage Range: 14.8V – 25V
No-load Current: 0.8A (at 10V voltage)
Resistance: 78mΩ

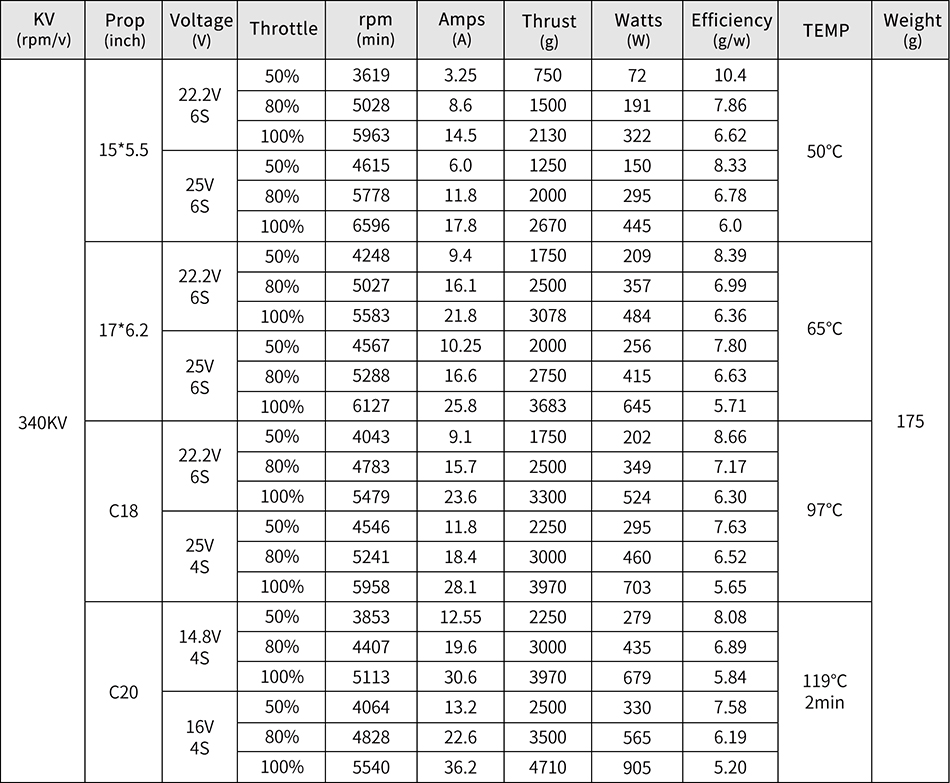

Efficiency Range: 5.20 – 10.40 grams per watt
Weight: Approximately 200g
Structural Features
High Rotational Speed Stator Design
Stator Dimensions: Φ52×8mm. It adopts a lamination process of high-permeability silicon steel sheets. Combined with the configuration of a 24-slot stator and a 28-pole rotor (24N28P), it optimizes the magnetic field distribution and improves the torque response speed.
Low-loss Design: The 78mΩ resistance effectively reduces heat generation during operation, making it suitable for scenarios with frequent start-stop operations and short-term high loads.
Compact and Lightweight Body
Dimensions: Φ59×23mm. It weighs only about 200 grams, making it suitable for drones and portable devices that are sensitive to space and weight.
Optimized Heat Dissipation: The aluminum alloy casing, combined with the internal air duct design, quickly conducts out heat, and the temperature can be controlled under extreme loads as measured.
Multi-voltage Adaptability
It supports a wide voltage input range from 14.8V (4S) to 25V (6S), flexibly adapting to different battery configurations and taking into account both the needs of long battery life and high burst power.
Application Fields
Racing Drones: Provides high-speed power for FPV drones, supporting complex flight maneuvers and short-term bursts.
Industrial Automation: Integrated into high-speed sorting robotic arms and driving units of automated production lines to improve production efficiency.
Service Robots: Suitable for inspection robots and logistics AGVs, enabling fast movement and precise control.
Scientific Research Experiments: Serves as the core driving unit in scenarios such as power system test platforms and high-precision motion simulators.
Precautions
No Overlimit Operation: The voltage should not exceed 25V, and the continuous current should be controlled within 35A (peak value for 30 seconds) to avoid overheating of the windings or demagnetization of the magnets.
ESC Matching: A high-performance electronic speed controller (ESC) that supports 340KV should be selected, and overcurrent protection should be set to prevent stalling or out-of-control situations.
Installation Specifications: When installing, ensure that the motor shaft is strictly coaxial with the load shaft to reduce the wear of the bearings caused by eccentric vibration.
Propeller Matching: Propellers of 15×5.5 or 17×6.2 inches are recommended to balance thrust and efficiency.
Temperature Limit: Avoid long-term operation in environments below -20°C or above 60°C to prevent a decline in material performance.
