XTO4014 Brushless motor for Camera Drone and Photo Apparatus

X-TEAM XTO4014 Brushless motor for Camera Drone and Photo Apparatus

Description

The XTO4014 Brushless motor for Camera Drone and Photo Apparatus is a high-speed and compact brushless DC motor (BLDC), specifically designed for small and medium-sized drones, precision industrial equipment, and robots with high dynamic response. With its high rotational speed characteristic of 330KV, peak power of 750W, and lightweight structure, it can provide efficient power output in high-speed maneuvering and medium-load scenarios. Through optimized electromagnetic design and heat dissipation solutions, it is suitable for application scenarios that are sensitive to space and weight.

XTO4014 Brushless motor for Camera Drone and Photo Apparatus

Performance Parameters

Model: XTO4014

KV Value: 330KV (330 revolutions per minute at no-load corresponding to each volt of voltage)

Maximum Power: 750W

Maximum Current: 30A (peak value lasting for 30 seconds)

Operating Voltage Range: 22.2V – 25V

No-load Current: 0.7A (at 10V voltage)

Resistance: 104mΩ

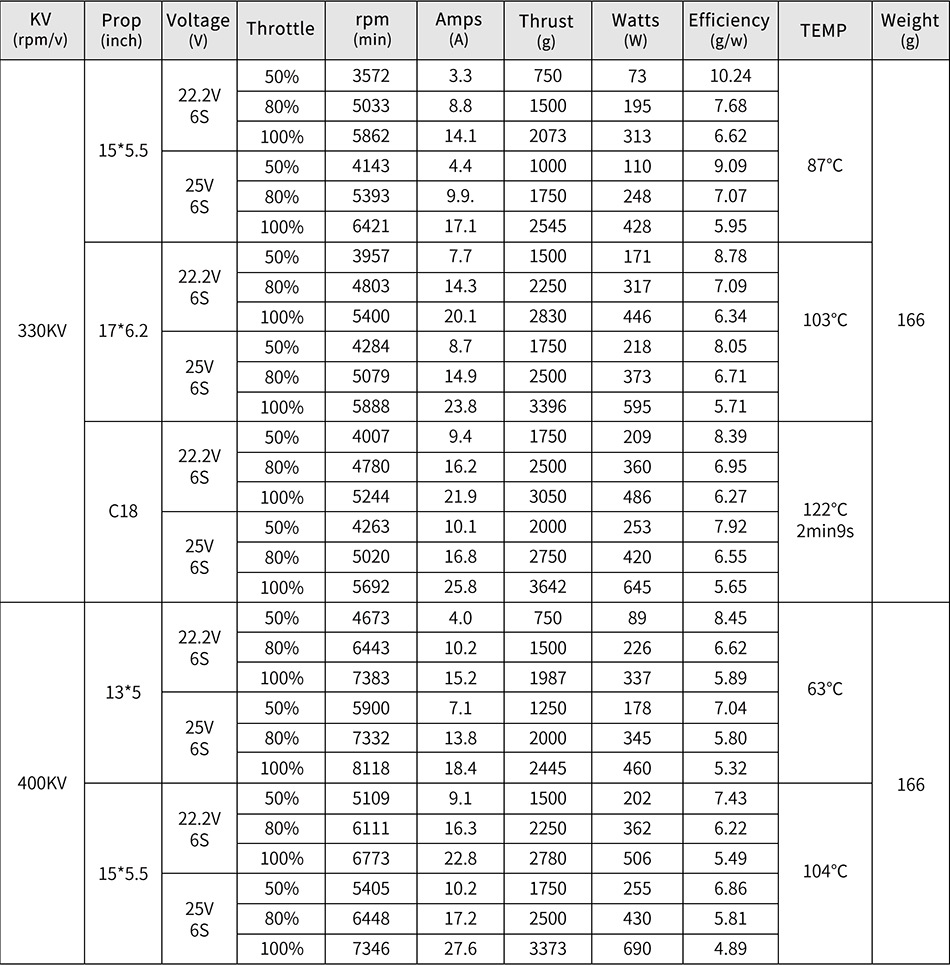

Efficiency Range: 5.32 – 10.24 grams per watt

Dimensions: Φ44.7×30.5mm

Weight: Approximately 166g



Structural Features

High Efficiency: It adopts high-quality magnetic steel and high-precision winding technology to ensure efficient energy conversion.

Low Noise: The advanced design makes the motor operate with extremely low noise, making it suitable for application scenarios that require a quiet environment.

High Durability: The internal components of the motor are made of high-quality materials to ensure stability and durability during long-term use.

Compact and Lightweight: It has a small size and light weight, making it easy to install and use in various devices and models.

XTO4014 Brushless motor for Camera Drone and Photo Apparatus

Application Fields

Robots: Suitable for various robot joints and motion control systems.

Drones: Provides strong power and an efficient flying experience.

Power Tools: Its high performance and low noise characteristics make it the power core of power tools.

RC Models: Suitable for various remote control model cars, model boats, etc.



Precautions

Temperature Control: Ensure that the motor operates within an appropriate temperature range to avoid performance degradation or damage caused by excessive temperature. According to the data sheet, the operating temperatures under different voltages and loads should not exceed 87°C, 63°C, and 104°C.

Voltage and Current: Use the motor strictly according to the recommended operating voltage and current range, and avoid overvoltage or undervoltage operations to prevent damage to the motor or potential safety hazards.

Load Control: Avoid using the motor at or near the maximum load for a long time to ensure the service life and reliability of the motor.

Heat Dissipation: Ensure that there are good heat dissipation conditions around the motor, and avoid using it in enclosed or poorly ventilated environments to prevent overheating.

Connection Check: Before installation and use, check whether the connections between the motor and various components are secure to avoid damage or accidents caused by poor contact.

Waterproof and Dustproof: Take necessary waterproof and dustproof measures according to the application environment to prevent water or dust from entering the motor and affecting its normal operation.



If you are interested in the XTO4014 Brushless motor for Camera Drone and Photo Apparatus or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com

Additional information

Product model

XTO4014

KV

330KV

Stator dimension(DxL)

Φ40x14mm

Configuration

18N24P

No Load Current

0.7A (10V)

Resistance

104mΩ

Size

Φ44.7×30.5mm

Max Current

30A (30S)

Max Power

750W
