XTO4004 Brushless motor for Camera Drone and Photo Apparatus

Description

The XTO4004 Brushless motor for Camera Drone and Photo Apparatus is a lightweight and efficient brushless DC motor, specifically designed for small drones, miniature robots, and precision equipment. Its design objective is to provide lower power consumption and faster response speed, especially suitable for application scenarios with strict requirements for size and weight. Through the optimization of the electromagnetic design and the heat dissipation system, the XTO4004 Brushless motor for Camera Drone and Photo Apparatus can maintain excellent performance under light loads, and is particularly suitable for tasks that require long endurance and precise control. It not only has a lightweight appearance but also can exert strong power in the low-power mode, ensuring that the equipment can operate for a longer time and respond quickly to operations.

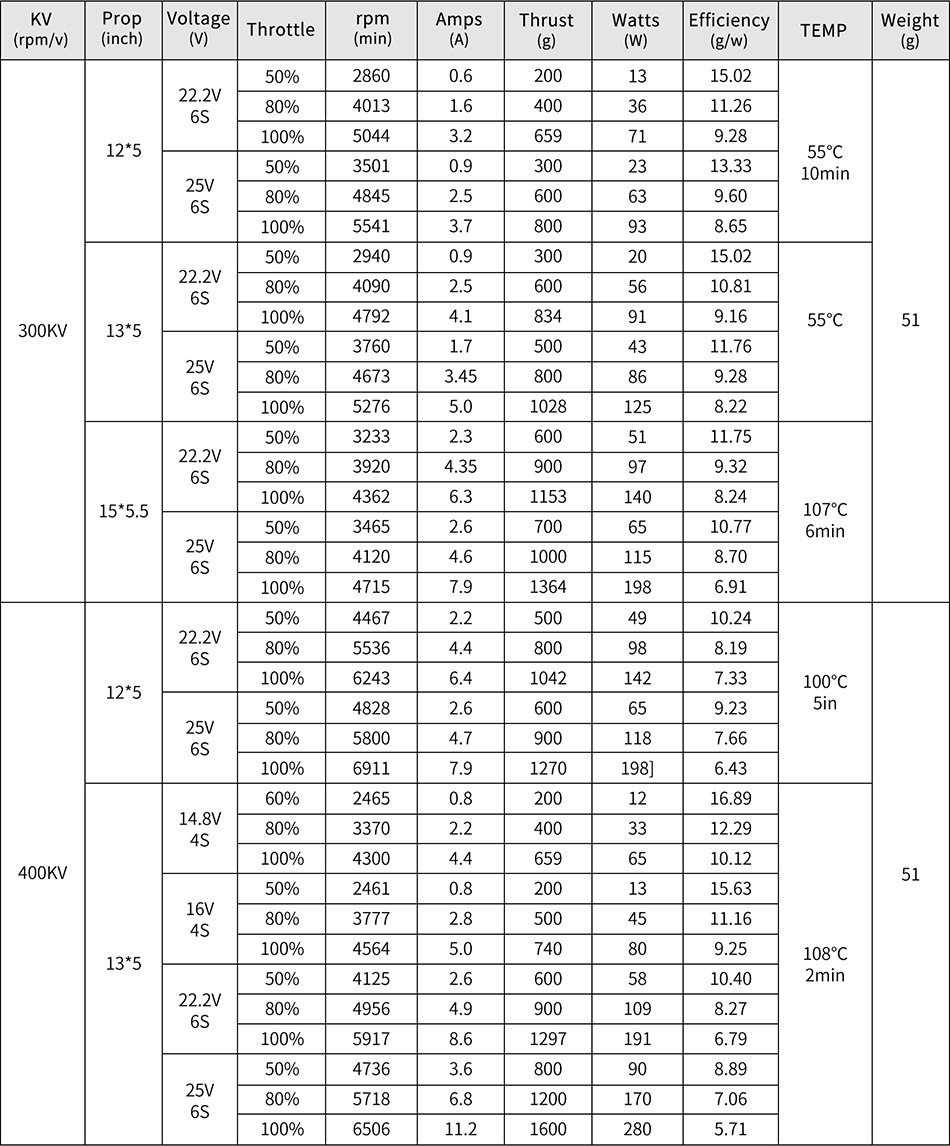

Performance Parameters

Model: XTO4004

KV Value: 300KV (300 revolutions per minute at no-load corresponding to each volt of voltage)

Maximum Power: 250W

Maximum Current: 10A (peak value lasting for 60 seconds)

Operating Voltage Range: 14.8V – 25V

No-load Current: 0.2A (at 10V voltage)

Resistance: 448mΩ

Efficiency Range: 5.71 – 16.89 grams per watt

Dimensions: Φ43.6×16mm

Weight: Approximately 51g

Structural Features

Advanced Brushless DC Technology: Adopting a brushless DC design, it reduces frictional losses and improves the efficiency and lifespan of the motor.

Optimized Heat Dissipation System: Through the optimized heat dissipation structure and materials, it ensures the stability and reliability of the motor in high-temperature working environments.

Precise Manufacturing Process: High-precision processing equipment and techniques are used to ensure the precision and durability of the motor.

Flexible Configuration Options: It provides various configuration options for voltage, rotational speed, power, and torque to meet the needs of different customers.

Application Fields

Miniature Drones: Provides lightweight power for aerial photography drones and racing drones, supporting high-speed flight and stable hovering.

Miniature Robots: Integrated into inspection robots and medical miniature robotic arms to achieve precise control and low-noise operation.

Precision Equipment: Used as a high-precision drive module for optical instruments and laboratory automation equipment.

Education and Scientific Research: Serves as a core component for the research and development of miniature aircraft and power system teaching experiments.

Precautions

Read the Instruction Manual: Before operation, be sure to carefully read the product instruction manual to understand the performance parameters, operation methods, and precautions of the motor.

Regular Inspection: Regularly inspect and maintain the motor to ensure its normal operation and extend its service life.

Safe Operation: When operating the motor, follow the safe operation procedures to avoid potential safety hazards such as electric shock and short circuits.

Operating Environment: Ensure that the motor operates in a dry, well-ventilated environment without corrosive gases to prevent damage to the motor caused by harsh environments.

Load Matching: Ensure that the load of the motor matches its performance parameters to avoid damage to the motor caused by overloading.
