XTO3508 Brushless motor for Camera Drone and Photo Apparatus

X-TEAM XTO3508 Brushless motor for Camera Drone and Photo Apparatus

Description

The XTO3508 Brushless motor for Camera Drone and Photo Apparatus is a brushless DC motor specifically designed for small and medium-sized drones and industrial automation equipment. It has a very high rotational speed, reaching up to 380KV at maximum, which means it can provide strong power in situations of rapid maneuvering and medium loads. With a peak power of 400W, the motor is small in size and light in weight, making it highly suitable for applications with strict requirements for size and weight.

XTO3508 Brushless motor for Camera Drone and Photo Apparatus

Performance Parameters

Model: XTO3508

KV Value: 380KV (380 revolutions per minute at no-load corresponding to each volt of voltage)

Maximum Power: 400W

Maximum Current: 16A (peak value lasting for 30 seconds)

Operating Voltage Range: 14.8V – 22.2V

No-load Current: 0.3A (at 10V voltage)

Resistance: 257mΩ

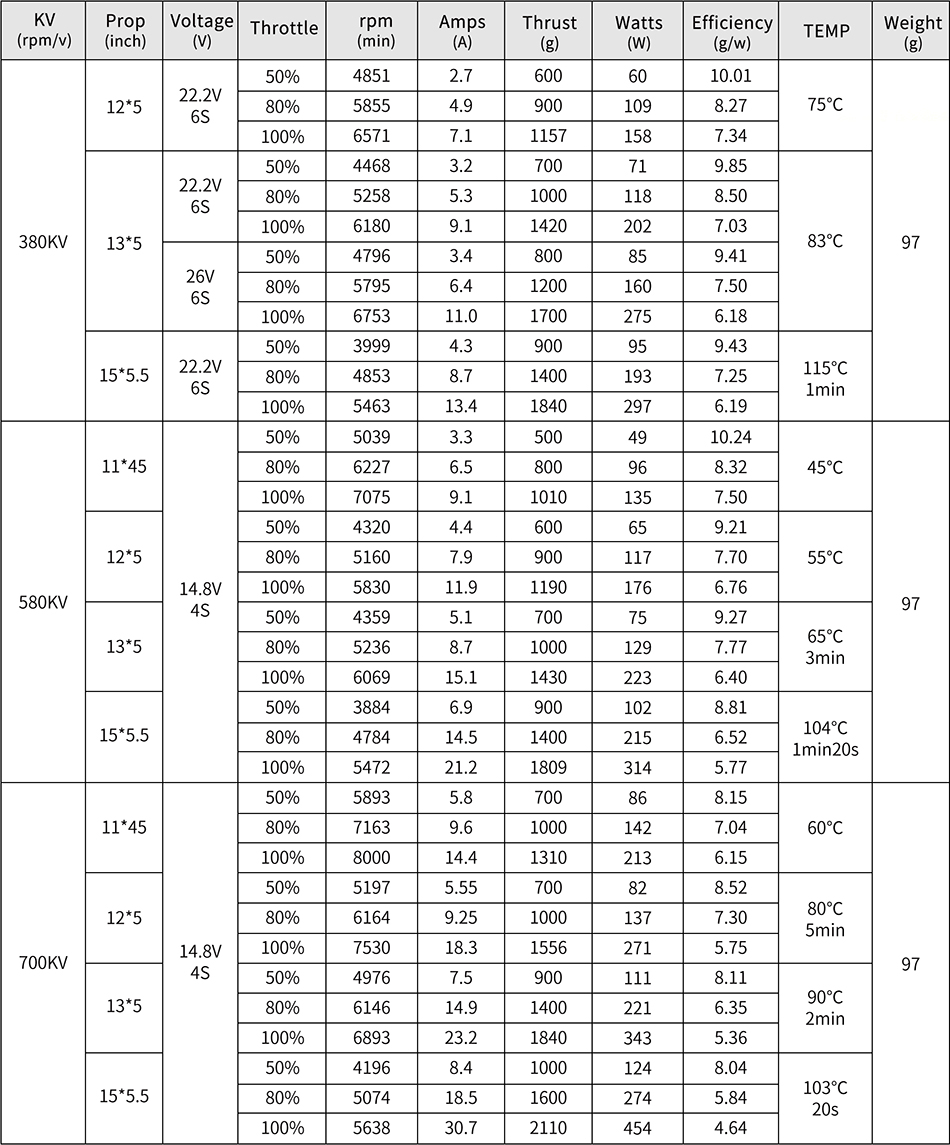

Efficiency Range: 4.64 – 10.24 grams per watt

Dimensions: Φ41.8×20mm

Weight: Approximately 97g



Structural Features

High-efficiency Design: Adopting an advanced magnetic circuit design and an optimized coil layout, it improves the energy conversion efficiency of the motor.

Compact Structure: With a small size and lightweight design, it is easy to integrate into various small and miniature devices.

High Torque Output: It can provide strong torque even at low speeds, meeting the needs of various heavy-load applications.

Low-noise Operation: Thanks to the optimized mechanical structure and electromagnetic design, the motor generates extremely low noise during operation.

XTO3508 Brushless motor for Camera Drone and Photo Apparatus

Application Fields

The XTO3508 Brushless motor for Camera Drone and Photo Apparatus is widely used in various fields that require high efficiency and high torque output, such as drones, model aircraft, robots, power tools, automotive parts, etc.



Precautions

Safe Operation: When using the XTO3508 Brushless motor for Camera Drone and Photo Apparatus, ensure that all relevant safety operation procedures are followed to prevent dangerous situations such as electric shock and short circuits.

Correct Wiring: Please correctly connect the power line, signal line, and ground line of the motor according to the wiring diagram in the product manual to avoid damage to the motor or performance degradation caused by incorrect wiring.

Heat Dissipation Treatment: During long-term or high-load operation, the motor may generate a relatively high temperature. Ensure that there is enough heat dissipation space around the motor and avoid installing the motor in a closed or high-temperature environment.

Regular Inspection: Regularly check the operating status and performance parameters of the motor, such as current, voltage, temperature, etc., to ensure that the motor is always in the best working condition.

Professional Maintenance: Have professionals operate it to avoid damage to the motor or safety accidents caused by improper operation.



If you are interested in the XTO3508 Brushless motor for Camera Drone and Photo Apparatus or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com

Additional information

Product model

XTO3508

KV

380KV

Stator dimension(DxL)

Φ35x8mm

Configuration

12N14P

No Load Current

0.3A (10V)

Resistance

257mΩ

Size

Φ41.8x20mm

Max Current

16A (30S)

Max Power

400W
