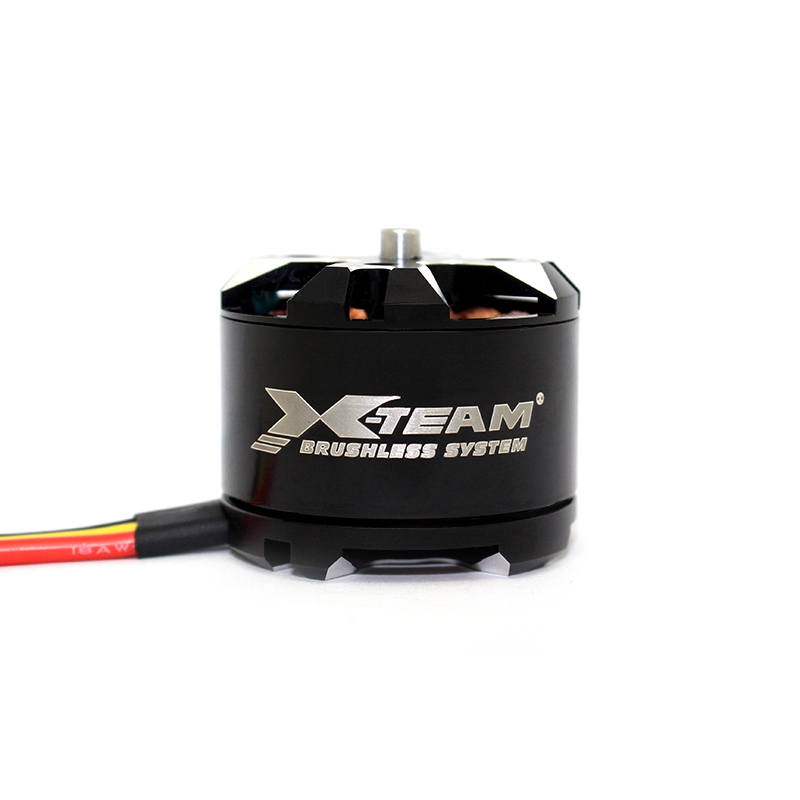

XTO2806 Brushless motor for Camera Drone and Photo Apparatus

X-TEAM XTO2806 Brushless motor for Camera Drone and Photo Apparatus

Description

The XTO2806 Brushless motor for Camera Drone and Photo Apparatus is an ultra-lightweight and high-energy-efficiency brushless DC motor (BLDC), specifically designed for miniature drones, portable robots, and low-power precision equipment. Its core advantages lie in the high rotational speed characteristic of 400KV, the peak power of 250W, and the extremely compact structure, enabling it to provide efficient power output in small and medium-sized load scenarios.

XTO2806 Brushless motor for Camera Drone and Photo Apparatus

Performance Parameters

Model: XTO2806

KV Value: 400KV (400 revolutions per minute at no-load corresponding to each volt of voltage)

Maximum Power: 250W

Maximum Current: 10A (peak value lasting for 180 seconds)

Operating Voltage Range: 14.8V – 25V

No-load Current: 0.3A (at 10V voltage)

Resistance: 610mΩ

Efficiency Range: 5.42 – 16.89 grams per watt

Dimensions: Φ35×18mm

Weight: Approximately 47g



Structural Features

High Efficiency: The design of high rotational speed and low resistance allows the XTO2806 Brushless motor for Camera Drone and Photo Apparatus to maintain good performance even with relatively low energy consumption.

Low Noise: It is suitable for occasions that require a quiet operating environment, such as drones and power tools.

Long Service Life: High-quality materials are used, and it has excellent wear resistance, ensuring reliability for long-term use.

XTO2806 Brushless motor for Camera Drone and Photo Apparatus

Application Fields

Aerospace: The XTO2806 Brushless motor for Camera Drone and Photo Apparatus is widely used in the aerospace field, such as in drones and model aircraft. Its characteristics of high efficiency and low weight enable it to provide strong power and excellent flight performance for these devices.

Power Tools: In the field of power tools, this motor can be applied to tools such as electric screwdrivers and electric drills, providing strong power and long operating time.

Robotics and Automation: The XTO2806 Brushless motor for Camera Drone and Photo Apparatus is also suitable for various robots and automated equipment, such as robotic vacuum cleaners and industrial robotic arms, providing precise power control for them.

Electric Transportation Vehicles: In the field of electric transportation vehicles, such as electric scooters and lightweight electric vehicles.

Precautions

Safe Operation: Before use, ensure that the motor and related equipment have been fully inspected, and avoid using a damaged motor. During operation, keep your fingers away from the rotating parts to prevent injury.

Voltage and Current: Use the motor strictly within the recommended voltage and current range, and avoid overvoltage or undervoltage operations to prevent damage to the motor or potential safety hazards.

Temperature Control: The motor will generate heat during operation. Please pay attention to controlling the ambient temperature and avoid continuous operation for a long time to prevent the motor from overheating.

Load Control: Avoid running the motor at or near the maximum load for a long time to prevent damage to the motor or shortening of its service life.

Storage Environment: Store the motor in a dry and well-ventilated environment to prevent the motor from being affected by moisture or high temperatures.

Regular Maintenance: Regularly maintain the motor and check for any loose or worn components.



If you are interested in the XTO2806 Brushless motor for Camera Drone and Photo Apparatus or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com
