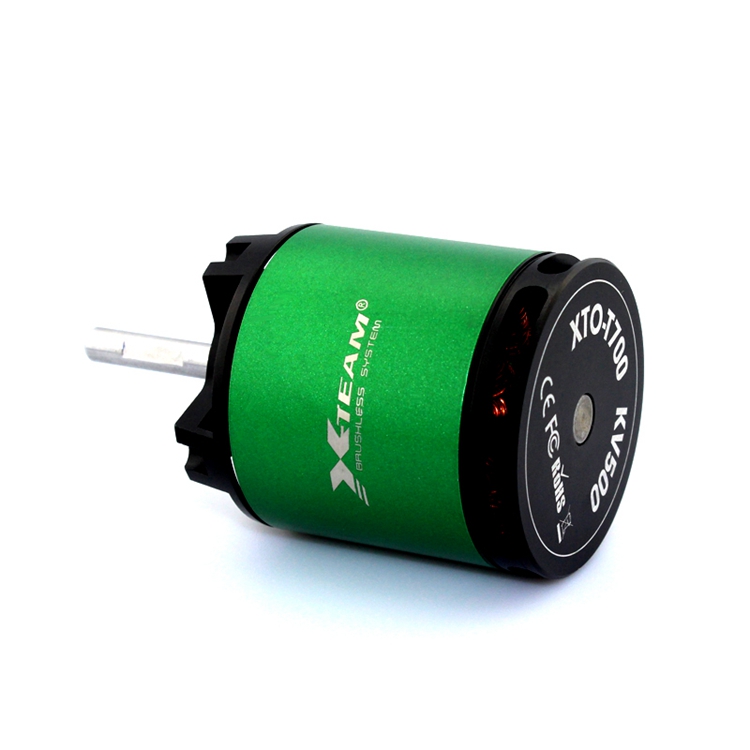

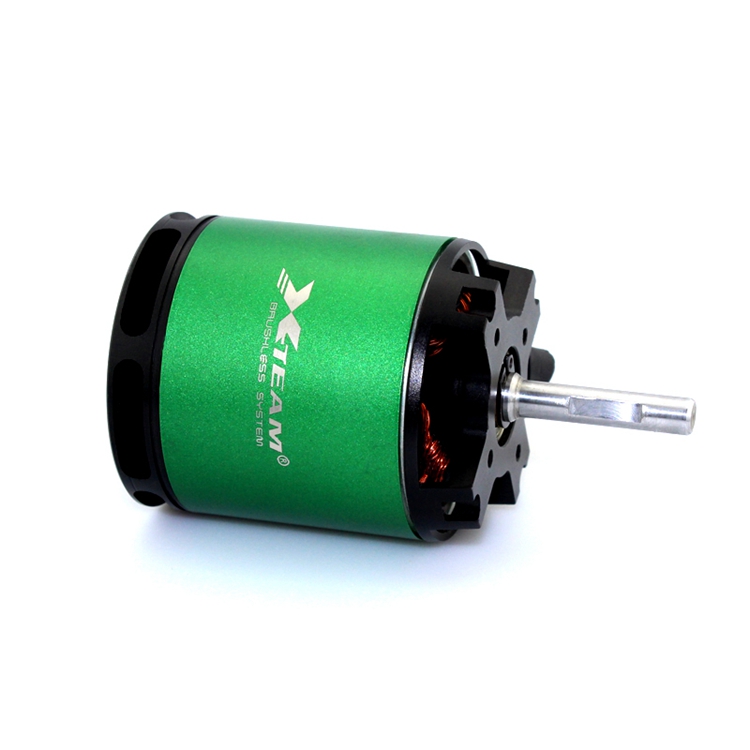

XTO-T700 Outrunner Brushless Motor for 700 Helicopter Model

Description

The XTO-T700 Outrunner Brushless Motor for 700 Helicopter Model integrates advanced technology and exquisite craftsmanship, aiming to provide users with excellent performance and reliable quality. Whether it is an application scenario that requires high rotational speed and high power, or a design requirement that pursues a compact structure and lightweight, the XTO-T700 Outrunner Brushless Motor for 700 Helicopter Model can meet your expectations.

Performance Parameters

Model: XTO-1700

KV Value: 500KV

Voltage Range: 10S~12S LiPo

No-load Current: 1.6A

Number of Poles: 10-pole outrunner design

Maximum Power: 2300W

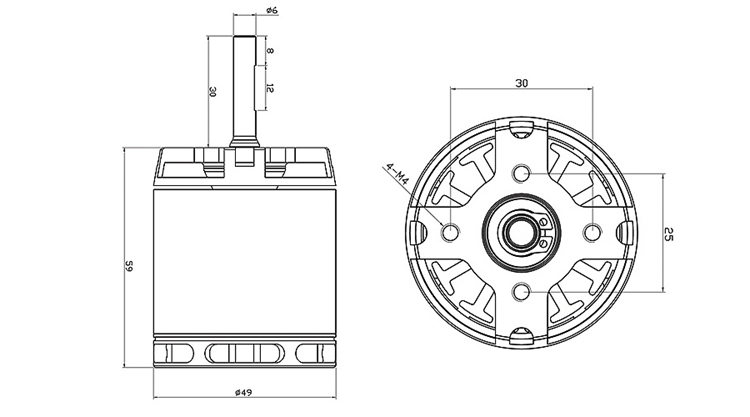

Dimensions: Φ49.8×59mm

Shaft Diameter and Length: Φ6×30mm

Weight: 416g

Resistance (Rm): 0.0024Ω

Structural Features

10-pole Outrunner Design: Adopting a layout of high-density neodymium magnets, combined with a slotted outrunner structure, it significantly improves torque output and heat dissipation efficiency, and is suitable for continuous operation under high load.

Reinforced Internal Shaft Core Design: Provides ultra-high mechanical strength to support the high torque requirements of the helicopter transmission system.

External Keyway Design: Ensures that the gear or coupling is firmly installed to prevent slipping or displacement.

Innovative Cooling System: Achieves efficient heat dissipation by optimizing the air duct of the motor housing and the thermal conductivity of the material.

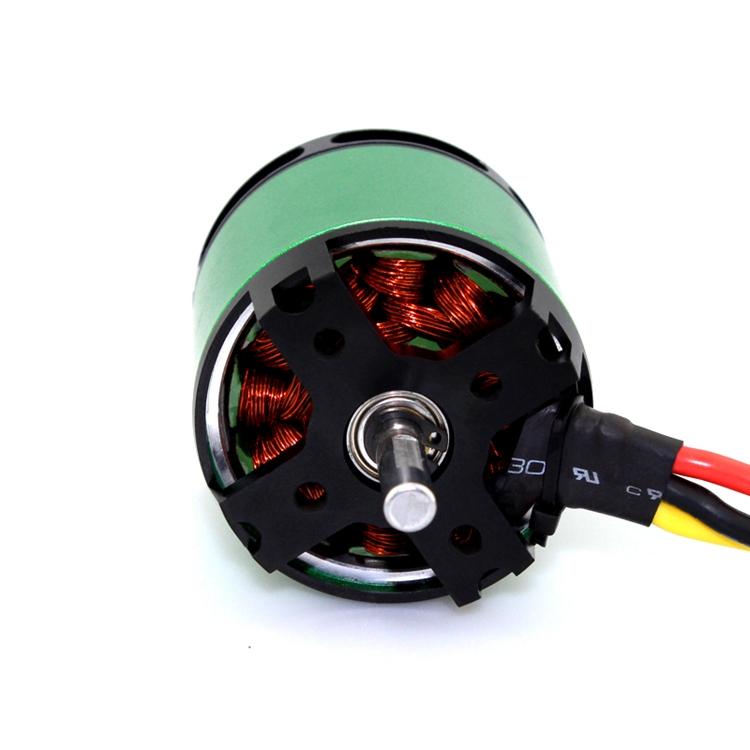

Multi-mounting Interface Adaptation: Supports multiple mounting methods (such as 25mm + 30mm 4×M4 screw holes) to adapt to the transmission system requirements of different helicopters or large models.

Lightweight and High-strength Material: The housing is made of high-strength aluminum alloy, balancing lightweight (416g) and structural rigidity, and is suitable for high-dynamic scenarios.

Application Areas

Large Helicopter Models: Compatible with 700-class or above helicopters, providing strong power support for complex flight maneuvers (such as 3D stunts).

Industrial-grade Unmanned Aerial Vehicles (UAVs): Suitable for UAVs that require high load capacity, such as agricultural plant protection and logistics transportation.

Racing Model Boats and Cars: The high torque output is suitable for large remote control boats or model cars, supporting high-speed acceleration and stable cruising.

Experimental Power Systems: Suitable for high-power motor performance test platforms in the fields of scientific research or education.

Precautions

Safe Use: Ensure that the power supply voltage matches the rated voltage of the motor to avoid damage to the motor or potential safety accidents.

Proper Installation: Follow the installation steps and precautions in the product manual. Ensure that the motor is firmly and reliably installed.

Maintenance: Regular maintenance of the motor can extend its service life and improve its performance.

Fault Handling: If the motor fails or shows abnormal conditions during use, stop using it immediately and contact professional maintenance personnel for inspection and repair. Do not disassemble or repair the motor privately to avoid causing greater damage or potential safety hazards.

If you are interested in the XTO-T700 Outrunner Brushless Motor for 700 Helicopter Model or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Our Plenty of innovative and detailed solutions plus carefully selected materials guarantee for lots of torque and perfect cooling. many mounting opportunities for almost every helicopter application.The shaft inside the motor case provides optimal strength, the external part of the shaft with a key path for secure mounting of drive pinions. The X-team motor will excite you, Improve your flying style and go to the limit.
