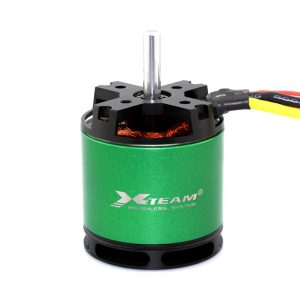

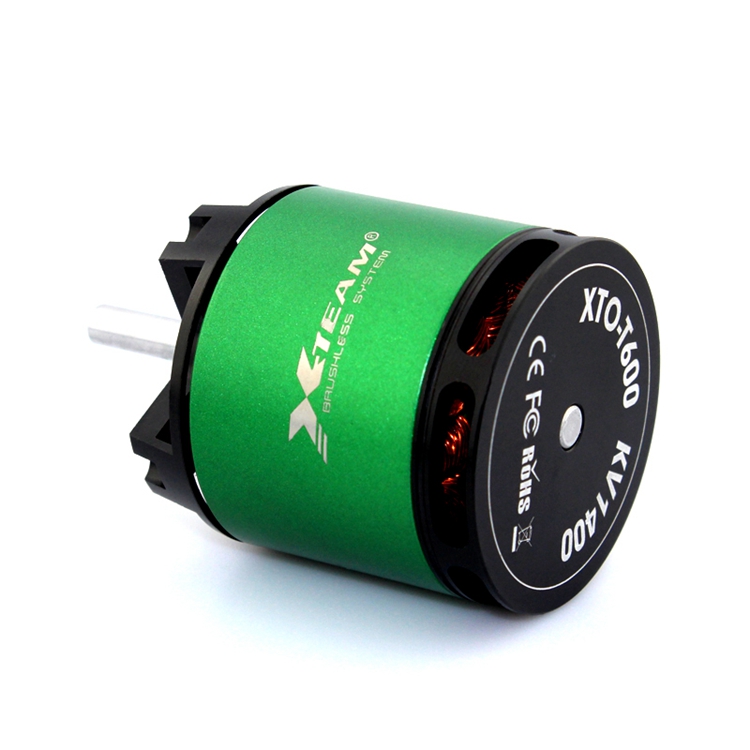

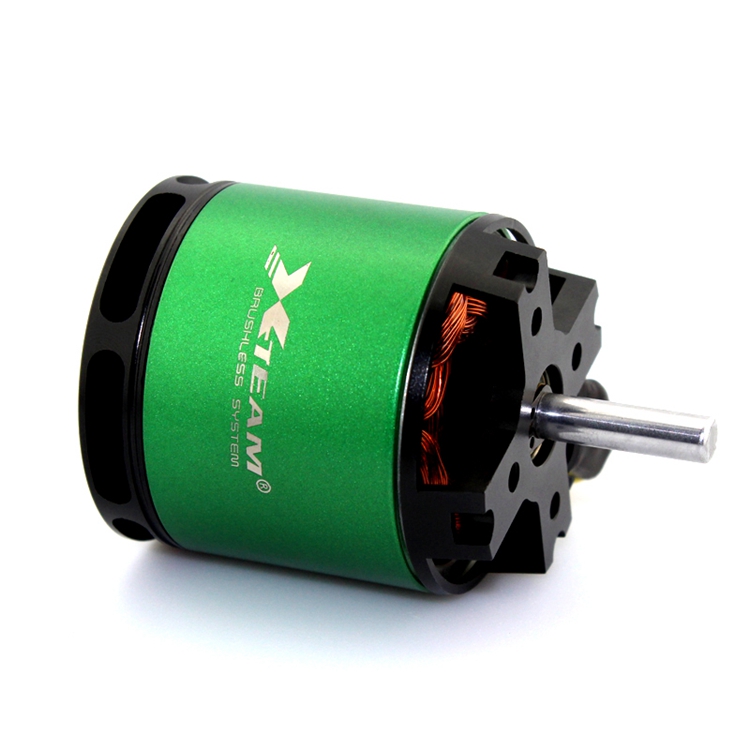

XTO-T600 Outrunner Brushless Motor for 600 Helicopter Model

Description

The XTO-T600 Outrunner Brushless Motor for 600 Helicopter Model has become the ideal power core for high-dynamic models due to its high rotational speed, efficient heat dissipation, and multi-scenario adaptation capabilities. The XTO-T600 Outrunner Brushless Motor for 600 Helicopter Model supports the high-speed sprints of helicopter acrobatic flights and racing models, providing reliable power support for these applications.

Performance Parameters

Model: XTO-1600

KV Value: 1400

Voltage Range: 10S ~12S LiPo

No-load Current: 5.0A

Number of Poles: 8-pole outrunner design

Maximum Power: 2000W

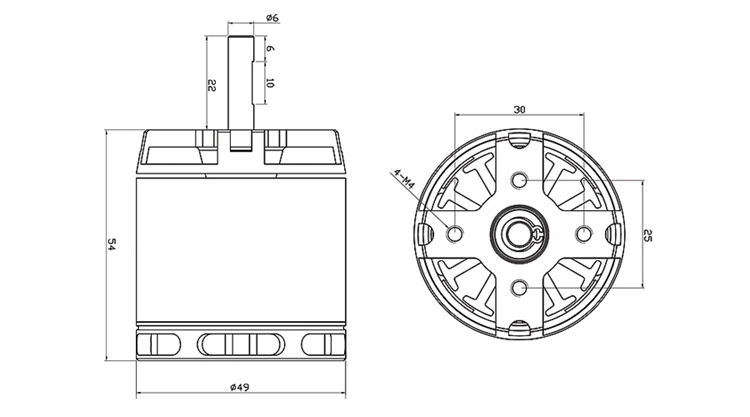

Dimensions: Φ49.8×54mm

Shaft Diameter and Length: Φ6×22mm

Weight: 335g

Resistance (Rm): 0.0079Ω

Structural Features

8-pole Outrunner Design: Adopting a layout of high-density neodymium magnets, combined with a slotted outrunner structure, it significantly improves the torque output and heat dissipation efficiency at high rotational speeds, making it suitable for dynamic flight scenarios.

Reinforced Internal Shaft Core Design: Provides ultra-high mechanical strength to support the high load requirements of helicopters or high-speed models.

External Keyway Design: Ensures that the gear or coupling is firmly installed to prevent slipping or displacement during high-speed operation.

Efficient Heat Dissipation System: By optimizing the air duct of the housing and the heat-conducting materials, rapid heat dissipation is achieved, ensuring the stable operation of the motor at a full power of 2000W.

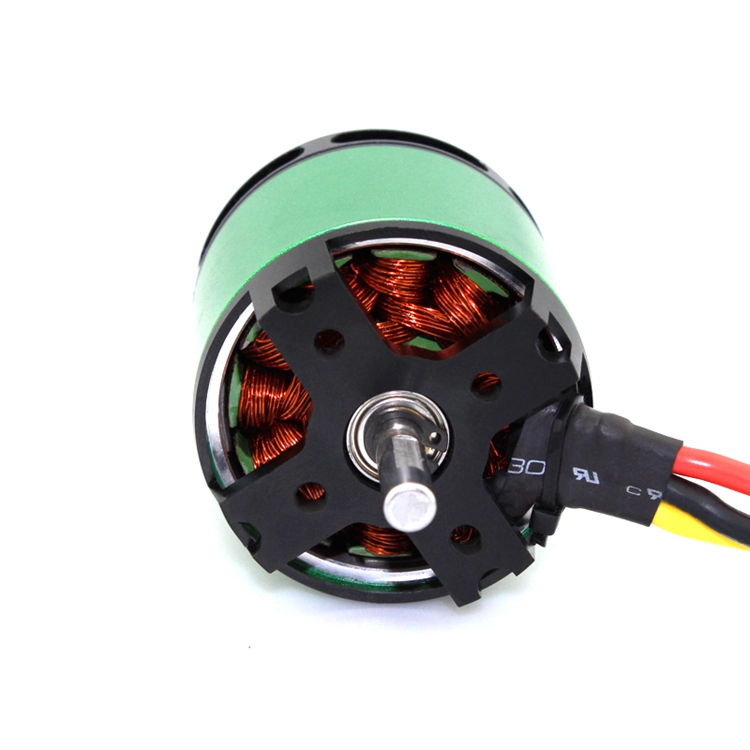

Multi-mounting Interface Adaptation: Supports installation with 4×M4 screws at a spacing of 25mm + 30mm, adapting to the transmission systems of various helicopters or large models.

Lightweight and High-strength Material: The housing is made of high-strength aluminum alloy, weighing only 335g, balancing lightweight and structural rigidity, and is suitable for high-dynamic scenarios.

Application Areas

Large Helicopter Models: Compatible with 600-class and above helicopters, supporting 3D acrobatic flights and high-speed maneuvers.

Industrial-grade Unmanned Aerial Vehicles (UAVs): Suitable for agricultural plant protection and logistics transportation UAVs that require high power output.

Racing Model Boats and Cars: The high rotational speed characteristic is suitable for high-speed model boats or cars, providing explosive acceleration performance.

Experimental Power Platforms: Used for the performance testing and verification of high rotational speed motors in scientific research or educational fields.

Precautions

Safety First: When operating the motor, please ensure that all safety regulations and operating procedures are followed to avoid potential dangers and injuries.

Proper Charging: Please be sure to use the correct charger and charging time to ensure the performance and lifespan of the motor.

Maintenance: Regularly maintain and service the motor, such as cleaning dust and checking the tightness of screws, etc., to ensure its long-term stable operation.

Application Matching: Please select the appropriate motor model and configuration according to your application requirements to ensure the best performance and effect.

If you are interested in the XTO-T600 Outrunner Brushless Motor for 600 Helicopter Model or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Our Plenty of innovative and detailed solutions plus carefully selected materials guarantee for lots of torque and perfect cooling. many mounting opportunities for almost every helicopter application.The shaft inside the motor case provides optimal strength, the external part of the shaft with a key path for secure mounting of drive pinions. The X-team motor will excite you, Improve your flying style and go to the limit.
