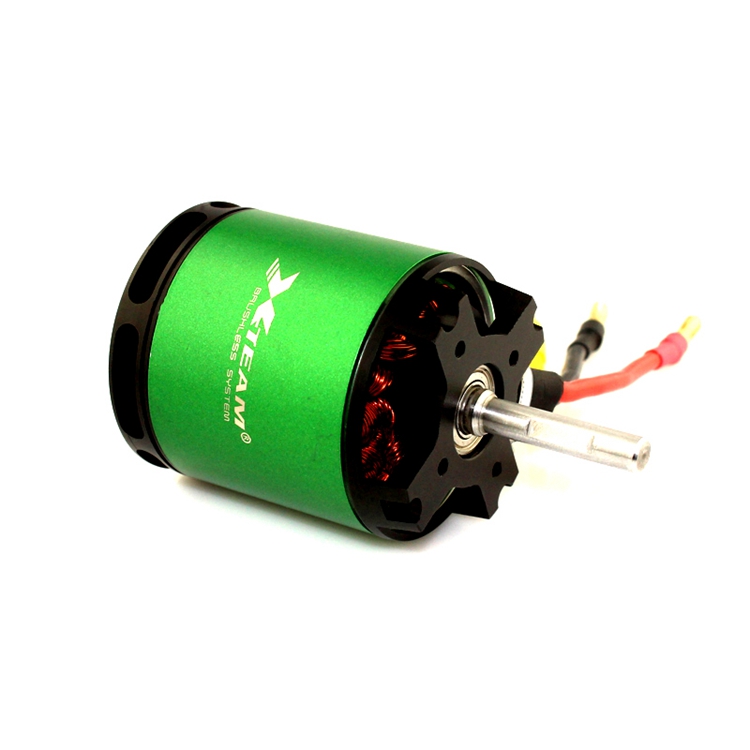

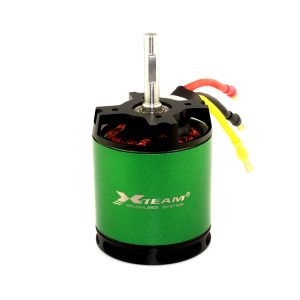

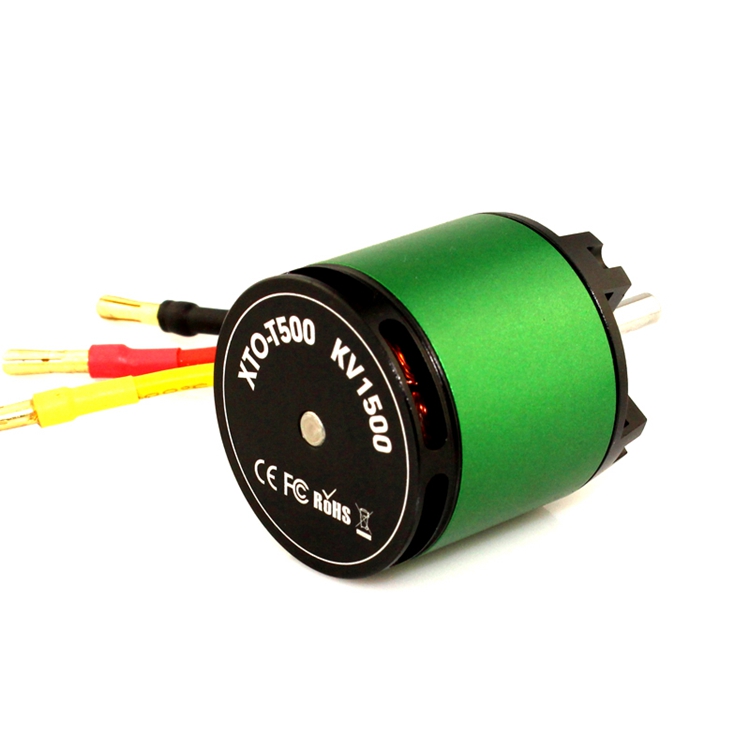

XTO-T500 Outrunner Brushless Motor for 500 Helicopter Model

Description

The XTO-T500 Outrunner Brushless Motor for 500 Helicopter Model is a high-performance power solution meticulously crafted for helicopter applications. It integrates innovative design concepts and exquisite manufacturing processes. With its outstanding torque output, efficient cooling system, and flexible and diverse installation methods, it stands out among numerous similar products.

Performance Parameters

Model: XTO-1500

KV Value: 1490KV

Voltage Range: 3S ~ 6S LiPo

No-load Current: 2.3A

Number of Poles: 6-pole outrunner design

Maximum Power: 600W

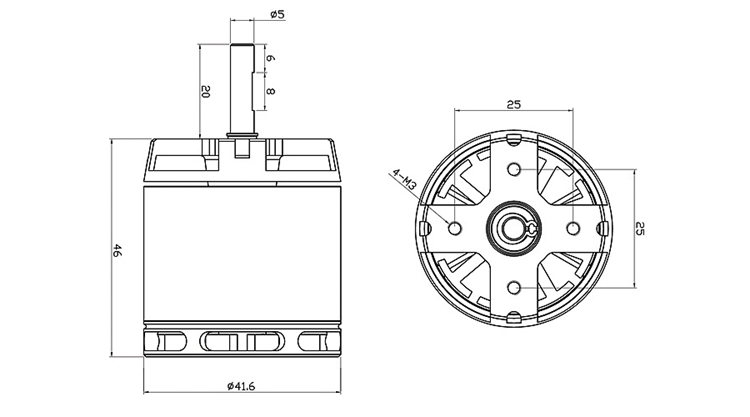

Dimensions: Φ41.6×46mm

Shaft Diameter and Length: Φ5×20mm

Weight: 227g

Resistance (Rm): 0.0147Ω

Structural Features

6-pole Outrunner Design: Adopting a layout of high-density neodymium magnets, combined with a slotted outrunner structure, it optimizes the magnetic field efficiency and heat dissipation performance, ensuring stable operation under medium and high loads.

Lightweight and Compact Design: Weighing only 227g and with a size of Φ41.6×46mm, it is suitable for small and medium-sized models, taking into account both power output and space limitations.

Reinforced Internal Shaft Core Design: Supports the high torque requirements of helicopters or high-speed models.

External Keyway Design: Ensures that the gear or coupling is firmly installed to prevent slipping during high-speed operation.

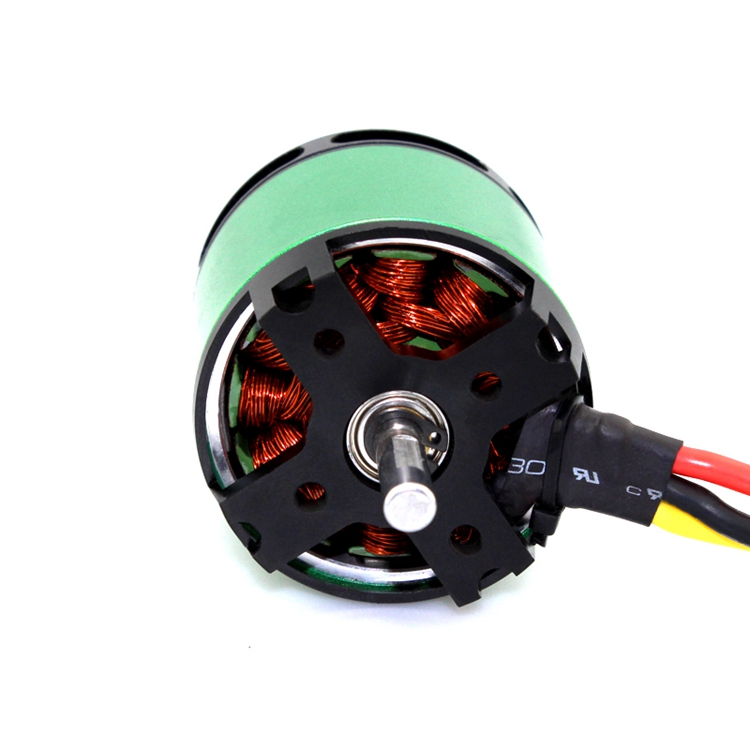

Multi-mounting Interface Adaptation: Supports installation with 4×M3 screws at a spacing of 25mm, adapting to the transmission systems of various helicopters or models.

Efficient Heat Dissipation System: Through the optimization of the air duct of the housing and the use of highly heat-conductive materials, it ensures temperature control at a full power of 600W.

Application Areas

Helicopter Models: Compatible with 500-class helicopters, supporting 3D acrobatic flights and precise hovering.

Unmanned Aerial Vehicles (UAVs): Suitable for tasks such as agricultural monitoring and aerial photography, providing stable power output.

High-speed Model Cars and Boats: The high KV value (1490) is suitable for racing scenarios, supporting explosive acceleration.

Experimental Platforms and Educational Kits: Used to demonstrate high-efficiency motor technology or for robot development.

Precautions

Safety First: Check the connections before operation to avoid electric shock or mechanical injury.

Regular Maintenance: Keep the motor clean, check for wear and tear to ensure long-term operation.

Environmental Adaptation: Select the appropriate configuration according to the usage scenario, and pay attention to heat dissipation and protection.

Battery Management: Use the battery and charger correctly, avoid overcharging and over-discharging, and ensure safety.

If you are interested in the XTO-T500 Outrunner Brushless Motor for 500 Helicopter Model or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Our Plenty of innovative and detailed solutions plus carefully selected materials guarantee for lots of torque and perfect cooling. many mounting opportunities for almost every helicopter application.The shaft inside the motor case provides optimal strength, the external part of the shaft with a key path for secure mounting of drive pinions. The X-team motor will excite you, Improve your flying style and go to the limit.
