Description

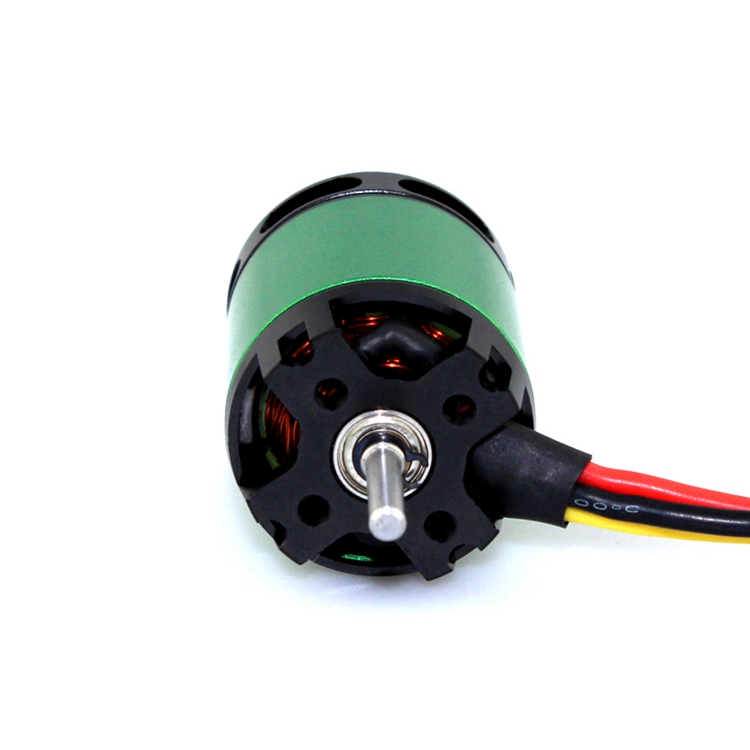

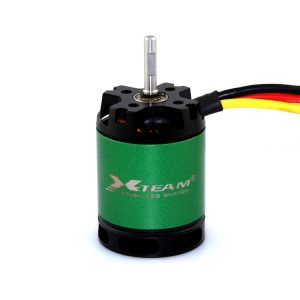

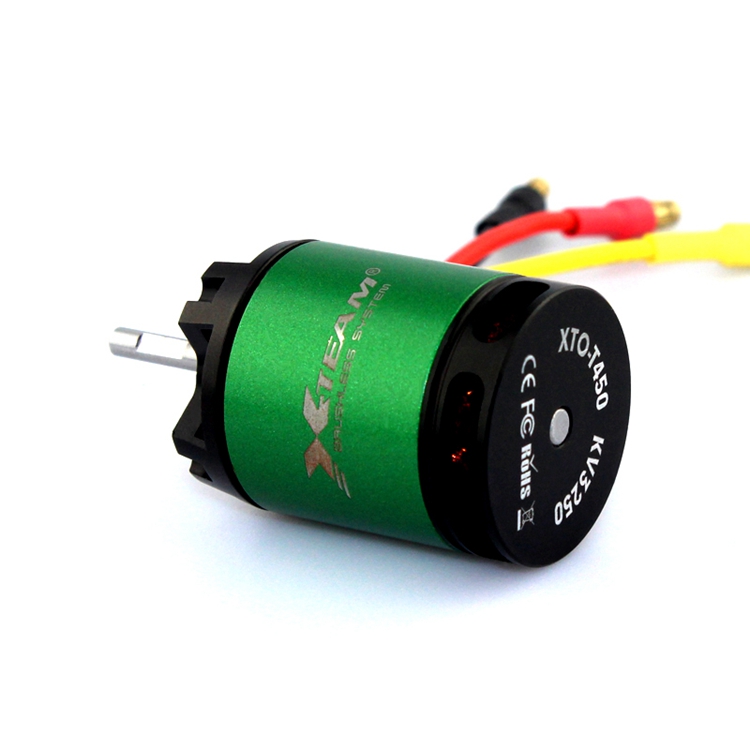

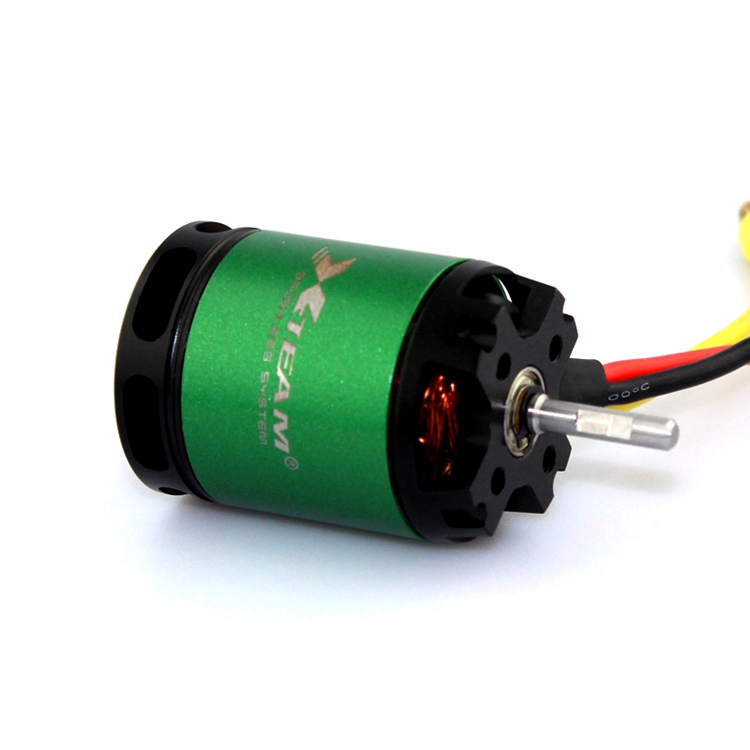

The XTO-T450 Outrunner Brushless Motor for 450 Helicopter Model is a brushless DC motor specifically designed for ultra-lightweight and high-performance models. With its extremely high rotational speed (3250KV) and ultimate lightweight (79g), it has become the ideal power core for micro unmanned aerial vehicles (UAVs), racing model cars, and educational experimental kits. Adopting a 6-pole outrunner design and combining with precise manufacturing processes, it takes into account both heat dissipation performance and structural strength while ensuring efficient output, meeting users’ dual needs for speed and stability.
Performance Parameters
Model: XTO-1450
KV Value: 3250KV
Voltage Range: 3S ~4S LiPo
No-load Current: 2.2A
Number of Poles: 6-pole outrunner design
Maximum Power: 200W

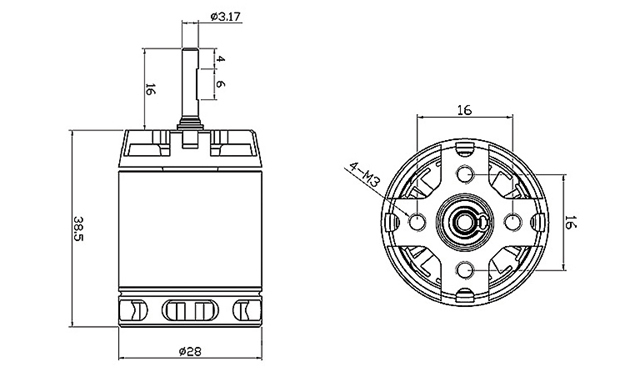

Dimensions: Φ28×38.5mm
Shaft Diameter and Length: Φ3.175×16mm
Weight: 79g
Resistance (Rm): 0.0172Ω
Structural Features
6-pole Outrunner Design: Adopting a layout of high-density neodymium magnets, combined with a slotted outrunner structure, it optimizes the magnetic field efficiency and heat dissipation performance, making it suitable for stable operation in high rotational speed scenarios.
Ultra-lightweight and Compact Design: Weighing only 79g and with a small size (Φ28×38.5mm), it is suitable for ultra-light models, minimizing the overall weight of the machine.
Reinforced Internal Shaft Core Design: Supports the mechanical strength requirements under high-speed rotation.
External Keyway Design: Ensures that the gear or coupling is firmly installed to prevent slipping during high-speed operation.
Multiple Color Options: Provides two shell colors, black and green, to meet users’ personalized needs.
Efficient Heat Dissipation System: Through the optimization of the air duct of the housing and the use of highly heat-conductive materials, it ensures temperature control at a power of 200W.
Application Areas
Micro Unmanned Aerial Vehicles (UAVs): Compatible with indoor racing UAVs or micro aerial photography aircraft, providing explosive acceleration performance.
Ultra-small Electric Aircraft: Suitable for indoor gliders or acrobatic aircraft weighing no more than 200g.
Micro Model Cars and Boats: The high rotational speed characteristic is suitable for ultra-small land or water models, supporting short-distance sprints.
Precautions
Safety First: Before operating the motor, please ensure that the power supply has been disconnected and check whether all connections are firm. Avoid using the motor in a wet or flammable environment to prevent electric shock or fire accidents.
Proper Operation: Use the motor correctly according to the operation steps in the product manual. Avoid continuous high-load operation for a long time to prevent damage to the motor or shortening of its service life.
Maintenance: Regularly check the operation status and wear of the motor.
Environmental Adaptation: Ensure that the motor operates within the rated voltage and current range to improve the stability and service life of the motor.
If you are interested in the XTO-T450 Outrunner Brushless Motor for 450 Helicopter Model or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:
Telephone: +86-769-85228181
Email: chris@x-teamrc.com
Our Plenty of innovative and detailed solutions plus carefully selected materials guarantee for lots of torque and perfect cooling. many mounting opportunities for almost every helicopter application.The shaft inside the motor case provides optimal strength, the external part of the shaft with a key path for secure mounting of drive pinions. The X-team motor will excite you, Improve your flying style and go to the limit.
