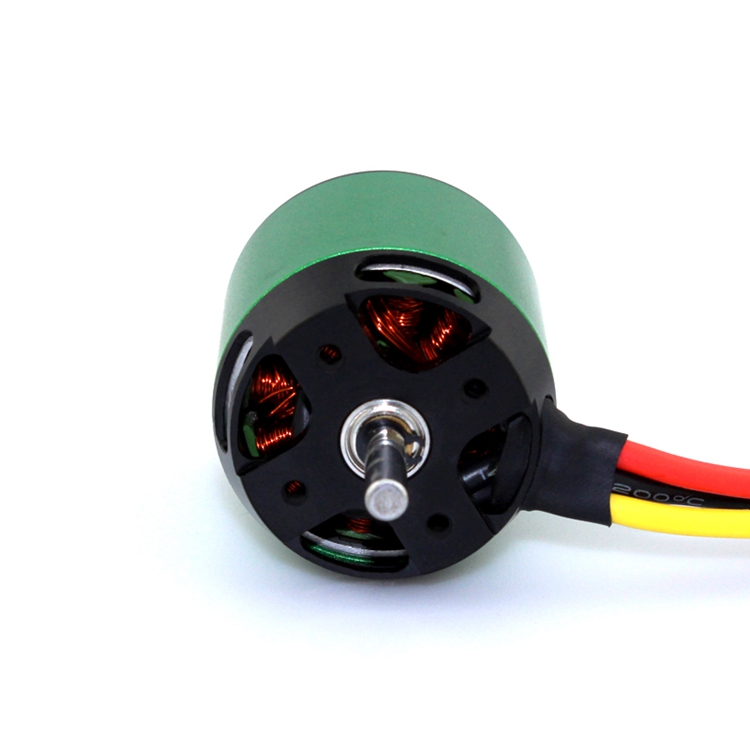

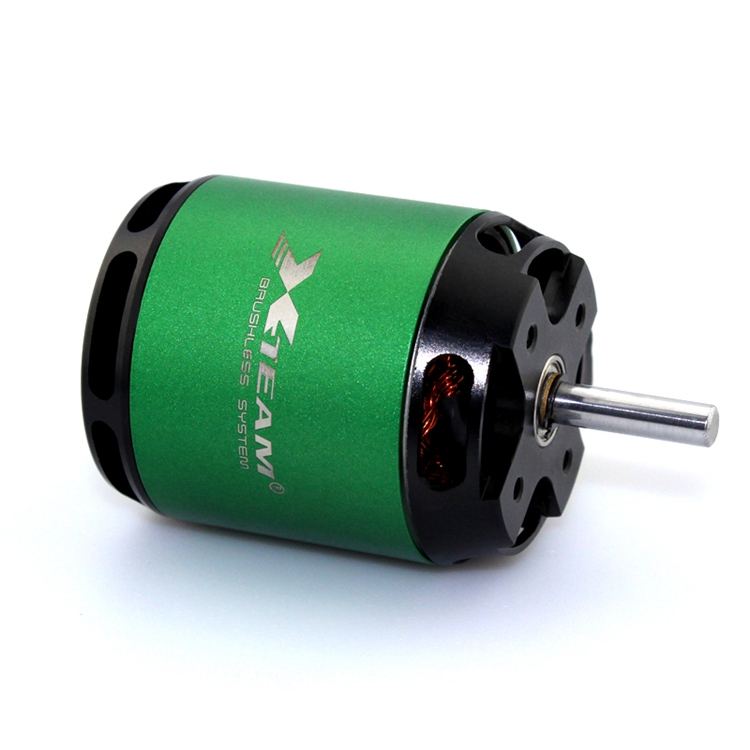

XTO-3530 Outrunner Brushless Motor for Fixed-wing Aircraft

Description

The XTO-3530 Outrunner Brushless Motor for Fixed-wing Aircraft is specifically designed to meet the high-performance requirements of various model applications. With superior performance, advanced design, and wide applicability, the XTO-3530 Outrunner Brushless Motor for Fixed-wing Aircraft is deeply loved by model enthusiasts.

Performance Parameters

KV Value: 680KV ~ 485KV

Voltage Range: 4S – 6S LiPo

No-load Current: 1.7A ~ 1.1A

Maximum Power: 1100W

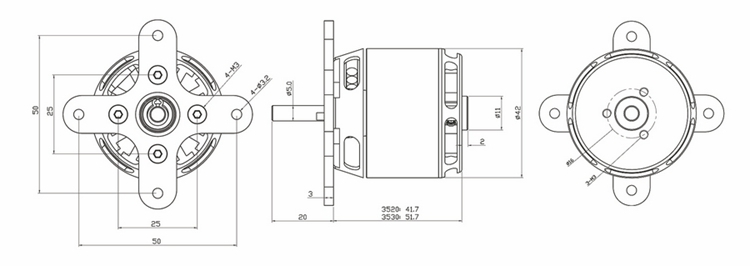

Dimensions: Φ42×51.7mm

Shaft Diameter×Length: Φ5×20mm

Weight: 259g

Structural Features

Housing Design: Carefully crafted from high-quality materials, it has excellent heat dissipation performance and durability.

Internal Structure: The advanced magnetic circuit design and optimized winding layout achieve higher energy conversion efficiency and more stable operation performance.

Installation Method: Equipped with a standard fixing method using 25mm 4xM3 screws, facilitating quick installation and disassembly.

High Efficiency: The 14-pole design brings excellent torque performance, and the optimized number of coil turns ensures the efficient operation of the motor.

Low Power Consumption: While providing strong power, it maintains a low energy consumption level.

Compact Design: The small size and light weight make the motor suitable for application scenarios with limited space.

Application Areas

Dogfighters: Suitable for fighter model aircraft that fly at high speeds, providing strong power and efficient cooling performance.

Fun- and 3D Flyers: Suitable for aerobatic flight and 3D flight models, providing excellent torque and response speed.

Unmanned Aerial Vehicles (UAVs): Suitable for small UAVs that require efficient power and a lightweight design.

Remote Control Cars and Model Boats: Suitable for remote control cars and model boats that require high torque and efficient cooling.

Precautions

Voltage and Current Matching: Please ensure that the voltage and current of the battery used match the rated values of the motor to avoid overloading or damaging the motor.

Proper Installation and Fixing: When installing the motor, please follow the guiding steps in the product manual to ensure that the motor is correctly installed and firmly fixed.

Regular Inspection and Maintenance: During use, please regularly check the operation status and temperature of the motor. If abnormal vibrations, noises, or overheating are found, stop the motor immediately for inspection and troubleshoot the problem.

Avoid Harsh Environments: Do not use the motor in a wet, high-temperature, or flammable and explosive environment to ensure safety in use.

If you are interested in the XTO-3530 Outrunner Brushless Motor for Fixed-wing Aircraft or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Our XTO-35 outrunner series feature 8 and 14 pole versions. The XTO-35 motors have been designed for models up to 4kg, such as Dogfighters, Fun- and 3D Flyers. Due to the innovative motor housing design of the XTO-35 series we have been able to reduce weight and improve efficiency. Great torque, low weight and maximum efficiency are the outstanding features of the XTO-35 motors.
