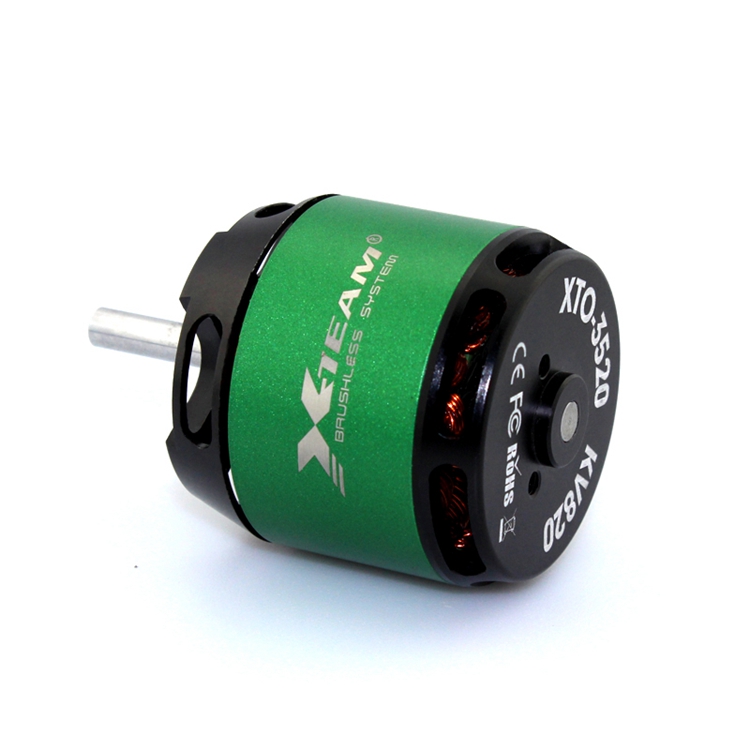

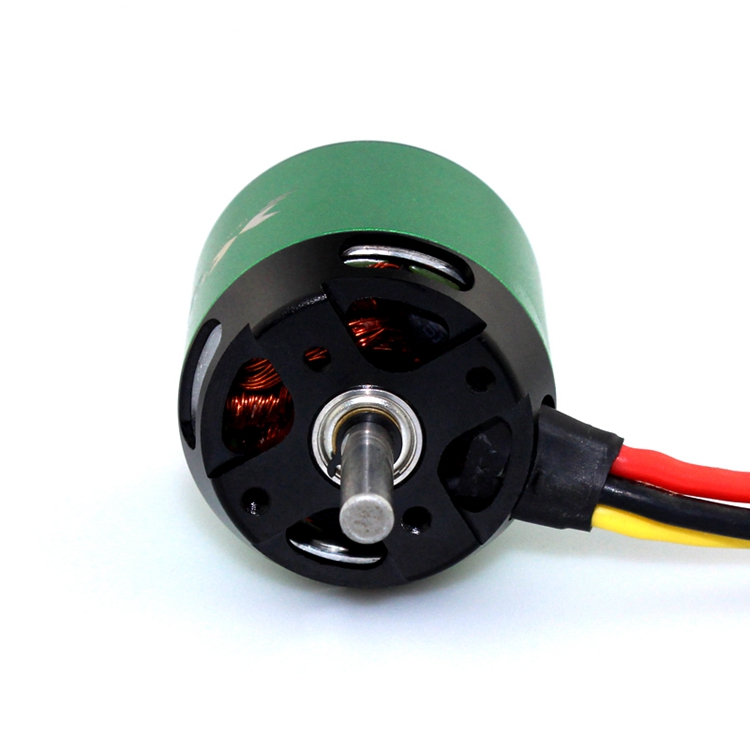

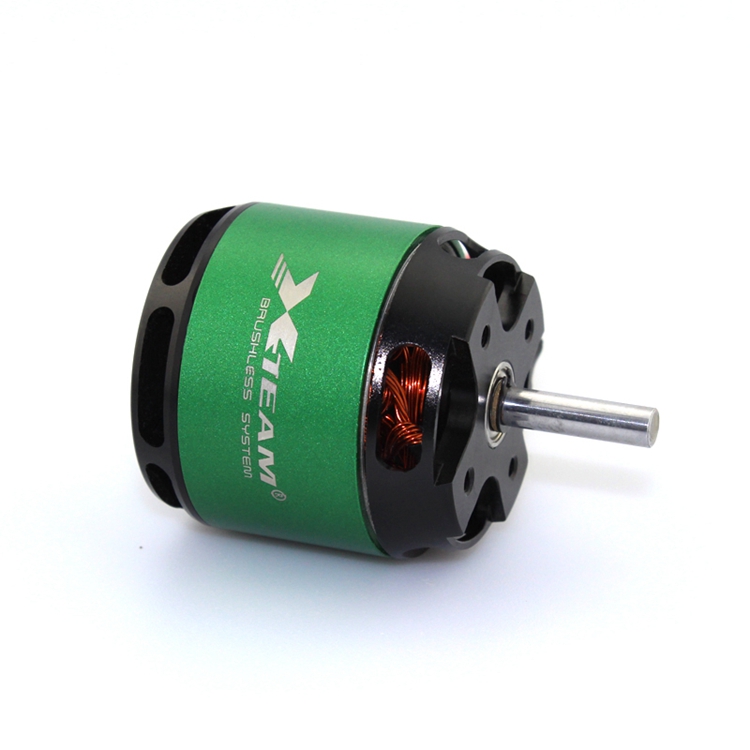

XTO-3520 Outrunner Brushless Motor for Fixed-wing Aircraft

Description

The XTO-3520 Outrunner Brushless Motor for Fixed-wing Aircraft, with its outstanding performance, compact design, and wide application adaptability, has become an ideal choice in the fields of remote control model vehicles and small industrial equipment. During the usage process, as long as the correct operation methods and precautions are followed, the XTO-3520 Outrunner Brushless Motor for Fixed-wing Aircraft can provide users with efficient and reliable driving force, helping model vehicles and equipment achieve excellent performance.

Performance Parameters

Model: XTO-3520

KV Value: 820KV ~ 700KV

Voltage Range: 4S LiPo

No-load Current: 1.9A ~ 1.4A

Maximum Power: 900W

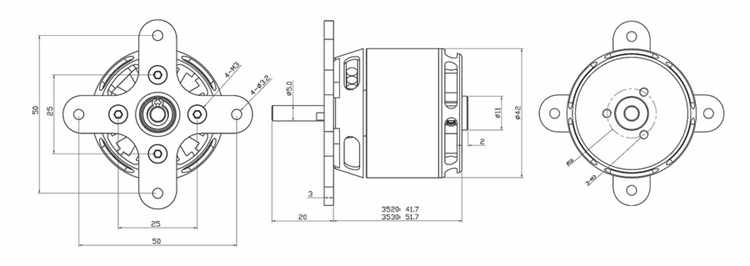

Dimensions: Φ42×41.7mm

Shaft Diameter×Length: Φ5×20mm

Weight: 198g

Structural Features

Efficient Cooling System: Adopting an advanced cooling design to ensure that the motor can still maintain good heat dissipation performance under high load, extending the service life of the motor.

High Efficiency: The optimized electromagnetic design and high-quality materials ensure that the motor can operate efficiently under various working conditions.

Verified Quality: Through strict quality control and testing to ensure the reliability and stability of the motor.

Innovative Motor Housing Design: Through the innovative housing design, the weight has been successfully reduced and the efficiency has been improved.

Application Areas

Dogfighters: Suitable for fighter model aircraft that fly at high speeds, providing strong power and efficient cooling performance.

Fun- and 3D Flyers: Suitable for aerobatic flight and 3D flight models, providing excellent torque and response speed.

Unmanned Aerial Vehicles (UAVs): Suitable for small UAVs that require efficient power and a lightweight design.

Remote Control Cars and Model Boats: Suitable for remote control cars and model boats that require high torque and efficient cooling.

Precautions

Voltage and Current Matching: Please ensure that the voltage and current of the battery used match the rated values of the motor to avoid overloading or damaging the motor.

Proper Installation and Fixing: When installing the motor, please follow the guiding steps in the product manual to ensure that the motor is correctly installed and firmly fixed. Use the standard 25mm 4xM3 screw holes for installation to ensure the stability and precision of the motor.

Regular Inspection and Maintenance: During use, please regularly check the operation status and temperature of the motor. If abnormal vibrations, noises, or overheating are found, stop the motor immediately for inspection and troubleshoot the problem.

Avoid Harsh Environments: Do not use the motor in a wet, high-temperature, or flammable and explosive environment to ensure safety in use.

Reasonable Speed Adjustment: During use, please adjust the speed of the motor reasonably according to actual needs to avoid excessive wear or damage to the motor.

If you are interested in the XTO-3520 Outrunner Brushless Motor for Fixed-wing Aircraft or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Our XTO-35 outrunner series feature 8 and 14 pole versions. The XTO-35 motors have been designed for models up to 4kg, such as Dogfighters, Fun- and 3D Flyers. Due to the innovative motor housing design of the XTO-35 series we have been able to reduce weight and improve efficiency. Great torque, low weight and maximum efficiency are the outstanding features of the XTO-35 motors.
