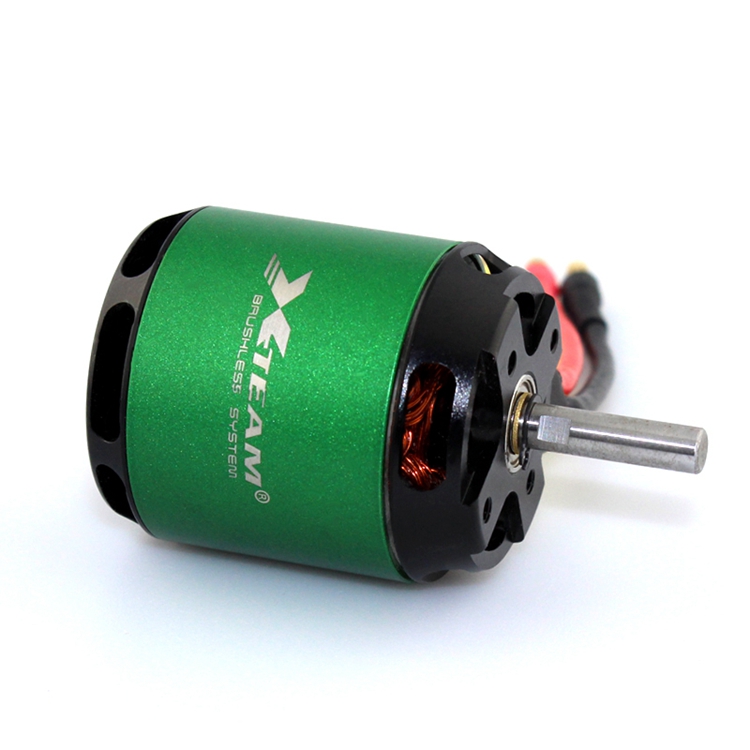

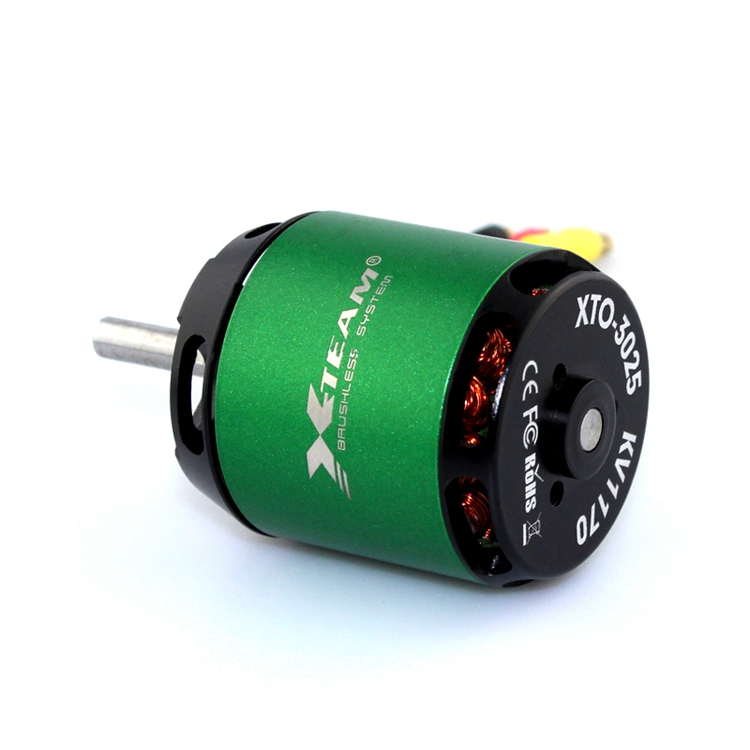

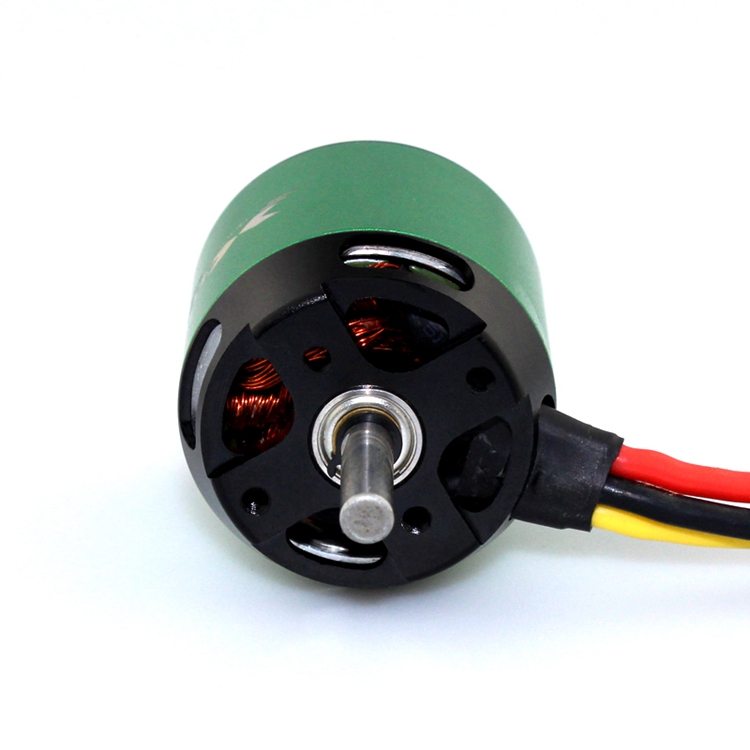

XTO-3025 Outrunner Brushless Motor for Fixed-wing Aircraft

Description

The XTO-3025 Outrunner Brushless Motor for Fixed-wing Aircraft is specifically designed for large park flyers, 3D aerobatic flights, scale models, and helicopters weighing up to 3200 grams. The XTO-3025 Outrunner Brushless Motor for Fixed-wing Aircraft features a slotted 14-pole outrunner design, which not only provides powerful thrust but also ensures flight stability and precision.

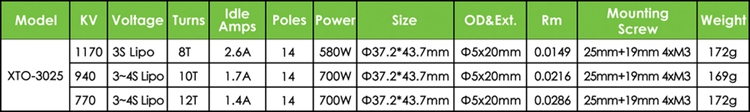

Performance Parameters

KV Value: 1170KV~770KV

Voltage Range: 3-4S LiPo

No-load Current: 2.6A~1.4A

Maximum Power: 700W

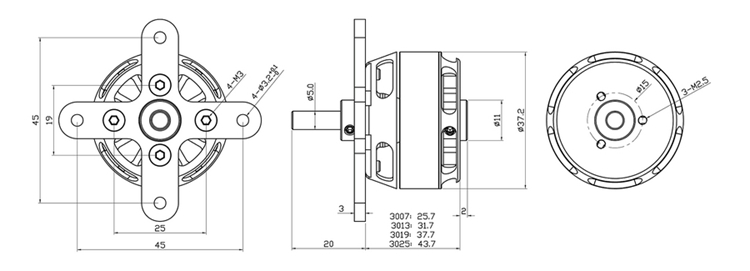

Dimensions: Φ37.2×43.7mm

Shaft Diameter×Length: Φ5×20mm

Weight: 172g

Structural Features

Slotted 14-pole Outrunner Design: This design makes the motor run more smoothly, reducing vibration and noise. At the same time, it provides higher efficiency and more powerful torque.

Lightweight Materials: The motor is made of lightweight materials, which not only reduces the weight but also improves the overall energy efficiency and response speed.

Compact Size: The compact size of Φ37.2×43.7mm enables the motor to easily adapt to various application scenarios with limited space.

Reliable Rotor Shaft: The Φ5x20mm rotor shaft is made of high-strength materials, ensuring the stability and durability of the motor during high-speed operation.

Application Areas

Large Park Flyers: It provides efficient power and stable flight performance, making it suitable for flying in parks or open areas.

3D Aerobatic Flight Models: It offers excellent torque and response speed, making it suitable for performing complex aerobatic flights and aerial shows.

Scale Models: It is suitable for scale models that require high precision and efficient power, such as realistic airplanes and helicopters.

Helicopters: It is suitable for helicopter models weighing no more than 3200g, providing stable hovering and flexible maneuverability.

Unmanned Aerial Vehicles (UAVs): It is suitable for medium-sized UAVs that require efficient power and lightweight design, and is suitable for aerial photography and monitoring tasks.

Remote Control Cars and Model Boats: It is suitable for remote control cars and model boats that require high torque and efficient cooling, providing strong power output.

Precautions

Voltage Matching: Please ensure that the voltage of the battery used matches the rated voltage of the motor to avoid overloading or damaging the motor.

Proper Installation: When installing the motor, please follow the guiding steps in the product manual for correct installation.

Regular Inspection and Maintenance: During use, please regularly check the operation status and temperature of the motor.

Avoid Harsh Environments: Do not use the motor in a wet, high-temperature, or flammable and explosive environment to ensure safety in use.

Reasonable Speed Adjustment: Adjust the speed of the motor reasonably according to actual needs to avoid excessive wear or damage to the motor. At the same time, please pay attention to the maximum current limit of the motor to avoid overloading.

If you are interested in the XTO-3025 Outrunner Brushless Motor for Fixed-wing Aircraft or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

The XTO-30 series motors are designed for larger parkflyers, 3D-aerobatic, scale models and helicopters up to 3200g using 2 to 4 LiPoly batteries.Featuring a slotted 14-pole outrunner design.

Features:

• Light weight

• Proven quality
