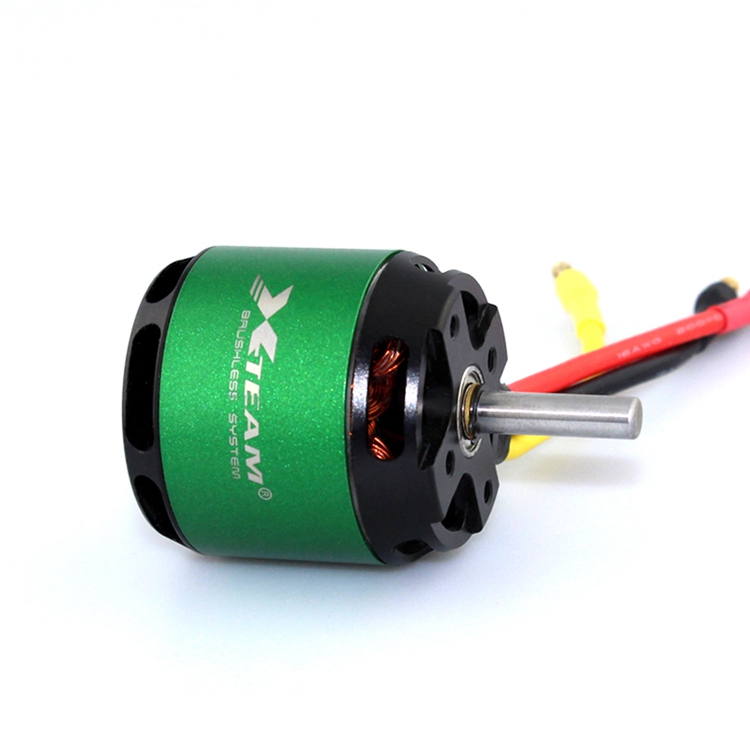

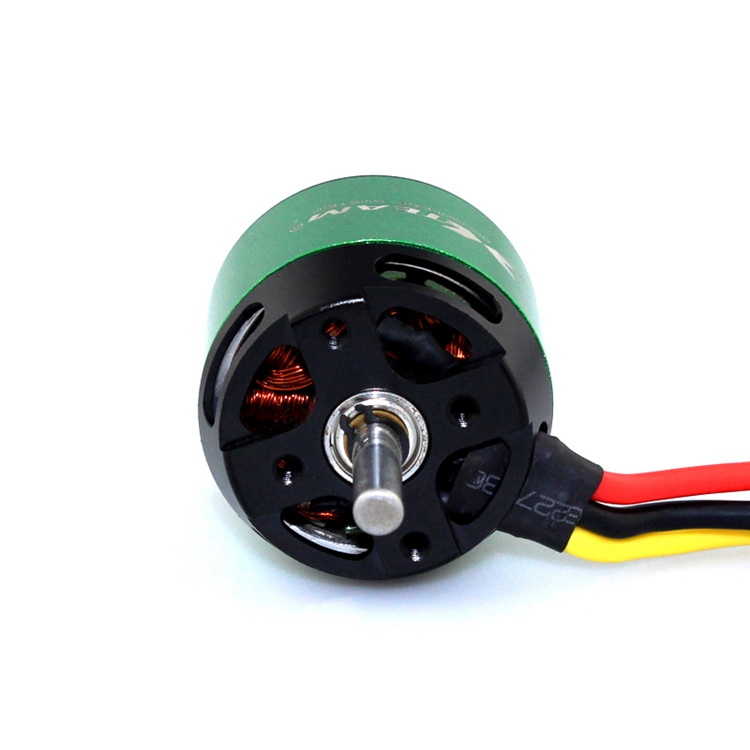

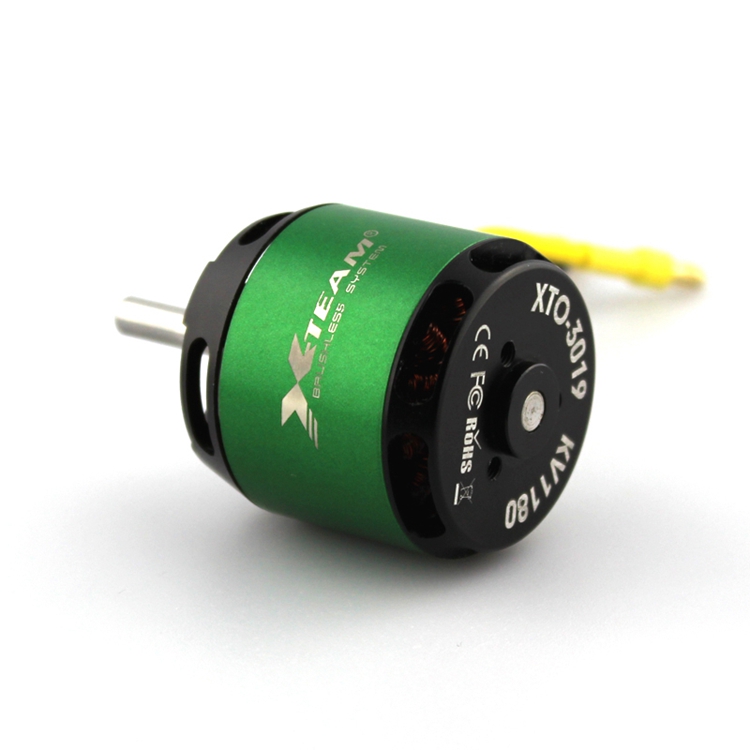

XTO-3019 Outrunner Brushless Motor for Fixed-wing Aircraft

Description

The XTO-3019 Outrunner Brushless Motor for Fixed-wing Aircraft is an efficient power solution specifically designed for high-performance models. With its lightweight design and excellent performance, the XTO-3019 Outrunner Brushless Motor for Fixed-wing Aircraft is suitable for a variety of model applications, including large park flyers, 3D aerobatic flight models, scale models, helicopters, unmanned aerial vehicles (UAVs), as well as remote control cars and model boats.

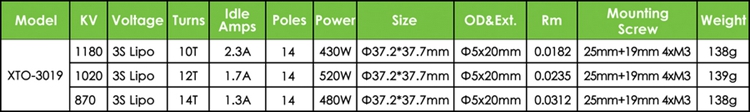

Performance Parameters

KV Value: 1180KV~870KV

Voltage Range: 3S LiPo

No-load Current: 2.3A~1.3A

Maximum Power: 430W~520W

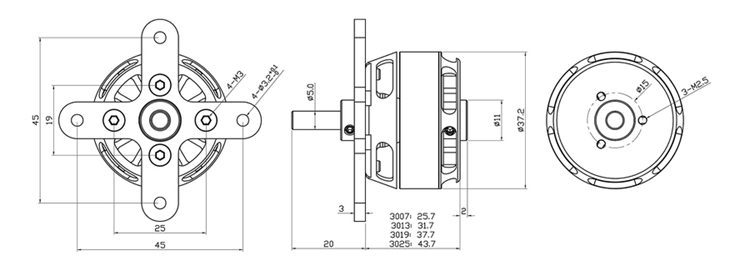

Dimensions: Φ37.2×37.7mm

Shaft Diameter×Length: Φ5×20mm

Weight: 139g

Structural Features

High-efficiency Design: Adopting brushless DC technology, it features high efficiency and low energy consumption, and can operate stably for a long time without being prone to overheating.

Compact Size: The compact size enables the motor to easily adapt to various application scenarios with limited space.

High-strength Rotor Shaft: The Φ5x20mm rotor shaft is made of high-strength materials and can withstand the tests of high rotational speeds and heavy loads.

Diverse KV Values: It offers a variety of KV value options to meet the performance requirements of motors in different application scenarios.

Application Areas

Large Park Flyers: It provides efficient power and stable flight performance.

3D Aerobatic Flight Models: With excellent torque and response speed, it is suitable for complex aerobatic flights.

Scale Models: With high precision and efficient power, it is suitable for realistic airplanes and helicopters.

Helicopters: It enables stable hovering and flexible maneuvering, and is suitable for helicopter models weighing no more than 3200g.

Unmanned Aerial Vehicles (UAVs): With efficient power and a lightweight design, it is suitable for aerial photography and monitoring tasks.

Remote Control Cars and Model Boats: With high torque and efficient cooling, it provides strong power output.

Precautions

Voltage Matching: Please ensure that the voltage of the battery used matches the rated voltage of the motor to avoid overloading or damaging the motor.

Proper Installation: Use the provided 25mm+19mm 4xM3 screws for fixation to ensure that the motor is firmly installed.

Regular Inspection and Maintenance: During use, please regularly check the operation status and temperature of the motor.

Avoid Harsh Environments: Do not use the motor in a wet, high-temperature, or flammable and explosive environment to ensure safety in use.

Reasonable Speed Adjustment: Adjust the speed of the motor reasonably according to actual needs to avoid excessive wear or damage to the motor.

If you are interested in the XTO-3019 Outrunner Brushless Motor for Fixed-wing Aircraft or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

The XTO-30 series motors are designed for larger parkflyers, 3D-aerobatic, scale models and helicopters up to 3200g using 2 to 4 LiPoly batteries.Featuring a slotted 14-pole outrunner design.

Features:

• Light weight

• Proven quality
