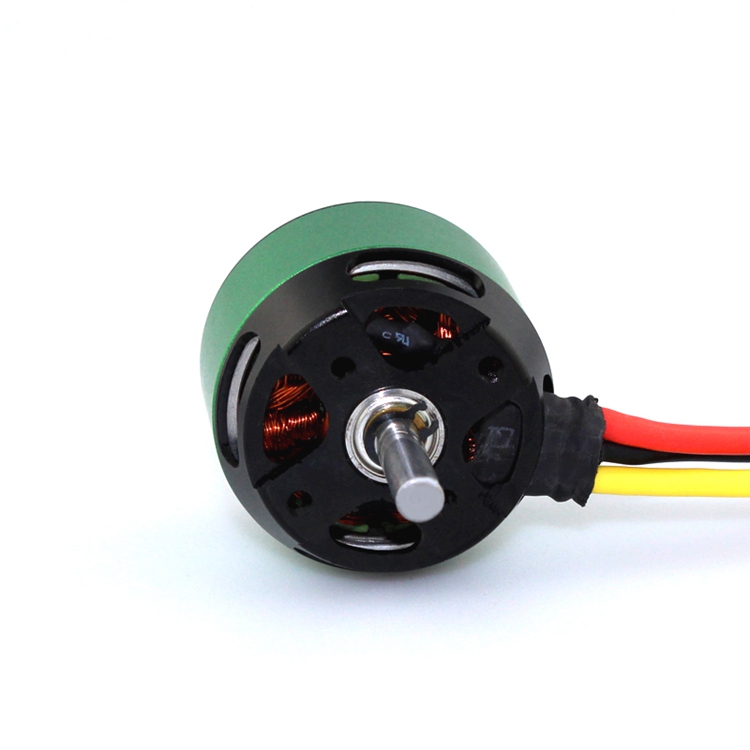

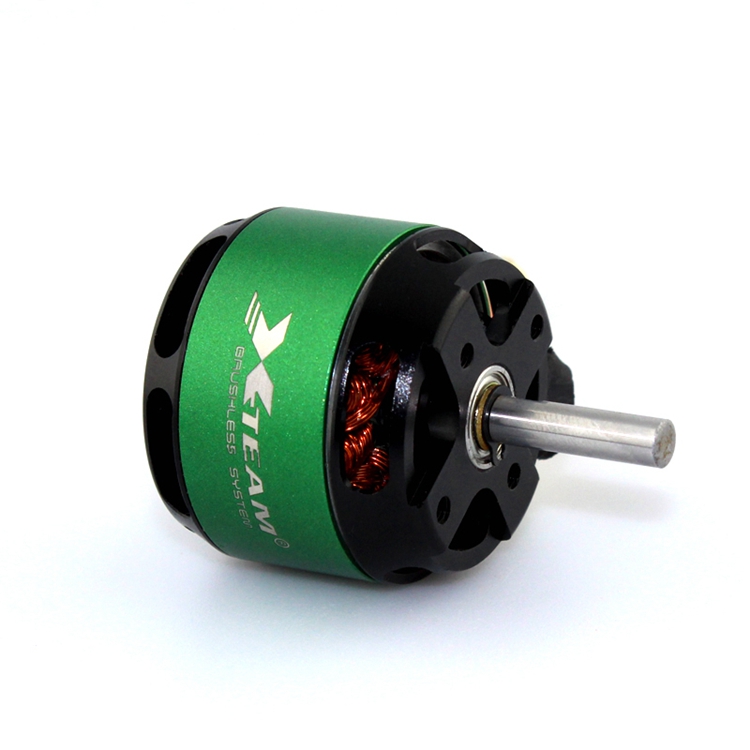

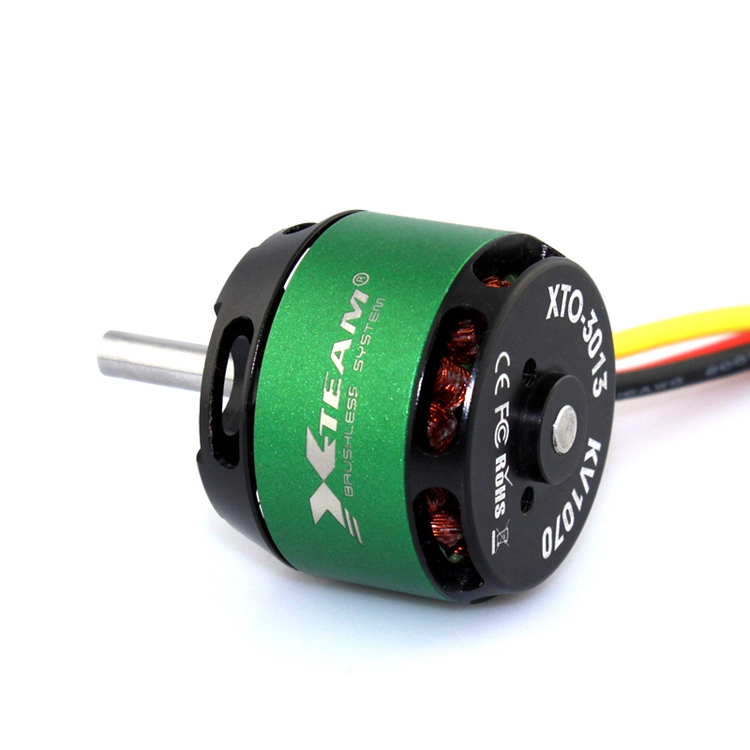

XTO-3013 Outrunner Brushless Motor for Fixed-wing Aircraft

Description

The XTO-3013 Outrunner Brushless Motor for Fixed-wing Aircraft, with its lightweight design, efficient heat dissipation performance, and flexible configuration options, has become the ideal power core for small and medium-sized high-performance models. Whether it is acrobatic flight in pursuit of extreme speed or a simulation model that requires precise control, the XTO-3013 Outrunner Brushless Motor for Fixed-wing Aircraft can provide reliable and sustained power support.

Performance Parameters

Model: XTO-3013

KV Value: 1450KV ~1070KV

Voltage Range: 3S LiPo

Number of Poles: 14-pole outrunner design

Maximum Power: 400W~350W

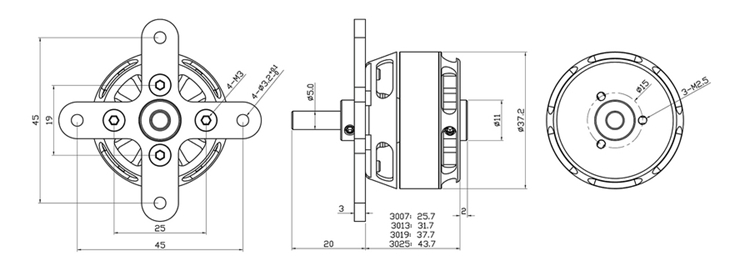

Dimensions: Φ37.2×31.7mm

Shaft Diameter and Length: Φ5×20mm

Weight: 109g

Structural Features

14-pole Stator: The 14-pole stator design optimizes the electromagnetic performance of the motor, improves the smoothness of torque output and the power response speed, reduces the vibration and noise of the motor during high-speed operation, and ensures the stability of flight.

Outrunner Structure: The outrunner structure design endows the motor with a high torque density, enabling it to output a large torque at low speeds, meeting the high requirements for instant torque of the model aircraft during takeoff, climbing, and complex flight maneuvers, and enhancing the maneuverability of the model.

Shaft Diameter and Extension Length Adaptation: The shaft diameter of Φ5mm×20mm and the extension length ensure that the motor can achieve precise and stable connections with components such as the transmission system and propellers of various model aircraft, improving the efficiency and reliability of power transmission.

Application Areas

3D Acrobatic Flight Models: The high KV value (1450) version has a rapid response and is suitable for performing difficult maneuvers such as rolls and hovering.

Scale Simulation Airplanes and Helicopters: The low KV value (1070) version provides smooth power output, which is suitable for simulation models that require precise control.

Medium-sized Unmanned Aerial Vehicles (UAVs): The lightweight design combined with efficient heat dissipation is suitable for long-term tasks such as aerial photography and agricultural monitoring.

Remote Control Cars and Model Boats: The high torque output supports the high-speed acceleration and stable cruising of land and water models.

Large Park Flyers: The balanced performance is suitable for recreational flights or competitive performances in open areas.

Precautions

Voltage Matching: Please strictly use the motor within the 3S Lipo voltage range it is adapted to avoid damage to the motor or abnormal performance caused by too high or too low voltage.

Firm Installation: When installing the motor, make sure that the connections between the motor, the model fuselage, the propeller and other components are firm and reliable to prevent components from loosening or falling off due to vibration or external force during flight, which may lead to flight accidents.

Regular Inspection: Regularly inspect the motor, promptly identify and address potential problems to ensure that the motor is always in good working condition.

Avoid Water Ingress: The motor should avoid contact with water or other liquids, which may affect the service life and performance of the motor.

Battery Safety: The LiPoly battery used in combination should be properly stored and used to avoid adverse effects such as impact, extrusion, and high temperature on the battery.

If you are interested in the XTO-3013 Outrunner Brushless Motor for Fixed-wing Aircraft or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

The XTO-30 series motors are designed for larger parkflyers, 3D-aerobatic, scale models and helicopters up to 3200g using 2 to 4 LiPoly batteries.Featuring a slotted 14-pole outrunner design.

Features:

• Light weight

• Proven quality
