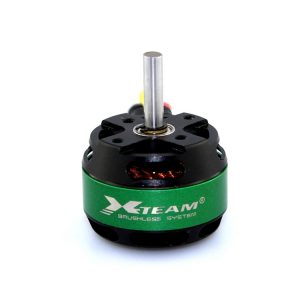

XTO-3007 Outrunner Brushless Motor for Fixed-wing Aircraft

Description

The XTO-3007 Outrunner Brushless Motor for Fixed-wing Aircraft is a high-performance and multi-specification motor product, specifically designed to meet the needs of different fields and scenarios. By adopting advanced technologies and materials, it ensures the characteristics of high efficiency, stability, and durability. The XTO-3007 Outrunner Brushless Motor for Fixed-wing Aircraft is specifically designed to meet the flight requirements of model aircraft such as large park flyers, 3D aerobatic planes, scale models, and helicopters. It is suitable for models equipped with 2 to 4 LiPoly batteries, and the maximum takeoff weight can reach 3200 grams. With its outrunner design featuring a 14-pole stator, it has remarkable advantages such as lightweight and high quality, and can provide strong and stable power support for model aircraft flights, ensuring excellent flight performance.

Performance Parameters

Model: XTO-3007

KV Value: 1440KV~1180KV

Voltage Range: 3S LiPo

No-load Current: 1.2A~0.9A

Number of Poles: 14-pole outrunner design

Maximum Power: 360W~300W

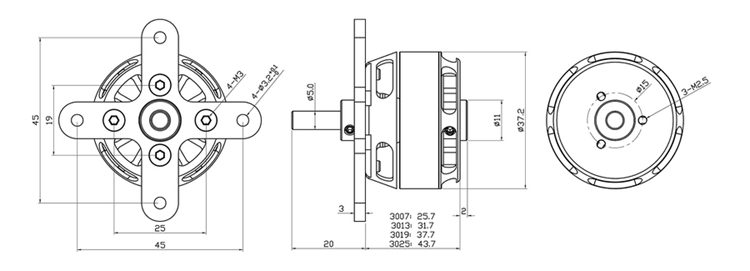

Dimensions: Φ37.2×25.7mm

Shaft Diameter and Length: Φ5×20mm

Weight: 76g

Structural Features

14-pole Outrunner Design: Adopting a slotted 14-pole outrunner structure, combined with a high-density magnetic steel layout, significantly improves torque output and heat dissipation efficiency, ensuring the stable operation of the motor under high load.

Precision Manufacturing Process: The outer shell is made of high-strength aluminum alloy material, and the internal rotor has undergone precise dynamic balance treatment, reducing vibration and noise and extending the service life.

Application Areas

3D Aerobatic Flight Models: The high KV value (1440) version has a rapid response and is suitable for performing difficult maneuvers such as rolls and hovering.

Scale Simulation Airplanes and Helicopters: The low KV value (1180) version provides smooth power output, which is suitable for simulation models that require precise control.

Medium-sized Unmanned Aerial Vehicles (UAVs): The lightweight design combined with efficient heat dissipation is suitable for long-term tasks such as aerial photography and agricultural monitoring.

Remote Control Cars and Model Boats: The high torque output supports the high-speed acceleration and stable cruising of land and water models.

Large Park Flyers: The balanced performance is suitable for recreational flights or competitive performances in open areas.

Precautions

Voltage Matching: Please strictly use the motor within the 3S Lipo voltage range it is adapted to avoid damage to the motor or abnormal performance caused by too high or too low voltage.

Firm Installation: When installing the motor, make sure that the connections between the motor, the model fuselage, the propeller and other components are firm and reliable to prevent components from loosening or falling off due to vibration or external force during flight, which may lead to flight accidents.

Regular Inspection: Regularly inspect the motor, including whether there is any damage or deformation to the appearance of the motor, whether the screws are loose, and whether the shaft diameter is worn, etc.

Avoid Water Ingress: The motor should avoid contact with water or other liquids to prevent problems such as internal short circuits and rusting of the motor, which may affect the service life and performance of the motor.

Battery Safety: Avoid adverse effects such as impact, extrusion, and high temperature on the battery, ensure the safety and stable performance of the battery, and prevent damage to the motor or flight accidents caused by battery failures.

If you are interested in the XTO-3007 Outrunner Brushless Motor for Fixed-wing Aircraft or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

The XTO-30 series motors are designed for larger parkflyers, 3D-aerobatic, scale models and helicopters up to 3200g using 2 to 4 LiPoly batteries.Featuring a slotted 14-pole outrunner design.

Features:

• Light weight

• Proven quality
