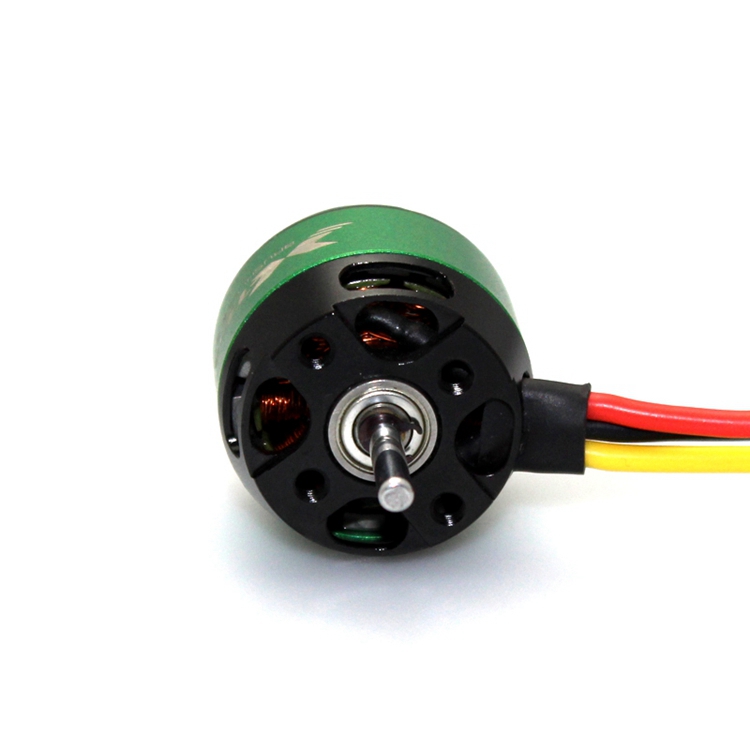

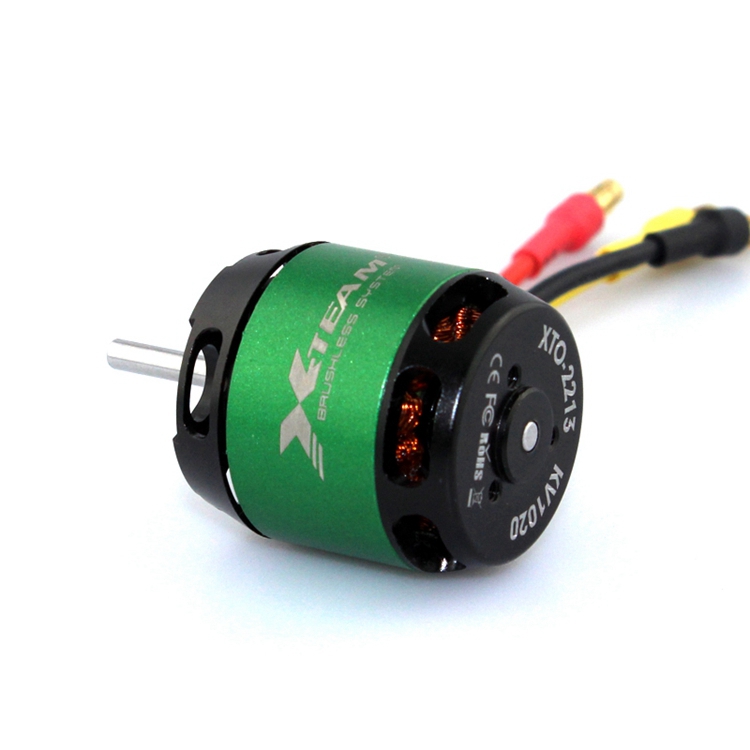

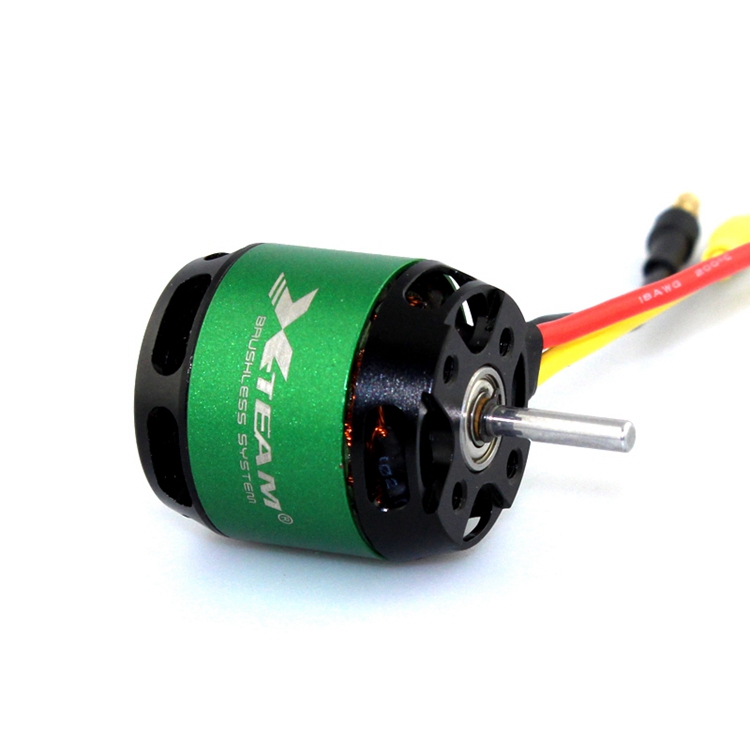

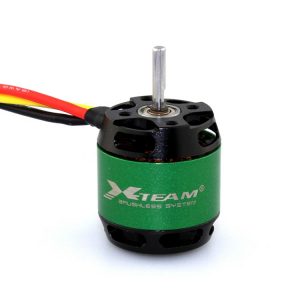

XTO-2213 Outrunner Brushless Motor for Fixed-wing Aircraft

Description

The XTO-2213 Outrunner Brushless Motor for Fixed-wing Aircraft is a small outrunner motor in this series, standing out for its high efficiency and lightweight design. The XTO-2213 Outrunner Brushless Motor for Fixed-wing Aircraft is specifically tailored for small electric aircraft, with a maximum takeoff weight of up to 1500 grams. It can provide excellent power support for model flights, ensuring the efficiency and stability of the flight.

Performance Parameters

Model: XTO-2213

KV Value: 1020KV~930KV

Voltage Range: 3S LiPo

No-load Current: 0.7A~0.6A

Number of Poles: 14-pole outrunner design

Maximum Power: 200W~180W

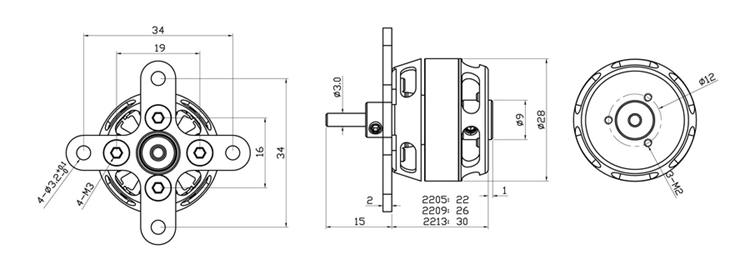

Dimensions: Φ28×30mm

Shaft Diameter and Length: Φ3×15mm

Weight: 58g

Structural Features

14-pole Outrunner Design: Adopting a slotted 14-pole outrunner structure, combined with a high-density magnetic steel layout, it significantly improves torque output and heat dissipation efficiency, ensuring the stable operation of the motor under small and medium loads.

Extremely Lightweight and Compact Design: Weighing only 56g to 58g and with a small size (Φ28×30mm), it is suitable for small models that are extremely sensitive to weight and space, optimizing the overall performance.

Precision Manufacturing Process: The outer shell is made of high-strength aluminum alloy material, and the internal rotor has undergone precise dynamic balance treatment, reducing vibration and noise and extending the service life.

Flexible Multi-configuration Adaptation: It provides two combinations of KV values (1020/930) and the number of turns (20T/22T). Users can choose the high-response or high-efficiency version according to their needs.

Application Areas

Small Electric Aircraft: It is compatible with light aircraft, providing stable power output, and is suitable for flying in parks or for recreational and competitive scenarios.

Micro Unmanned Aerial Vehicles (UAVs): The lightweight design combined with efficient heat dissipation is suitable for short-distance aerial photography or indoor flight tasks.

Micro 3D Aerobatic Models: The high-response version (1020KV) supports quick maneuvers and is suitable for complex aerobatic maneuvers.

Micro Remote Control Cars and Model Boats: The compact size is suitable for small land or water models, providing balanced power output.

Precautions

Power Supply Matching: Please ensure that the voltage of the selected power supply matches the rated voltage of the motor to avoid damage to the motor caused by overvoltage or undervoltage.

Load Control: Conduct reasonable load control according to the power and load requirements of the motor to avoid overheating or damage to the motor caused by overload.

Regular Inspection: Regularly clean and inspect the motor to ensure it is in good working condition.

Safety Protection: When operating the motor, please wear appropriate protective equipment, such as gloves and goggles, to prevent accidents.

If you are interested in the XTO-2213 Outrunner Brushless Motor for Fixed-wing Aircraft or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

X-TEAM XTO-22 series motors are small outrunners of our series and provide great efficiency and light weight. They’re ideal for small electric airplanes up to 1500g. Featuring a slotted 14-pole outrunner design.

Features:

• Light weight

• Proven quality
