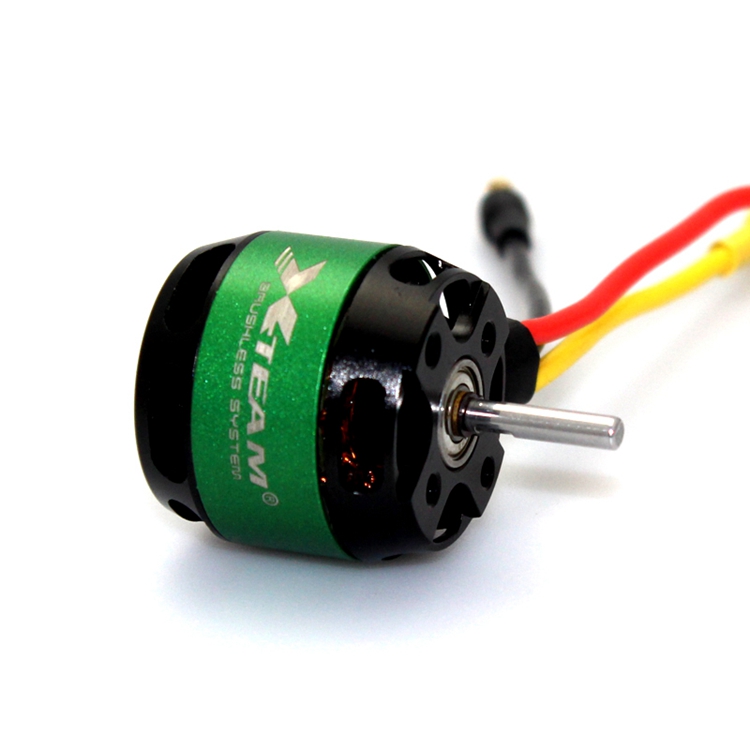

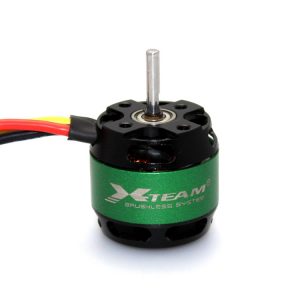

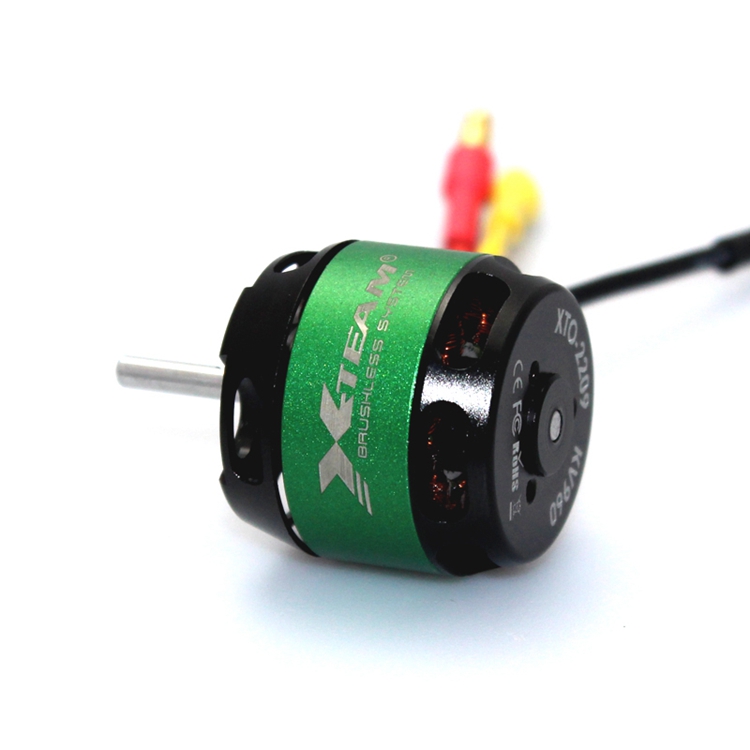

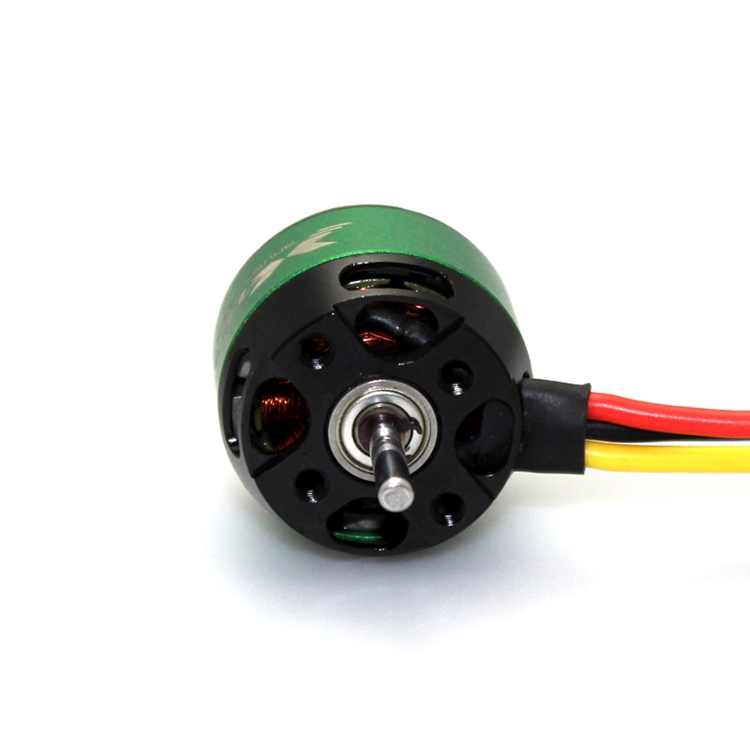

XTO-2209 Outrunner Brushless Motor for Fixed-wing Aircraft

Description

The XTO-2209 Outrunner Brushless Motor for Fixed-wing Aircraft, with its ultra-lightweight design, efficient heat dissipation performance, and flexible configuration options, has become the ideal power core for miniature models. Whether it is an ultra-light aircraft for indoor flight or an acrobatic drone that requires sensitive response, the XTO-2209 Outrunner Brushless Motor for Fixed-wing Aircraft can provide reliable support.

Performance Parameters

Model: XTO-2209

KV Value: 1100KV~960KV

Voltage Range: 3S LiPo

No-load Current: 0.5A~ 0.4A (960KV)

Number of Poles: 14-pole outrunner design

Maximum Power: 100W~ 140W

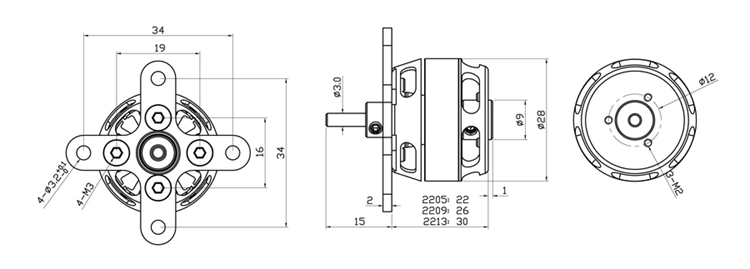

Dimensions: Φ28×26mm

Shaft Diameter and Length: Φ3×15mm

Weight: 45g

Structural Features

14-pole Outrunner Design: Adopting a slotted 14-pole outrunner structure, combined with a high-density magnetic steel layout, it optimizes torque output and heat dissipation performance, ensuring stable operation under small and medium loads.

Ultra-lightweight and Extremely Compact: Weighing only 44g to 45g and with a small size (Φ28×26mm), it is specifically designed for miniature models, significantly reducing the overall weight of the machine and improving flight or movement efficiency.

Precision Manufacturing Process: The outer shell is made of high-strength aluminum alloy material, and the internal rotor has undergone precise dynamic balance treatment, reducing vibration and noise and extending the service life.

Flexible Multi-configuration Adaptation: It provides two combinations of KV values (1100/960) and the number of turns (267T/307T). Users can choose the high-response or high-efficiency version according to their needs.

Application Areas

Micro Electric Aircraft: It is compatible with ultra-light aircraft (such as indoor gliders), providing stable power output, and is suitable for recreational flights or low-speed acrobatics.

Micro Unmanned Aerial Vehicles (UAVs): The lightweight design combined with low power consumption characteristics is suitable for indoor aerial photography or short-distance reconnaissance missions.

Micro 3D Aerobatic Models: The high-response version (1100KV) supports quick maneuvers and is suitable for complex acrobatic maneuvers.

Micro Remote Control Cars and Model Boats: The compact size and low weight are suitable for ultra-small land or water models, providing balanced power output.

Precautions

Voltage Matching: Please ensure that the power supply voltage connected to the motor matches the rated voltage of the motor to avoid damaging the motor or causing safety accidents.

Current Control: Reasonably control the current input of the motor to avoid exceeding the maximum current-bearing capacity of the motor.

Heat Dissipation Treatment: Please ensure that there is enough heat dissipation space around the motor and avoid using it in a high-temperature environment.

Regular Inspection: Please regularly check whether the connecting wires and installation components of the motor are loose or damaged to ensure the normal operation of the motor.

If you are interested in the XTO-2209 Outrunner Brushless Motor for Fixed-wing Aircraft or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

X-TEAM XTO-22 series motors are small outrunners of our series and provide great efficiency and light weight. They’re ideal for small electric airplanes up to 1500g. Featuring a slotted 14-pole outrunner design.

Features:

• Light weight

• Proven quality
