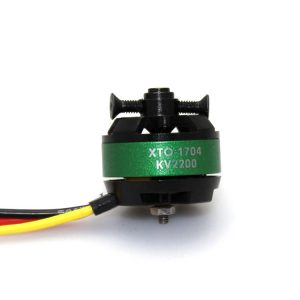

XTO-1704 Outrunner Brushless Motor for Fixed-wing Aircraft

Description

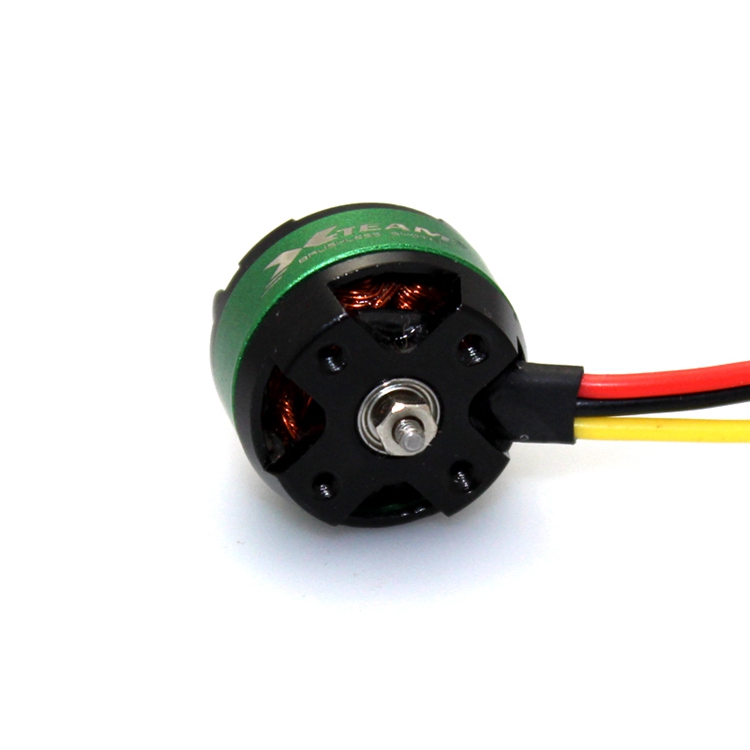

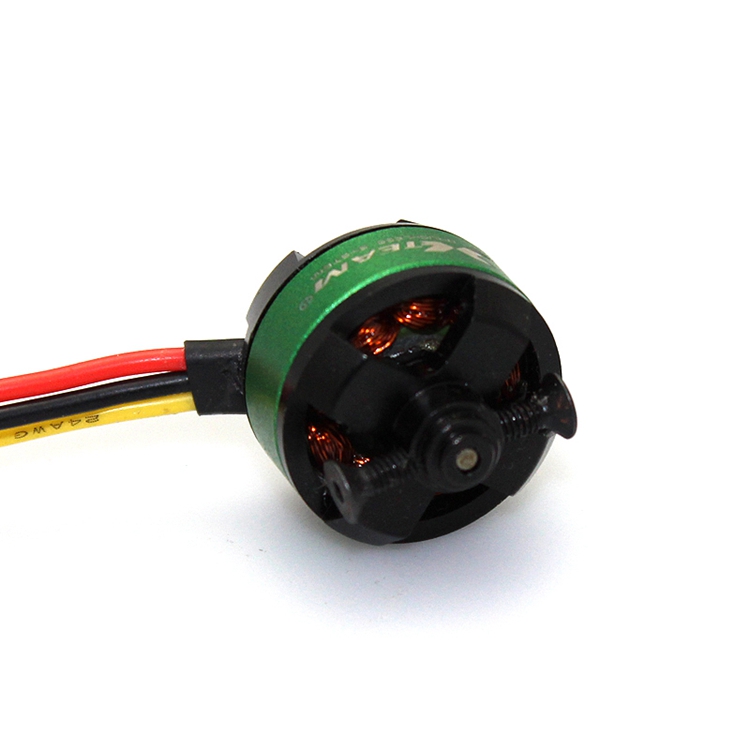

The XTO-1704 Outrunner Brushless Motor for Fixed-wing Aircraft is a high-efficiency power system specifically designed for micro electric aircraft, and it is particularly suitable for small model aircraft with a maximum takeoff weight of less than 200 grams. It adopts an innovative 12-pole outrunner design, paired with curved neodymium-iron-boron magnets, ensuring an optimal internal clearance of the rotor, thus achieving excellent power output and energy efficiency ratio, providing strong and stable support for the flight of micro model aircraft.

Application Areas

Model: XTO-1704

KV Value: 2600KV~2200KV

Voltage Range: 2S LiPo

No-load Current: 1.2A~0.9A

Number of Poles: 12-pole outrunner design

Maximum Power: 40W~45W

Dimensions: Φ21×28mm

Weight: 22g

Structural Features

12-pole Outrunner Design: Adopting a slotted 12-pole outrunner structure, paired with the layout of arc-shaped neodymium magnets, optimizing the air gap design, significantly improving power output and operation efficiency, and ensuring stable performance under micro loads.

Ultra-lightweight and Extremely Compact: Weighing only 15g (from the table) or 22g (additional information), with a small size (Φ21×24mm or Φ21×28mm), it is specifically designed for ultra-light models, minimizing the overall weight of the machine.

Precision Manufacturing Process: The outer shell is made of high-strength lightweight alloy, and the internal rotor has undergone precise dynamic balance treatment, reducing vibration and noise and extending the service life.

Flexible Multi-configuration Adaptation: It provides two combinations of KV values (2600/2200) and the number of turns (12T/15T). Users can choose the high-speed or balanced power version according to their needs.

Application Areas

Ultra-small Electric Aircraft: It is compatible with indoor gliders or micro fixed-wing aircraft, providing lightweight power, and is suitable for low-speed recreational flights.

Micro Unmanned Aerial Vehicles (UAVs): The lightweight design combined with low power consumption characteristics is suitable for indoor reconnaissance or short-distance aerial photography missions.

Micro Remote Control Cars and Model Boats: The compact size is suitable for ultra-small land or water models, providing balanced power output.

Educational Experimental Kits: It is suitable for robotics or STEM education projects, demonstrating the principles of high-efficiency motor technology.

Precautions

Voltage Matching: Please ensure that the voltage of the selected power supply matches the rated voltage of the motor to avoid damage to the motor caused by overvoltage or undervoltage.

Current Control: During use, the magnitude of the current should be reasonably controlled to avoid overheating or damage to the motor caused by long-term overload operation.

Regular Inspection: Regularly clean and inspect the motor to ensure it is in good working condition.

Avoid Water Ingress: The motor should avoid contact with water or other liquids to prevent problems such as internal short circuits and rusting of the motor, which may affect the service life and performance of the motor.

If you are interested in the XTO-1704 Outrunner Brushless Motor for Fixed-wing Aircraft or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

The XTO-17 motors are ideal for small electric airplanes up to 200g.Featuring a slotted 12-pole outrunner design. The curved Neodymagnets offer a perfect gap from the inside of the rotor for optimal power and efficiency.

Features:

• Light weight

• Proven quality
