Description

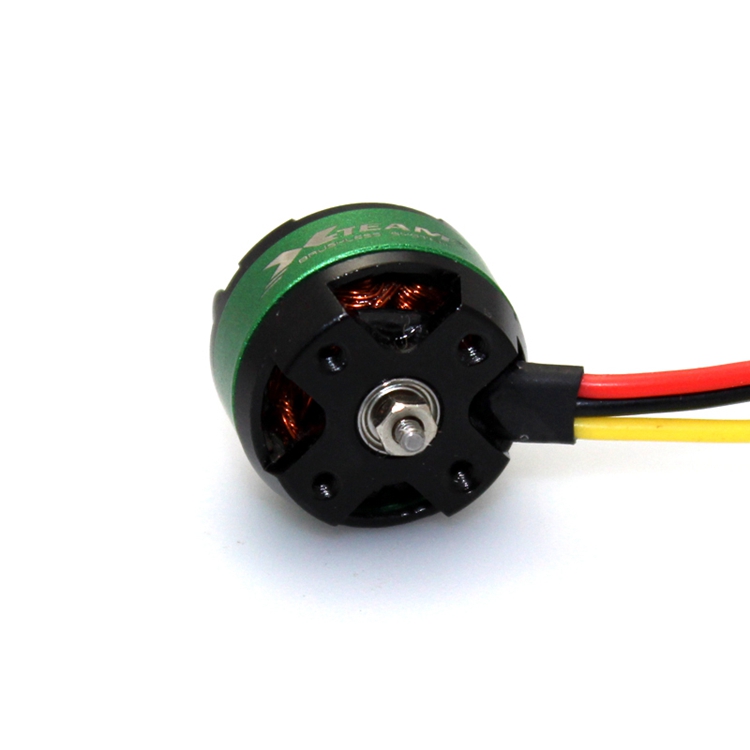

The XTO-1105 Outrunner Brushless Motor for Fixed-wing Aircraft, with its lightweight design, precise manufacturing process, and flexible configuration, has become an ideal power choice in the field of ultra-miniature models. Whether it is used for high-speed racing drones or miniature educational kits that require low power consumption, it can provide stable power support. To ensure the best performance and longer service life of the motor, users need to use it correctly according to the operation requirements. The XTO-1105 Outrunner Brushless Motor for Fixed-wing Aircraft has a streamlined design without sacrificing powerful power, making it suitable for applications with strict requirements for volume and weight. It can provide reliable power output while ensuring low energy consumption, and is particularly suitable for devices that require high-speed flight or long-term operation.
Performance Parameters
Model: XTO-1105
KV Value: 4200KV~3200KV
Voltage Range: 2S LiPo
No-load Current: 0.6A~0.4A
Number of Poles: 12-pole outrunner design
Maximum Power: 30W

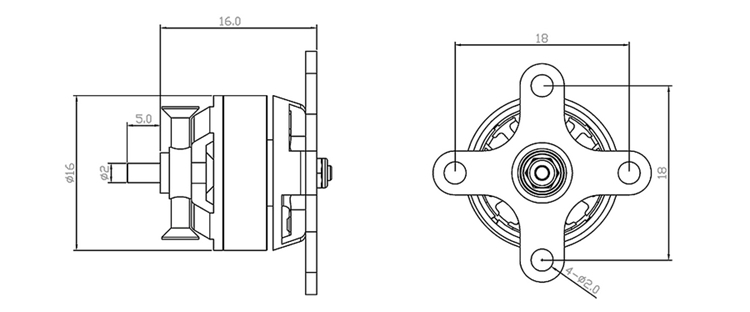

Dimensions: Φ16×16mm
Shaft Diameter and Length: Φ2×5mm
Weight: 8g
Structural Features
12-pole Outrunner Design: Adopting a slotted 12-pole outrunner structure, paired with the layout of arc-shaped neodymium magnets, optimizing the air gap design, significantly improving the magnetic field efficiency, and ensuring high power output and low energy consumption operation under micro loads.
Extremely Lightweight and Compact Design: Weighing only 8g and with a size of Φ16×16mm, it is suitable for ultra-light models, minimizing the overall weight of the machine.
Precision Manufacturing Process: The outer shell is made of high-strength lightweight alloy, and the internal rotor has undergone precise dynamic balance treatment, reducing vibration and noise and extending the service life.
Flexible Multi-configuration Adaptation: It provides two combinations of KV values (4200/3200) and the number of turns (10T/13T). Users can choose the ultra-high-speed or high-torque version according to their needs.
Application Areas
Ultra-small Electric Aircraft: It is compatible with indoor micro fixed-wing aircraft or gliders, providing light power, and is suitable for low-speed flight or recreational scenarios.
Micro Unmanned Aerial Vehicles (UAVs): The lightweight design combined with low power consumption characteristics is suitable for indoor reconnaissance, micro racing drones, or toy-level aerial photography tasks.
Micro Remote Control Cars and Model Boats: The compact size is suitable for ultra-small land or water models, providing balanced power output.
Educational Experimental Kits: It is suitable for STEM education projects or robot development, demonstrating high-efficiency motor technology and the principles of micro power systems.
Precautions
Voltage Matching: Confirm that the voltage matches the motor, and pay attention to the battery capacity and discharge rate to meet the flight endurance and power requirements.
Installation Precision: When installing the motor, ensure that the rotor is coaxial with the propeller or transmission device to avoid vibration and noise caused by installation deviations.
Heat Dissipation Management: When operating under high load or continuously for a long time, reserve heat dissipation space around the motor. If necessary, heat sinks or small fans can be installed to extend the service life of the motor.
Waterproof and Dustproof: When using in a humid environment, protective measures such as installing a waterproof cover or a sealing rubber ring are required.
Regular Maintenance: Regularly check the appearance of the motor, the connecting wires, and the fixing screws to ensure that there is no damage or looseness. For motors that have not been used for a long time, it is recommended to conduct a performance test before reusing them, and put them into use after confirming that they are operating normally.
If you are interested in the XTO-1105 Outrunner Brushless Motor for Fixed-wing Aircraft or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:
Telephone: +86-769-85228181
Email: chris@x-teamrc.com
X-TEAM XTO-11 series motors are ideal for small electric airplanes up to 120g. Featuring a slotted 12-pole outrunner design. The curved Neodymagnets offer a perfect gap from the inside of the rotor for optimal power and efficiency.
Features:
• Light weight
• Proven quality
• many accessories included
