Description

The XTN3 Brushless motor for Cobots and Robot is a brushless DC motor (BLDC) specifically designed for scenarios with high rotational speeds and medium torques. It is compatible with a 24V DC power supply and integrates a 12-bit absolute encoder and CAN bus communication. With a maximum rotational speed of 400RPM, a rated torque of 3N.m, and a lightweight body, this motor is suitable for fields such as industrial automation, precision instruments, and lightweight robots that require quick response and precise control. Its compact design and wide-temperature operating capability further expand the application scenarios in complex environments.

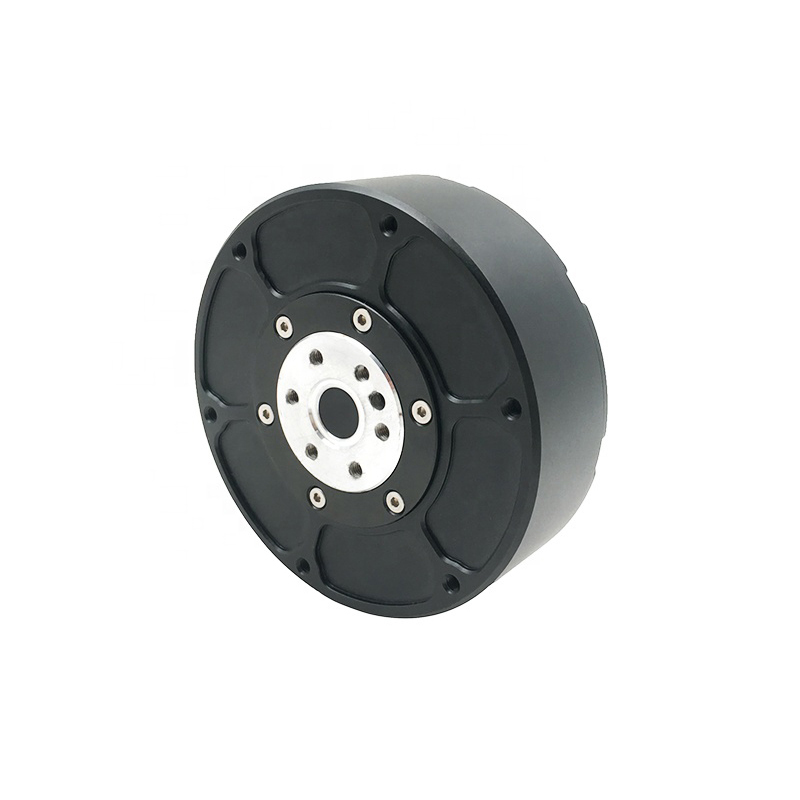

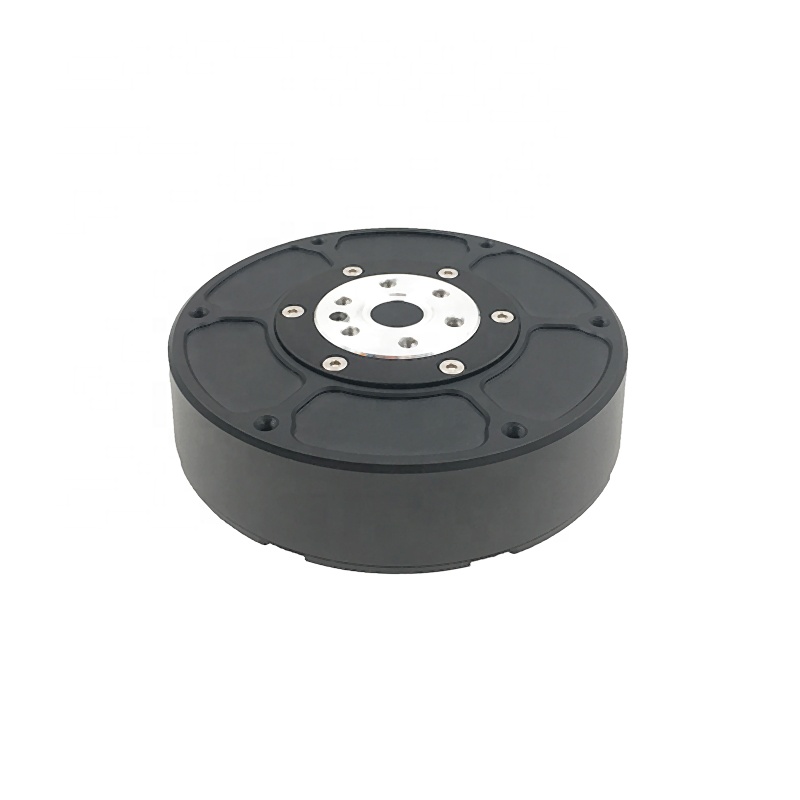

XTN3 Brushless motor for Cobots and Robot

Performance Parameters

Product Model: XTN3

Rated Voltage: 24V

Rated Current: 7.4A

Power: 200W

Rated Torque: 3N.m

Stall Torque: 9N.m

Rated Rotational Speed: 252rpm

Maximum Rotational Speed: 400rpm

Reduction Ratio: 6:1

KV Value: 140KV

Communication Method: CAN Bus

Inter-phase Resistance: 262mΩ

Inter-phase Inductance: 112μH

Encoder: MA702 12bit

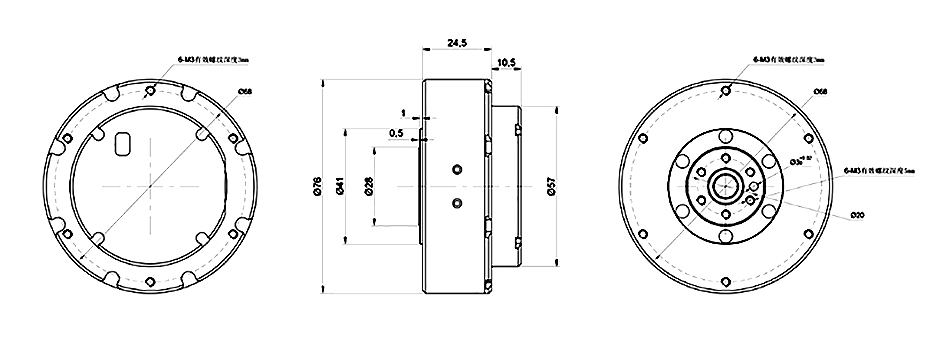

Dimensions: Φ76×36.5mm

Weight: 321g

Operating Temperature: -20°C to 80°C



Structural Features

Compact Design: The XTN3 Brushless motor for Cobots and Robot is small in size and weighs only 321g, making it easy to install in limited spaces and suitable for various compact devices.

High-performance Encoder: It is equipped with a built-in 12-bit absolute encoder, which provides high-precision position feedback to ensure precise control.

High Rotational Speed and Torque: With a rated rotational speed of 252rpm and a maximum rotational speed of up to 400rpm, it also provides a rated torque of 3N.m and a stall torque of 9N.m, meeting the application requirements of high speed and high torque.

High-efficiency Conversion: The high KV value of 140KV enables the motor to obtain a higher rotational speed even at a lower voltage, improving the energy utilization efficiency.

Low-temperature Rise Design: The optimized heat dissipation structure ensures that the motor can still operate stably in high-temperature environments, with a wide operating temperature range.

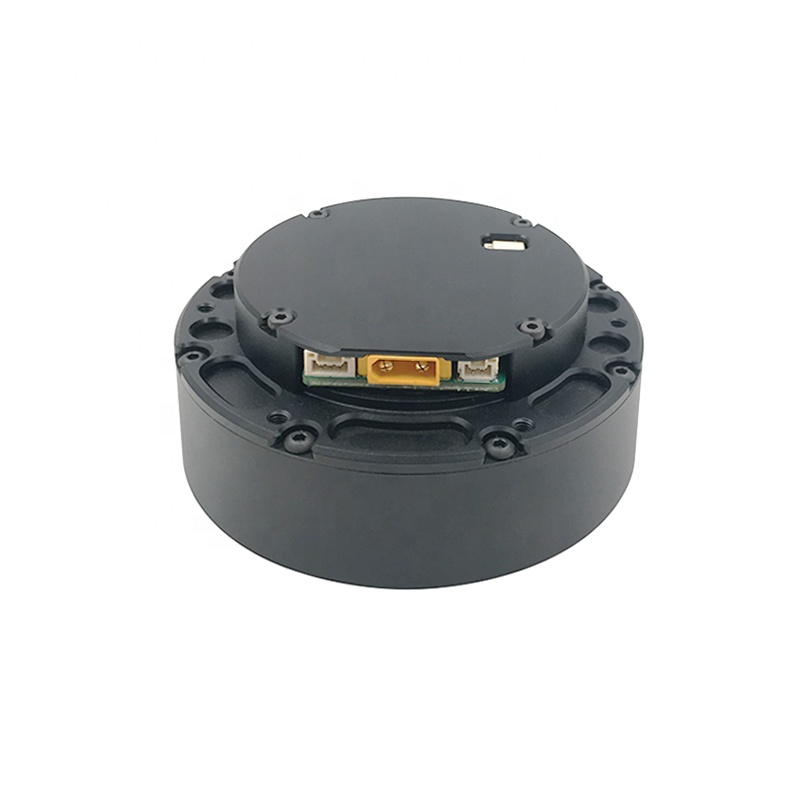

XTN3 Brushless motor for Cobots and Robot

Application Fields

Industrial Automation: Used to drive conveyor belts, automatic doors, robotic arms, etc., to improve production efficiency.

Drones and Electric Vehicles: Provides power for drone propellers and electric vehicle drive systems, enabling efficient and stable flight and driving.

Medical Equipment: Ensures safe and reliable operation in surgical robots, rehabilitation equipment, etc.

Precision Mechanical Equipment: Applied in scenarios such as precise positioning and angle adjustment to ensure high-precision operation.

Precautions

Power Supply Matching: Please ensure that the voltage of the power supply used matches the rated voltage (24V) of the motor to avoid damaging the motor due to excessively high or low voltage.

Current Control: During operation, ensure that the motor current does not exceed the rated current (7.4A) to prevent overheating and damage.

Heat Dissipation Management: When operating under high load for a long time, pay attention to the temperature change of the motor and ensure good ventilation in the working environment.

Installation and Maintenance: When installing, follow the instructions in the product manual and avoid over-tightening the installation screws to prevent damage to the motor housing. Regularly check the motor and its connecting components to ensure there is no looseness or damage.

Safe Operation: Follow relevant safety specifications, wear necessary protective equipment, and avoid direct contact with the rotating parts of the motor to prevent accidents.
