XTN2 Brushless motor for Cobots and Robot

Description

The XTN2 Brushless motor for Cobots and Robot is a high-performance and compact motor product, specifically designed to meet various automation and precision control requirements. It features high efficiency, low noise, and a long service life, and is widely used in fields such as industrial automation, robotics, smart homes, and medical equipment.

Performance Parameters

Model: XTN2

Rated Voltage: 24V

Power: 30W

Rated Torque: 1N.m

Rated Rotational Speed: 300rpm

Maximum Rotational Speed: 400rpm

Operating Voltage Range: 12-24V

Stall Torque: 3N.m

Reduction Ratio: 10:1

Encoder: 12-14-bit resolution absolute angle encoder (optional models such as AS5600/AS5048)

Phase Resistance: 1.4Ω

Phase Inductance: 0.78mH

Rotation Angle: >360°

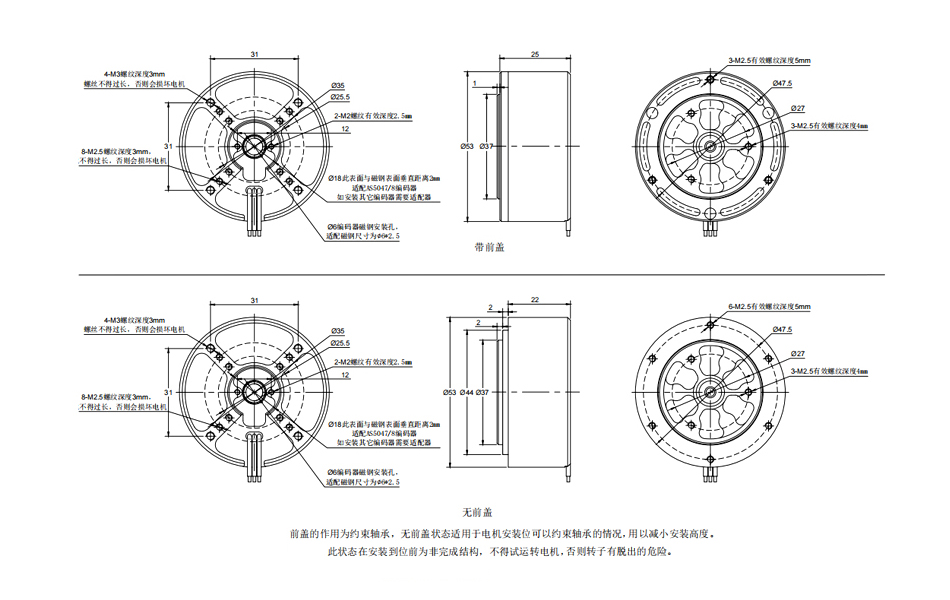

Dimensions: Φ53x26mm

Weight: 140g

Operating Temperature: -20°C to 80°C

Structural Features

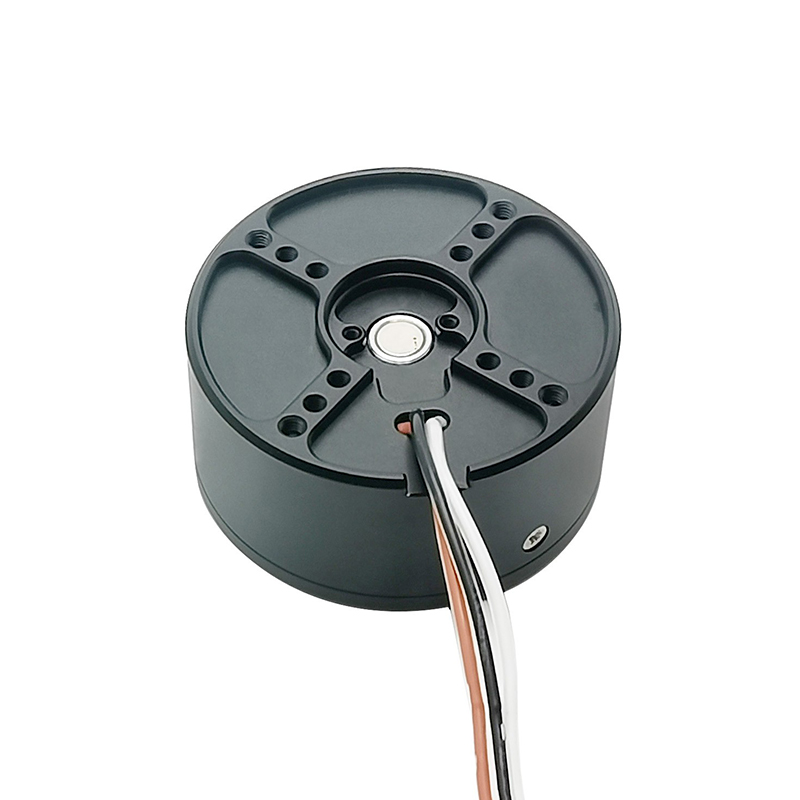

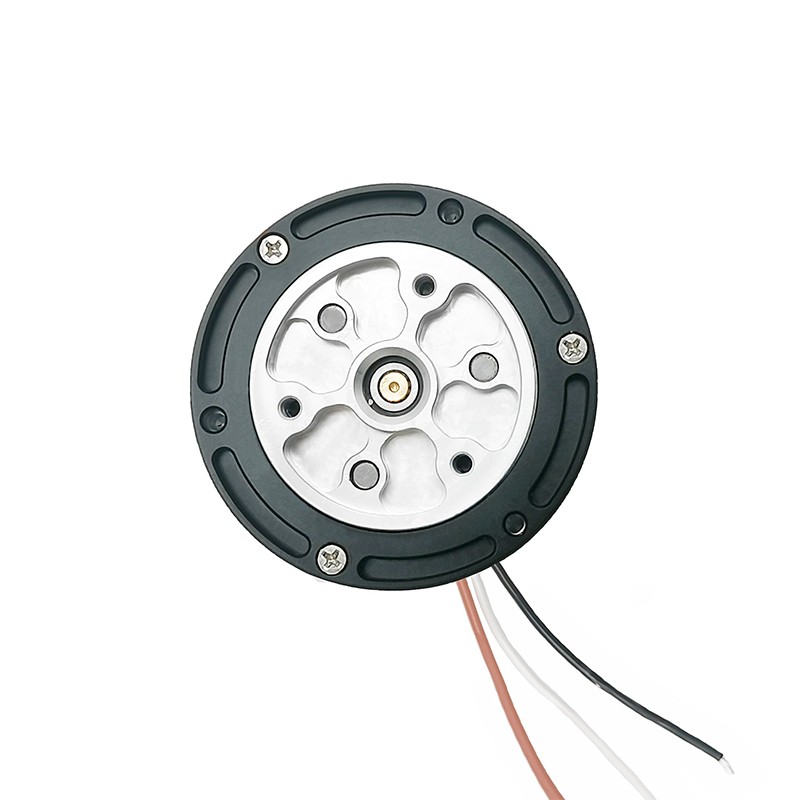

Compact Design: The XTN2 Brushless motor for Cobots and Robot adopts a compact cylindrical design, with a diameter of only 53mm, a height of 26mm, and a weight of only 140g, making it easy to integrate into various compact spaces.

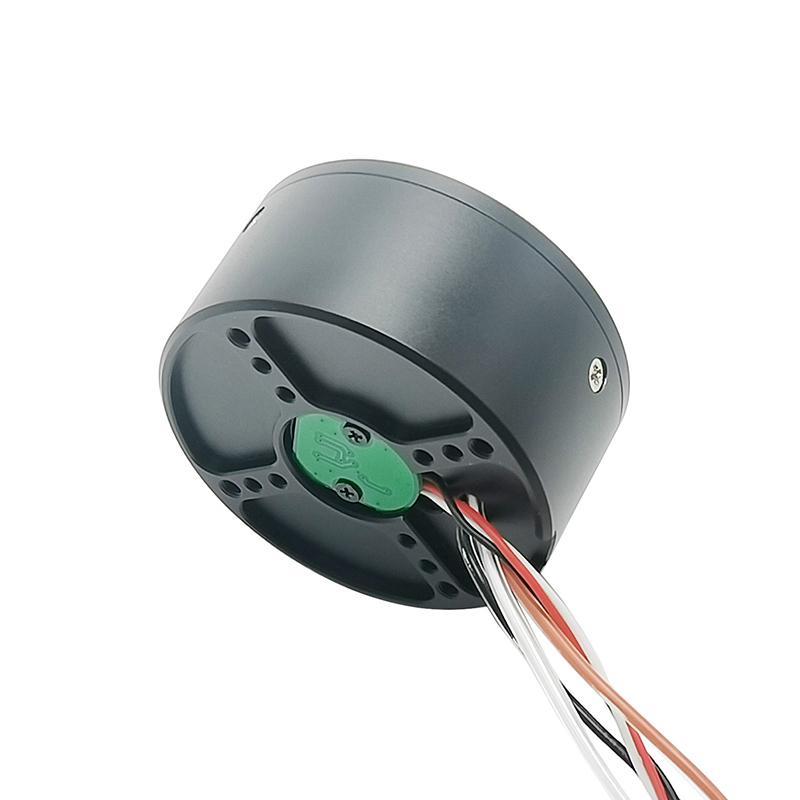

High-performance Encoder: It is equipped with a built-in 12-14-bit resolution absolute angle encoder, which provides high-precision position feedback and is suitable for application scenarios that require precise control.

High Torque Output: Under the rated voltage, the motor can provide a rated torque of 1N.m, and the stall torque is as high as 3N.m, meeting high-load requirements.

Wide Voltage Range: It supports a wide voltage input range of 12-24V, enhancing the adaptability and flexibility of the motor.

Long Service Life Design: High-quality materials and advanced manufacturing processes are used to ensure that the motor can operate stably even in harsh environments and extend its service life.

Rotation Beyond 360°: The motor supports a rotation angle of more than 360°, meeting the requirements for all-round rotation.

Application Fields

Industrial Automation: Used for precise positioning and driving on automated production lines.

Robotics: As a driving motor for robot joints, it provides precise position control and power output.

Smart Home: Used to drive devices such as smart curtains and smart door locks.

Medical Equipment: Achieves precise control and stable operation in medical equipment.

Precautions

Voltage Matching: Please ensure that the input voltage is within the specified range of 12-24V for the motor to avoid damage to the motor caused by excessively high or low voltage.

Heat Dissipation Treatment: When operating under high load for a long time, pay attention to heat dissipation to avoid overheating of the motor.

Load Matching: When selecting the motor, ensure that the load is within the rated torque and rotational speed range of the motor to avoid overloading operation.

Correct Wiring: Please wire the motor correctly according to the wiring diagram to avoid damage to the motor or control failure caused by incorrect wiring.

Regular Maintenance: Regularly check the operating status of the motor and its connecting components to ensure that the motor is in good working condition.

Safety Protection: When operating the motor, please comply with relevant safety regulations, wear necessary protective equipment, and avoid electric shock or mechanical injury.
