Description

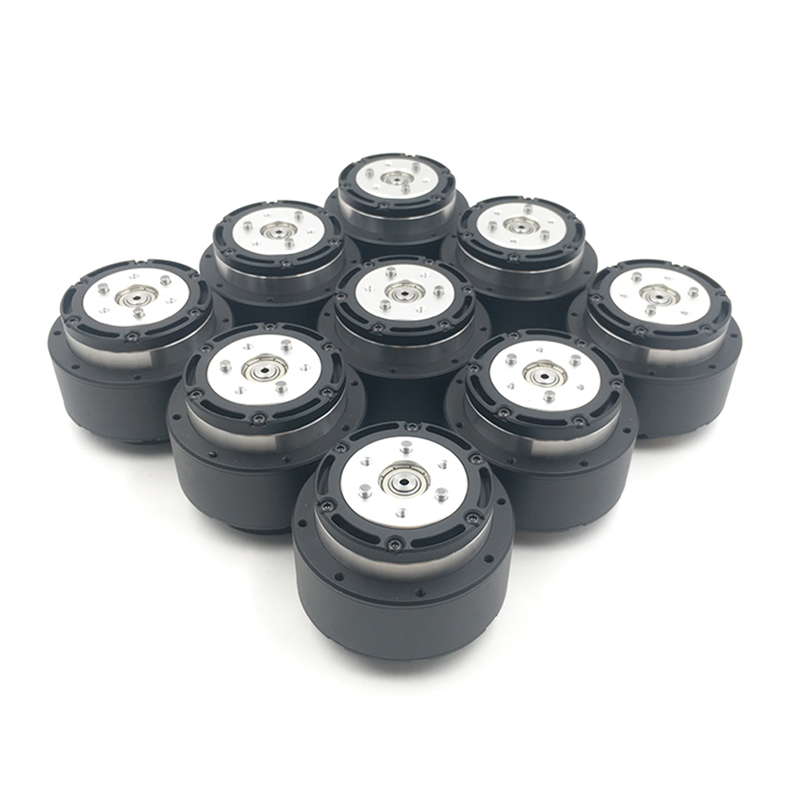

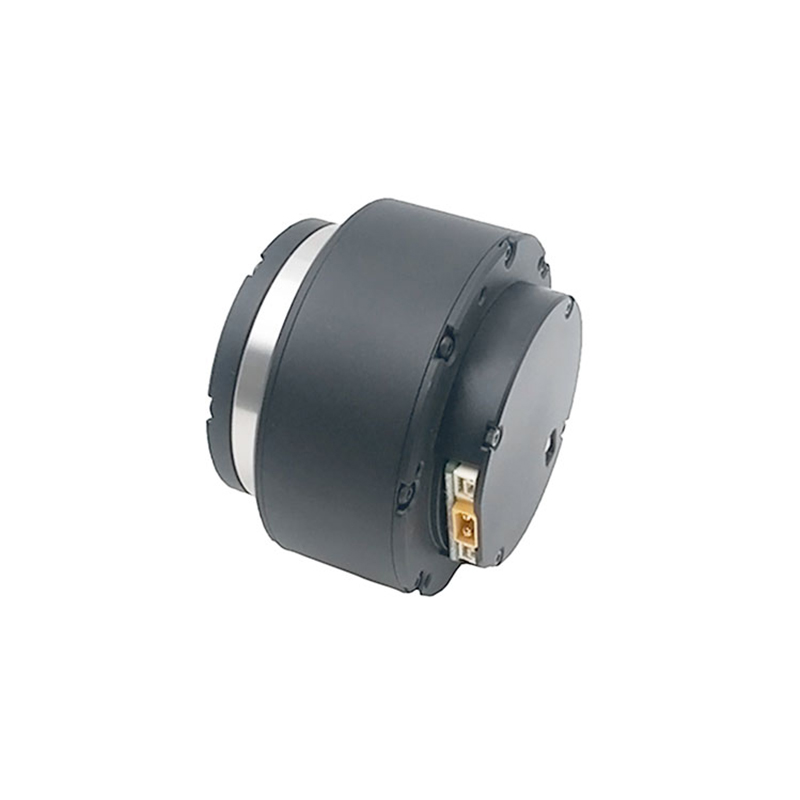

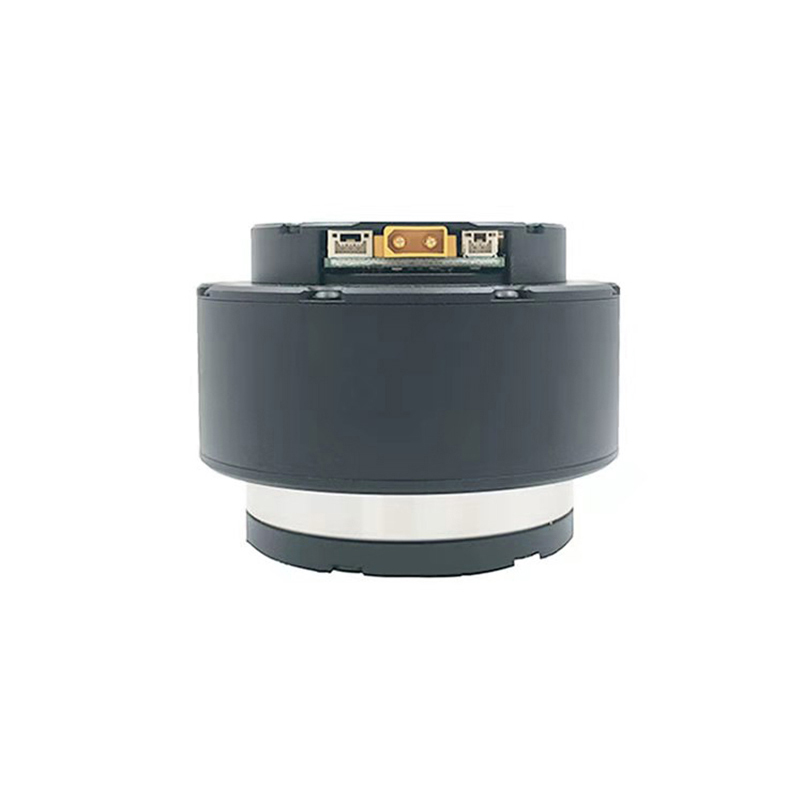

The XTN18 Brushless motor for Cobots and Robot is designed for applications such as collaborative robots (cobots) and robots. With its excellent performance and reliable construction, this motor is widely used in fields such as industrial automation, robotics, medical equipment, and precision mechanical equipment.
Performance Parameters
Product Model: XTN18
Rated Voltage: 24V
Power: 80W
Rated Torque: 18N.m
Rated Rotational Speed: 42rpm
Maximum Rotational Speed: 80rpm
Stall Torque: 45N.m
Reduction Ratio: 36:1
Resolution: 12-bit absolute encoder
Encoder Model: Mag Alpha MA702
Communication Method: CAN Bus
Rotation Angle: >360°
Noise: ≤70dB (A)
Dimensions: Φ76x61mm
Operating Temperature: -40°C to 80°C
Structural Features
Compact Design: The XTN18 Brushless motor for Cobots and Robot is small in size (Φ76x61mm), making it easy to install in limited spaces and suitable for various compact devices.
High-performance Encoder: It is equipped with a built-in 12-bit absolute encoder (Mag Alpha MA702), which provides high-precision position feedback to ensure precise control.
High Torque Output: With a rated torque of 18N.m and a stall torque of up to 45N.m, it is suitable for application scenarios that require high load capacity.
Wide Rotational Speed Range: From the rated rotational speed of 42rpm to the maximum rotational speed of 80rpm, it can meet various speed requirements.
Low-temperature Rise Design: The optimized heat dissipation structure ensures that the motor can still operate stably in high-temperature environments, with a wide operating temperature range (-40°C to 80°C).
Application Fields
Industrial Automation: Used to drive conveyor belts, automatic doors, robotic arms, etc., to improve production efficiency.
Robotics: Provides power for robot joints to achieve precise motion control.
Medical Equipment: Ensures safe and reliable operation in surgical robots, rehabilitation equipment, etc.
Precision Mechanical Equipment: Applied in scenarios such as precise positioning and angle adjustment to ensure high-precision operation.
Precautions
Power Supply Matching: Please ensure that the voltage of the power supply used matches the rated voltage (24V) of the motor to avoid damaging the motor due to excessively high or low voltage.
Heat Dissipation Management: Pay attention to the temperature change of the motor and ensure good ventilation in the working environment.
Installation and Maintenance: When installing, follow the instructions in the product manual and avoid over-tightening the installation screws to prevent damage to the motor housing. Regularly check the motor and its connecting components to ensure there is no looseness or damage.
Safe Operation: When operating the motor, be sure to follow relevant safety specifications, wear necessary protective equipment, and avoid direct contact with the rotating parts of the motor to prevent accidents.
If you are interested in the XTN18 Brushless motor for Cobots and Robot or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:
Tel: +86-769-85228181
Email: chris@x-teamrc.com
