XTI-4092 Inrunner Brushless Motor for 1/7th R/C car

Description

The XTI-4092 Inrunner Brushless Motor for 1/7th R/C car is specifically designed for 750-1/8 or 1/5 scale vehicles, integrating cutting-edge technology and excellent performance. With their diverse models, precise parameter configurations, and wide range of application fields, these motors have become an ideal choice for electric tools, drones, remote control cars, and other fields.

Performance Parameters

Voltage and Power: The motor supports a voltage range of 18 to 50V, with a maximum power of 4200W, which can provide powerful power for model vehicles.

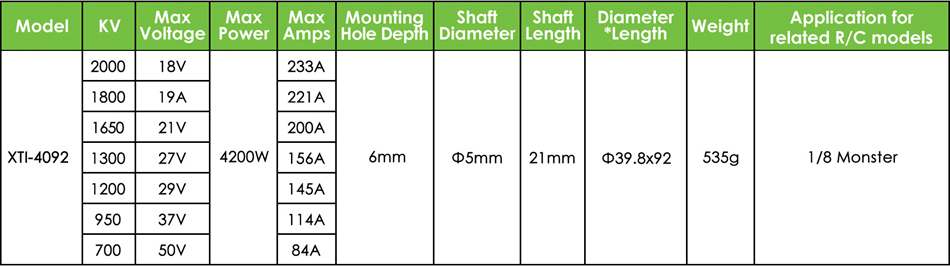

Current and Torque: Depending on different KV values, the maximum torque and maximum current of the motor vary, ranging from 114A to 233A, ensuring the stable operation of the motor under various loads.

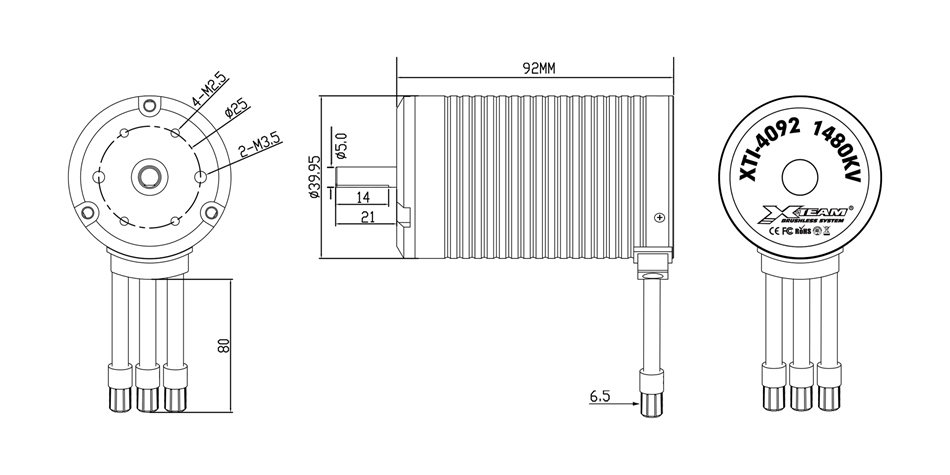

Dimensions and Weight: The shaft diameter of the motor is Φ5mm, the length is 21mm, the stator diameter is Φ39.8mm, the length is 92mm, and the weight is 535g. The compact design makes it suitable for installation in model vehicles with limited space.

Encoder: The built-in AS5048A encoder provides high-precision position feedback, ensuring the precise control of the vehicle.

Winding Configuration: The motor adopts a 12G 4P winding configuration and supports Delta/Star (△/Y) winding methods, optimizing the electromagnetic performance of the motor.

Structural Features

Stator Slot Design: The 12G 4P (12 slots and 4 poles) design optimizes the electromagnetic performance and improves efficiency.

Sensorless Technology: Adopting sensorless control simplifies the system complexity and improves reliability.

Precise Winding: Hand-wound to maximize the copper filling rate and improve the conductivity efficiency.

Balanced Rotor: The precisely balanced rotor structure ensures efficient operation and excellent power performance.

High-performance Materials: The nickel-plated sintered neodymium iron boron rotor enhances acceleration performance, braking ability, and stability under high-temperature conditions.

Application Areas

Applicable Vehicle Models: Models with high-power requirements such as 1/8 monster trucks, 1/5 scale racing cars, and rock crawlers.

Applicable Electronic Speed Controllers: It is recommended to match with a sensorless electronic speed controller above 150A to match the high current output.

Performance Advantages: The high-speed version (such as RV700) is suitable for achieving the maximum speed on flat roads; the low RV version (such as RV2000) is suitable for climbing and scenarios requiring high torque.

Precautions

Compatibility: Please select the appropriate motor model according to your equipment needs to ensure a perfect match between the motor and the equipment.

Heat Dissipation: During long-term high-load operation, please ensure good heat dissipation conditions to avoid performance degradation due to overheating.

Load Control: Avoid the long-term overload operation of the motor to extend its service life and maintain stable performance.

Safe Operation: Before operation, please ensure that you are familiar with the motor’s instruction manual, wear appropriate personal protective equipment, and follow the safety operation procedures.

If you are interested in the XTI-4092 Inrunner Brushless Motor for 1/7th R/C car or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Available for class 750-1/8th or 1/5th scale vehicles

Number of stator slot: 12G 4P

Sensored or sensorless: Sensorless

Diameter of shaft: Φ4mm-Φ8mm

Motor size: Diameter Φ40 / Length 68~92mm

Stator diameter: Φ38mm

Available winding: Delta/Star (△/Y)

Technique:

• Hand-wound for maximum copper fill.

• Precision-balanced rotor will boost the efficiency and power performance of the motor.

• Nickel-plated sintered neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions.
