XTI-3670 Inrunner Brushless Motor for 1/10th R/C car

Description

The XTI-3670 Inrunner Brushless Motor for 1/10th R/C car is an inrunner brushless DC motor specifically designed for high-performance remote control models. With its excellent performance, precise craftsmanship, and diverse applications, it has become an ideal choice for professional players. Whether it is for racing, climbing, or electric ducted fan (EDF) applications, the XTI-3670 Inrunner Brushless Motor for 1/10th R/C car can provide strong power and reliable performance to meet the needs of different scenarios.

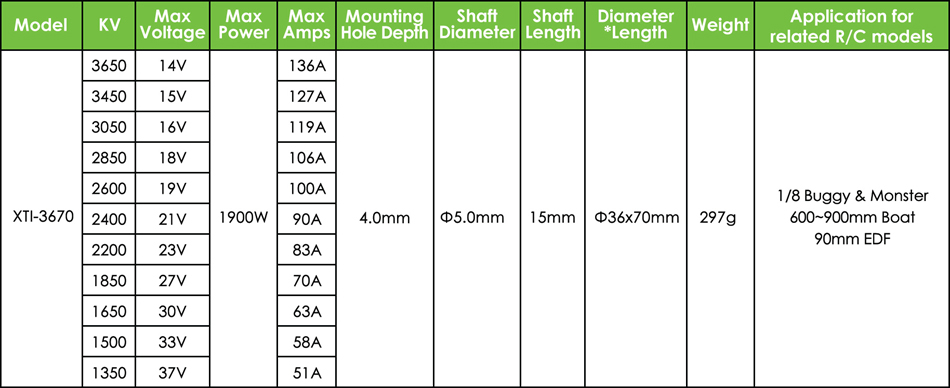

Performance Parameters

Model: XTi-3670

KV Value Range: 3650~ 51

Maximum Voltage: 14V ~ 45V

Maximum Power: 1900W

Maximum Current: 136A ~ 51A

Shaft Diameter and Length: Φ5.0×15 mm

Shaft Diameter: Φ3.17 × Φ5 mm

Weight: 297 grams

Structural Features

12-slot 4-pole (12S4P) Magnetic Circuit Design: Optimizes electromagnetic efficiency, reduces torque fluctuations, and ensures smooth operation.

Nickel-plated Sintered Neodymium Magnet Rotor: Resistant to high temperatures (>150℃), providing strong acceleration and braking performance, and adapting to extreme working conditions.

Hand-wound High-purity Copper Wire: Maximizes the copper filling rate, reduces resistance losses, and improves energy efficiency.

Precise Dynamic Balance Calibration: Reduces vibration, extends the service life of the bearing, and ensures stability at high rotational speeds.

Lightweight Nickel-based Alloy Housing: Balances heat dissipation and impact resistance, suitable for high-intensity usage environments.

Application Areas

1/8 Off-road Vehicles and Monster Trucks: The high KV value version (such as KV3650) is suitable for racing scenarios where extreme speed is pursued, and the low KV value version (such as KV51) provides ample torque, suitable for climbing and complex terrains.

90 mm EDF: The medium KV value version (such as KV2000) is suitable for electric ducted fan applications, providing efficient thrust and stable performance.

Professional-level Models: Suitable for 1/8 scale vehicles and EDF applications. When paired with a sensorless electronic speed controller above 80A, it can fully exert its performance.

Precautions

Proper Installation: When installing the motor, please ensure that it is installed correctly according to the instructions in the product manual. Pay special attention to the matching of the shaft hole depth, shaft diameter, and motor length to avoid damage or performance degradation caused by improper installation.

Voltage Matching: Ensure that the power supply voltage matches the rated voltage of the motor.

Heat Dissipation Treatment: Under long-term operation or high-load conditions, please ensure that there is enough heat dissipation space around the motor and take necessary heat dissipation measures to avoid damage or performance degradation caused by overheating.

Regular Inspection and Maintenance: Please regularly check the operation status and wear of the motor. If abnormal noises, vibrations, or temperature increases are found, please stop the machine in time for inspection and take corresponding maintenance measures.

Safe Operation: Ensure compliance with relevant safety regulations and operating procedures. Avoid direct contact with rotating parts by hand; ensure that the power supply is completely cut off before operation, etc.

If you are interested in the XTI-3670 Inrunner Brushless Motor for 1/10th R/C car or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Available for class 550-1/10th scale vehicles

Number of stator slot: 12G 4P

Sensored or sensorless: Sensorless

Diameter of shaft: Φ3.17mm-Φ5mm

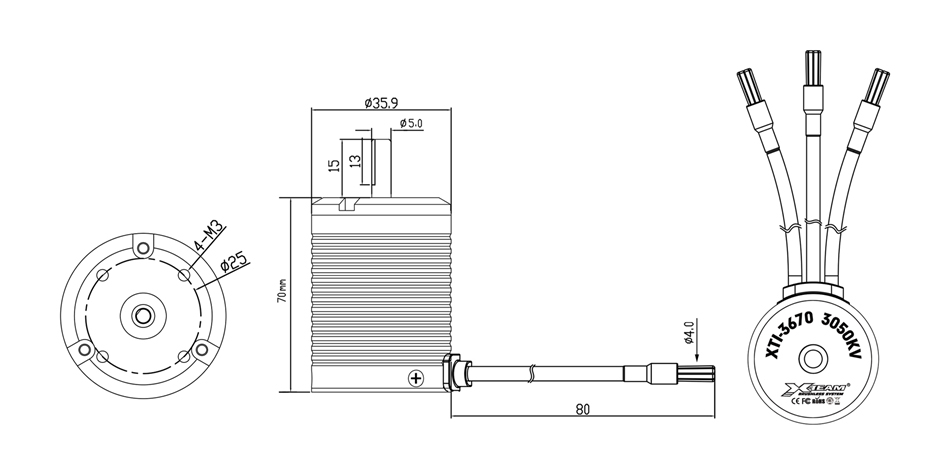

Motor size: Diameter 36 / Length 70mm

Stator diameter: Φ34.3mm

Available winding: Delta/Star (△/Y)

Technique:

• Hand-wound for maximum copper fill.

• Precision-balanced rotor will boost the efficiency and power performance of the motor.

• Nickel-plated sintered neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions.
