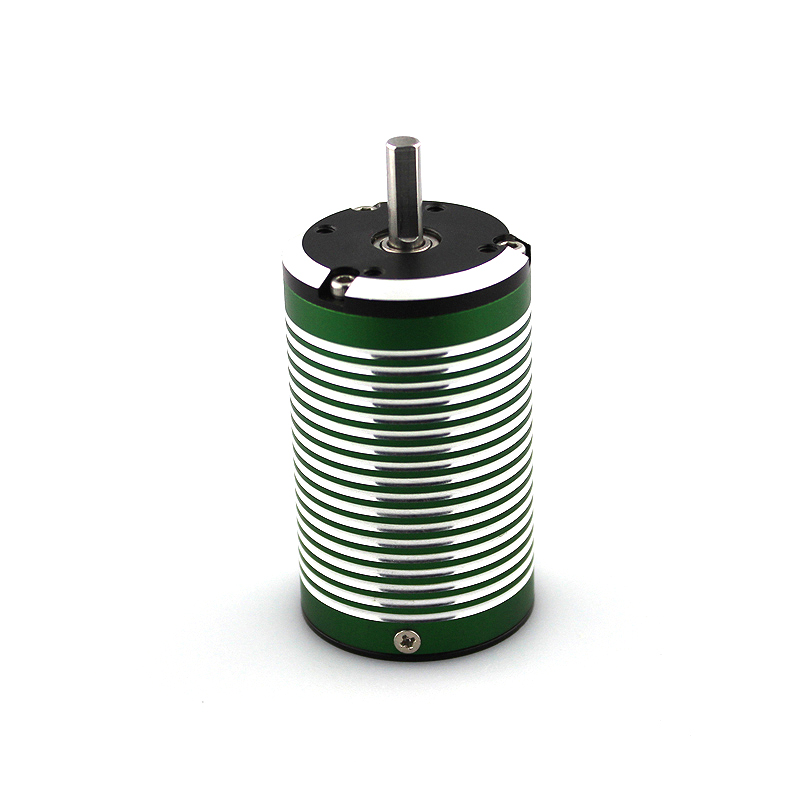

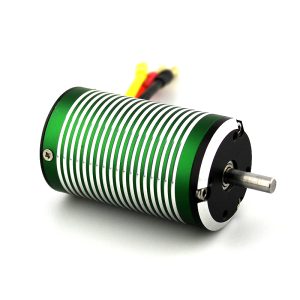

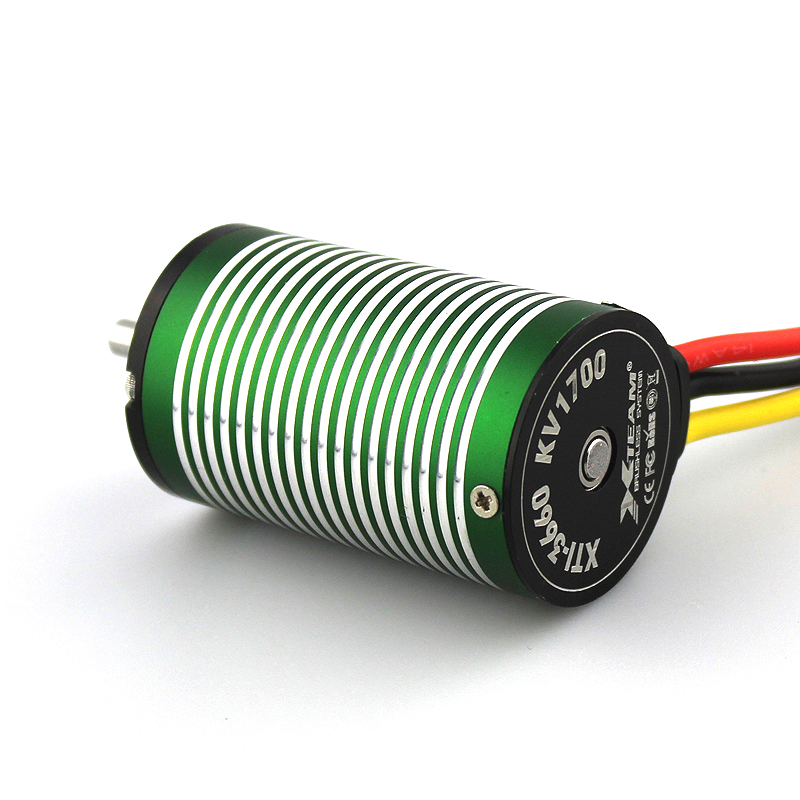

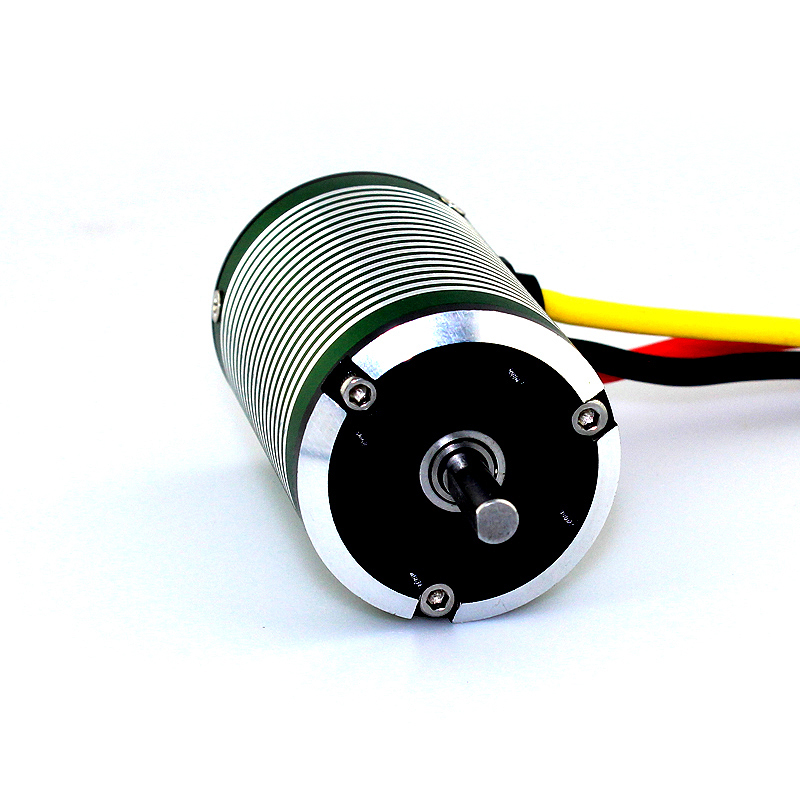

XTI-3660 Inrunner Brushless Motor for 1/10th R/C car

Description

The XTI-3660 Inrunner Brushless Motor for 1/10th R/C car is a high-performance and high-speed brushless DC (BLDC) motor specifically designed for 1/8 racing off-road vehicles, 550-1/10 scale model cars, and 80mm electric ducted fans (EDF). The core advantages of the XTI-3660 Inrunner Brushless Motor for 1/10th R/C car lie in its high-speed characteristic of 4650KV, a peak power of 1700W, and a compact and lightweight structure, which can provide a strong power output in high-speed maneuvering and high-load scenarios.

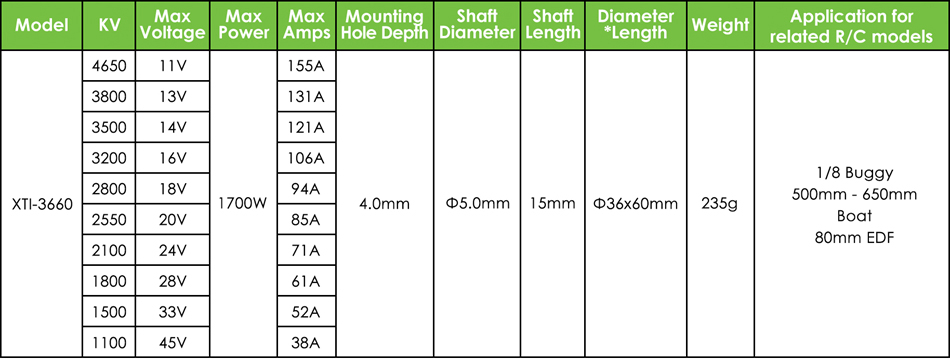

Performance Parameters

Model: XTi-3660

KV Value: 4650KV~1100KV

Maximum Power: 1700W

Maximum Current: 155A~38A

Operating Voltage Range: 11V~45V

Motor Type: Inrunner

Weight: 235g

Dimensions: Φ36×60mm

Shaft Diameter and Length: Φ5.0×15mm

Structural Features

High-speed Stator Design: Adopting a 12-slot 4-pole (12G4P) configuration to optimize the magnetic field distribution, enhancing the torque response speed and operation smoothness.

Hand-wound Wiring: Maximizes the copper filling rate, improving the power density and efficiency.

Nickel-plated Neodymium Magnet Rotor: The combination of sintered neodymium magnets and a nickel plating ensures the acceleration performance and braking ability in high-temperature environments.

Precise Dynamic Balance: Reduces vibration and noise, improving the motor’s efficiency and service life.

Multi-voltage Adaptability: Supports a lithium battery configuration from 2S to 12S, covering a wide voltage range of 11V~45V, flexibly adapting to the needs of different models.

Application Areas

Racing Model Cars: Provides strong power for 1/8 racing off-road vehicles and 550-1/10 scale model cars, supporting high-speed sprints and performance on complex tracks.

Electric Ducted Fans: Suitable for 80mm EDF, providing high thrust and high-speed flight performance.

High-performance Models: Such as scenarios that require high speed and high power, like racing boat models and aircraft.

Precautions

Electrical Safety: The voltage should not exceed 45V (12S), and the continuous current should be controlled within 155A to avoid overheating of the windings or demagnetization of the magnets.

Electronic Speed Controller Matching: A high-performance electronic speed controller (ESC) that supports 4650KV should be selected, and overcurrent protection should be set to prevent stalling or loss of control.

Heat Dissipation Management: When operating under high load, a cooling fan should be installed to ensure that the temperature is lower than 80°C.

Installation Specification: When installing, it is necessary to ensure that the motor shaft is strictly coaxial with the load shaft to reduce the wear of the bearing caused by eccentric vibration.

Regular Inspection: Clean the dust inside the motor every 50 hours and check whether the insulation layer of the windings is damaged.

Dust and Moisture Prevention: When used in a dusty or humid environment, a protective cover should be installed or three-proof treatment (dust-proof, waterproof, and corrosion-proof) should be carried out.

If you are interested in the XTI-3660 Inrunner Brushless Motor for 1/10th R/C car or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Available for class 550-1/10th scale vehicles

Number of stator slot: 12G 4P

Sensored or sensorless: Sensorless

Diameter of shaft: Φ3.17mm-Φ5mm

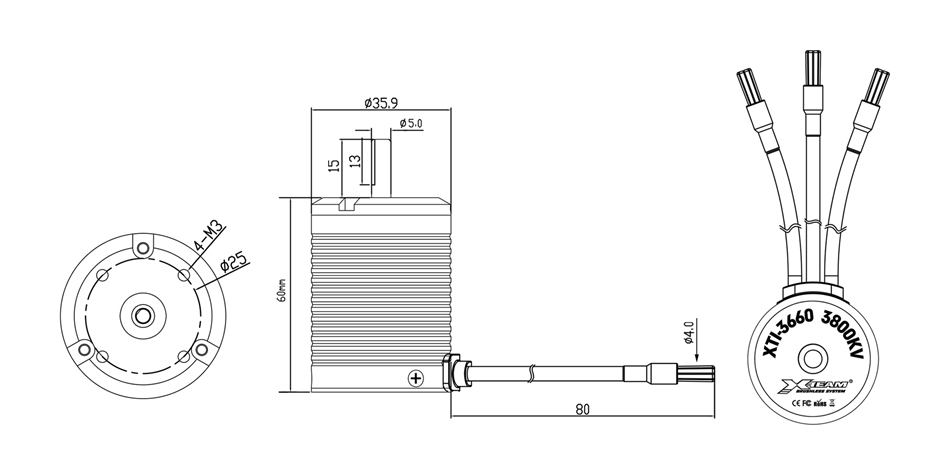

Motor size: Diameter 36 / Length 60mm

Stator diameter: Φ34.3mm

Available winding: Delta/Star (△/Y)

Technique:

• Hand-wound for maximum copper fill.

• Precision-balanced rotor will boost the efficiency and power performance of the motor.

• Nickel-plated sintered neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions.
