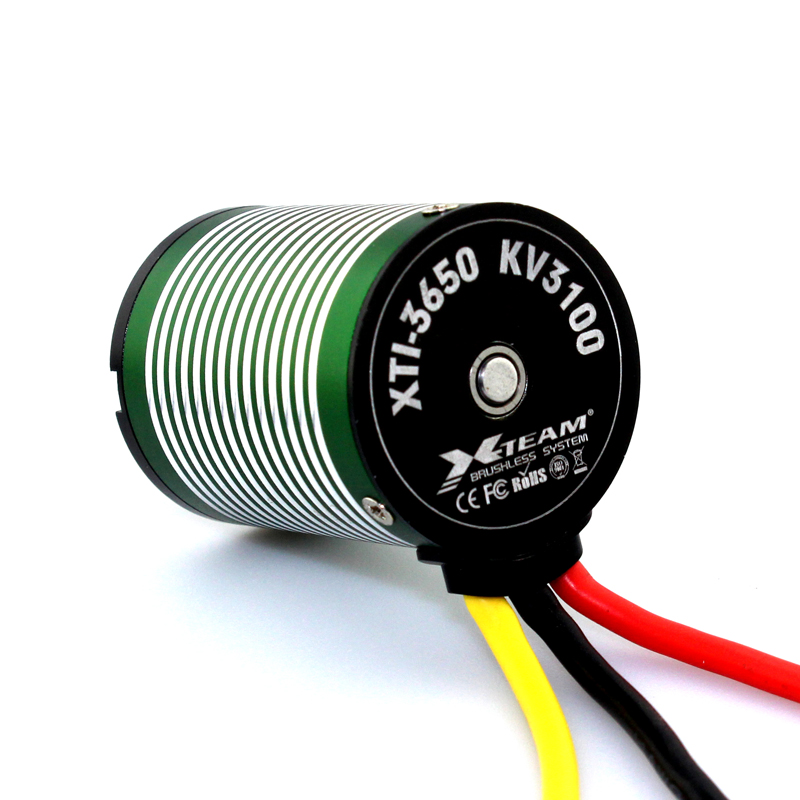

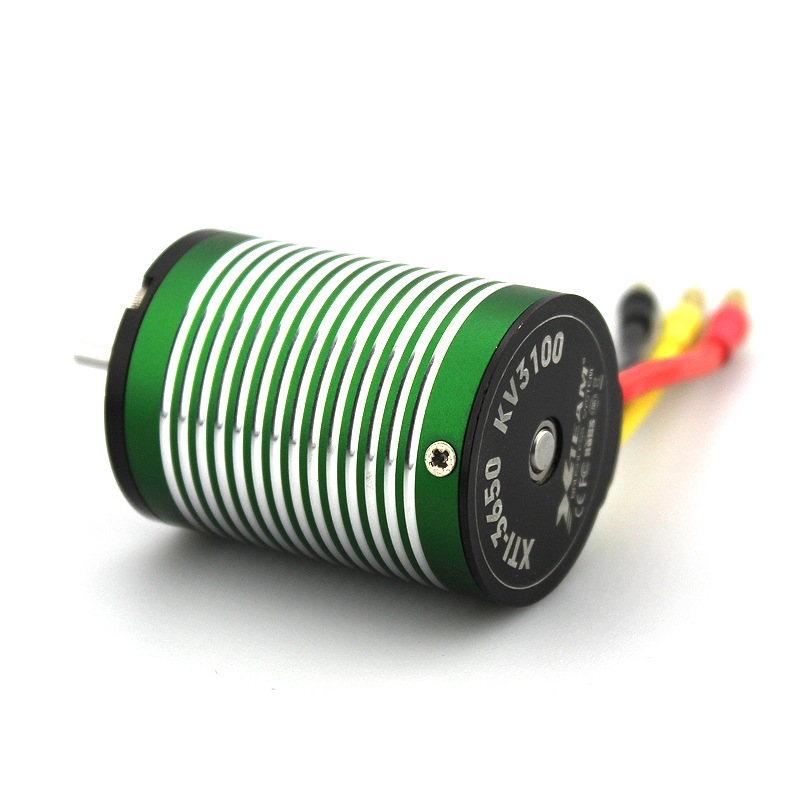

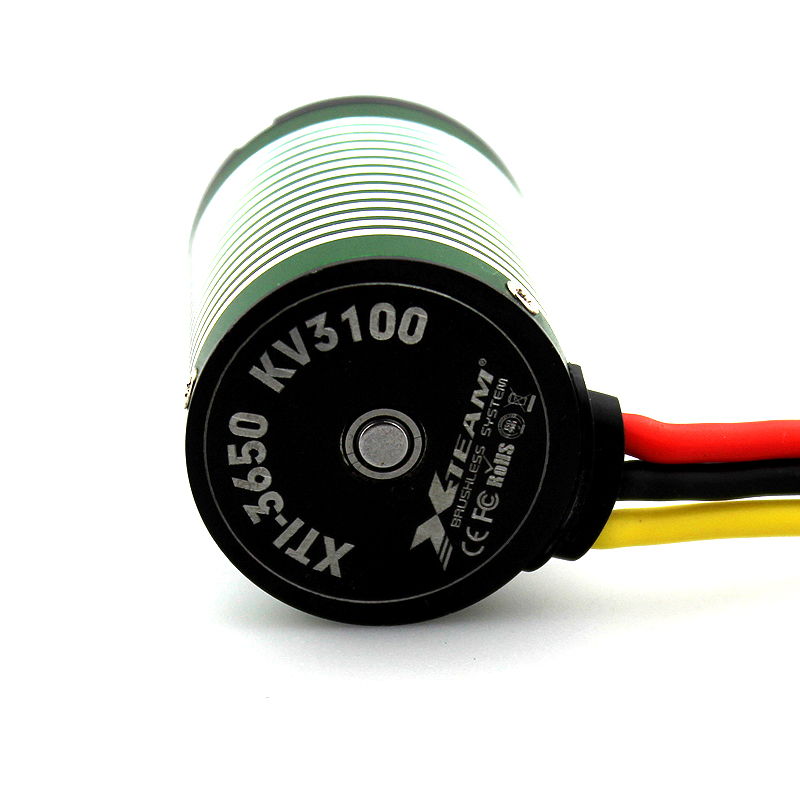

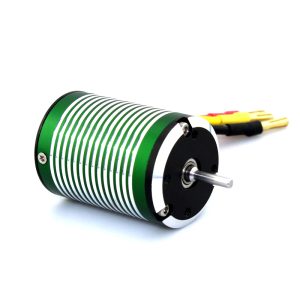

XTI-3650 Inrunner Brushless Motor for 1/10th R/C car

Description

The XTI-3650 Inrunner Brushless Motor for 1/10th R/C car is a high-performance motor specifically designed for 540 to 1/10 scale remote control model vehicles. With its excellent performance parameters, structural features, and application scope, this motor has become an ideal choice for model enthusiasts and professional racers.

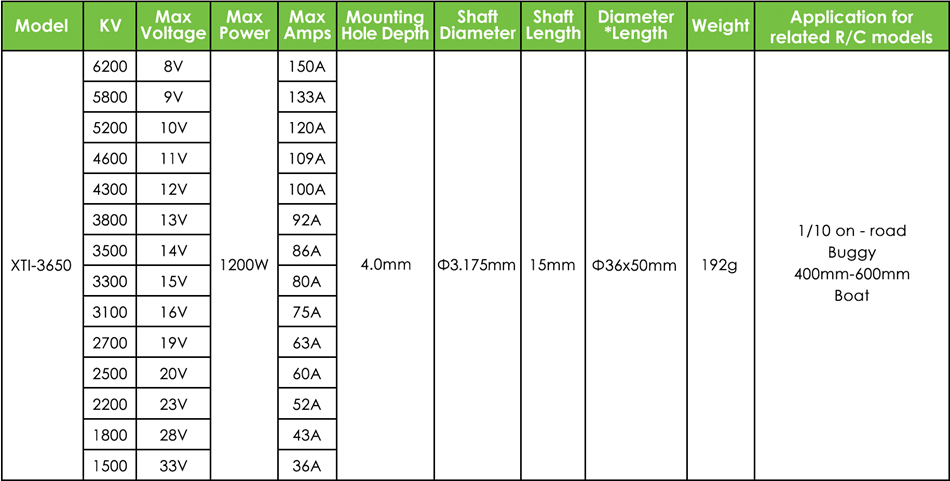

Performance Parameters

Model: XTi-3650

KV Value Range: 6200KV~1500KV

Maximum Voltage: 8V~33V

Maximum Power: 1200W

Maximum Current: 150A~36A

Shaft Diameter and Length: Φ3.175×15 mm

Weight: 192 grams

Structural Features

Hand-wound Process: The motor adopts a hand-wound process to ensure maximum copper filling, thereby improving the motor’s efficiency and performance.

Precisely Balanced Rotor: The precisely balanced rotor design enhances the motor’s efficiency and power performance.

Nickel-plated Sintered Neodymium Iron Boron Rotor: Using nickel-plated sintered neodymium iron boron material ensures the motor’s maximum acceleration, braking force, and performance under high-temperature conditions.

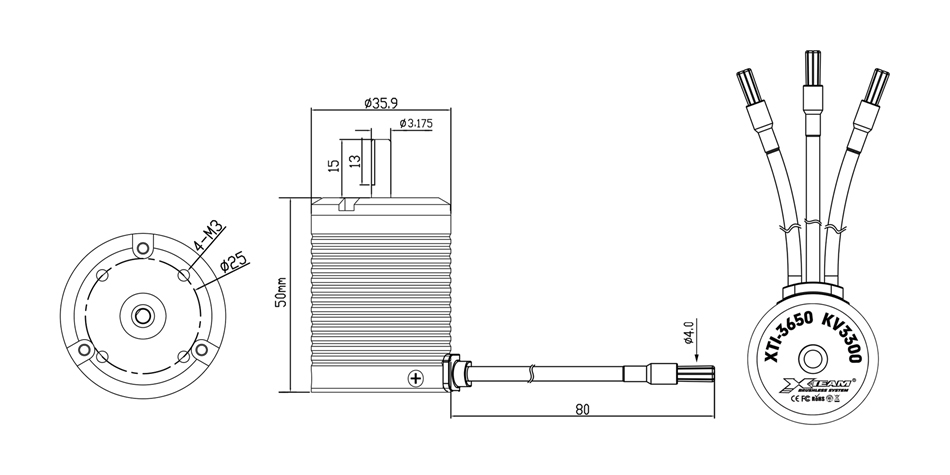

Mounting Hole Design: The motor has a mounting hole depth of 4.0mm. The stator mounting holes with a diameter of Φ36mm are equipped with 4 M2 threaded holes, making installation and fixation convenient.

Application Areas

1/10 Racing Cars: The high KV value version (such as KV6200) is suitable for racing scenarios where extreme speed is pursued, and the low KV value version (such as KV1500) provides ample torque, making it suitable for complex terrains.

Small Models: The medium KV value version (such as KV3300) is suitable for small model applications, providing efficient thrust and stable performance.

Professional-level Models: Suitable for 1/10 scale vehicles and small models. When paired with a sensorless electronic speed controller above 80A, it can fully exert its performance.

Precautions

Load Limitation: According to the motor’s maximum torque and maximum current parameters, avoid exceeding the recommended load for a long time to prevent affecting the motor’s service life and performance.

Heat Dissipation Measures: When operating under high load or for an extended period, the motor may generate heat. It is recommended to take appropriate heat dissipation measures, such as adding heat sinks or fans, to ensure the normal operation of the motor.

Installation and Debugging: When installing the motor, ensure that all threaded holes are firmly connected to avoid mechanical failures caused by looseness. At the same time, conduct thorough debugging before the first use to ensure that the motor’s rotation direction and torque output meet expectations.

Maintenance and Upkeep: Regularly check components such as the motor’s connecting wires and encoder to ensure their normal operation. If any abnormal conditions are found, repair or replace the relevant components in a timely manner to extend the motor’s service life.

If you are interested in the XTI-3650 Inrunner Brushless Motor for 1/10th R/C car or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Available for class 540-1/10th scale vehicles

Number of stator slot: 12G 4P

Sensored or sensorless: Sensorless

Diameter of shaft: Φ3.17mm-Φ5mm

Motor size: Diameter 36 / Length 50mm

Stator diameter: Φ34.3mm

Available winding: Delta/Star (△/Y)

Technique:

• Hand-wound for maximum copper fill.

• Precision-balanced rotor will boost the efficiency and power performance of the motor.

• Nickel-plated sintered neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions.
