XTI-2860 Inrunner Brushless Motor for 1/12th R/C car

Description

The XTI-2860 Inrunner Brushless Motor for 1/12th R/C car is designed to meet the high-performance requirements of 390 to 1/12 or 1/10 scale remote control model vehicles. With its excellent performance parameters, advanced structural design, and wide application adaptability, it has become the first choice for model enthusiasts and professional racers.

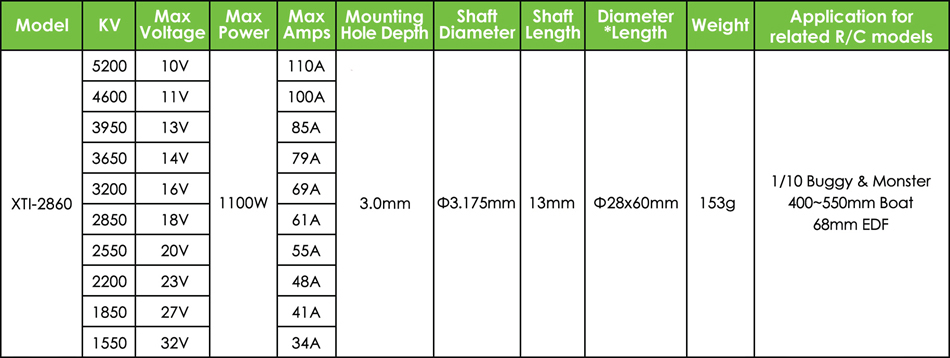

Performance Parameters

Model: XTi-2860

KV Value Range: 5200KV ~ 1550KV

Maximum Voltage: 10V ~ 32V

Maximum Power: 1100W

Maximum Current: 110A ~ 34A

Shaft Diameter and Length: Φ3.175×13 mm

Weight: 153 grams

Structural Features

Precision Manufacturing Process: We adopt advanced manufacturing processes and materials to ensure the durability and precision of the motor. This includes precise bearing and sealing technologies to reduce friction and wear.

Efficient Heat Dissipation System: To ensure the stable operation of the motor under high loads, we have designed an efficient heat dissipation system. This includes special heat dissipation slots and optimized air flow paths to ensure that the motor can work continuously and efficiently.

Multiple Installation Options: The motor is equipped with multiple options for mounting hole diameters and shaft diameters to adapt to different R/C models and application scenarios. This enables our motor to flexibly meet various needs.

Application Areas

Remote Control Cars: Our motor provides sufficient torque and speed to support the strong performance of various remote control cars.

Drones: For the specific needs of drones, we offer motor options with high rotational speeds and low weights to ensure stable flight performance and endurance.

Model Boats: For model boat applications that require strong propulsion, our motor can provide continuous and reliable power output.

Precautions

Safety First: When using the XTI-2860 Inrunner Brushless Motor for 1/12th R/C car, always follow the safety operation procedures. When replacing or repairing the motor, make sure to disconnect the power supply and follow all applicable safety standards.

Proper Installation: Ensure that the motor is properly installed in your R/C model. Use the correct tools and methods to fix the motor and follow the manufacturer’s installation guide.

Maintenance and Inspection: Regularly check the working status of the motor and the drive system. If any abnormalities or signs of wear are found, stop using it immediately and carry out necessary repairs or replacements.

Reasonable Use: Please select the appropriate motor model and performance parameters according to your R/C model and application scenario. Avoid using the motor beyond its rated parameters to extend its service life.

If you are interested in the XTI-2860 Inrunner Brushless Motor for 1/12th R/C car or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Available for class 390-1/12th or 1/10th scale vehicles

Number of stator slot: 12G 4P

Sensored or sensorless: Sensorless

Diameter of shaft: Φ3.175mm-Φ5mm

Motor size: Diameter 28 / Length 45mm

Stator diameter: Φ26.5mm

Available winding: Delta/Star (△/Y)

Technique:

• Hand-wound for maximum copper fill.

• Precision-balanced rotor will boost the efficiency and power performance of the motor.

• Nickel-plated sintered neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions.
