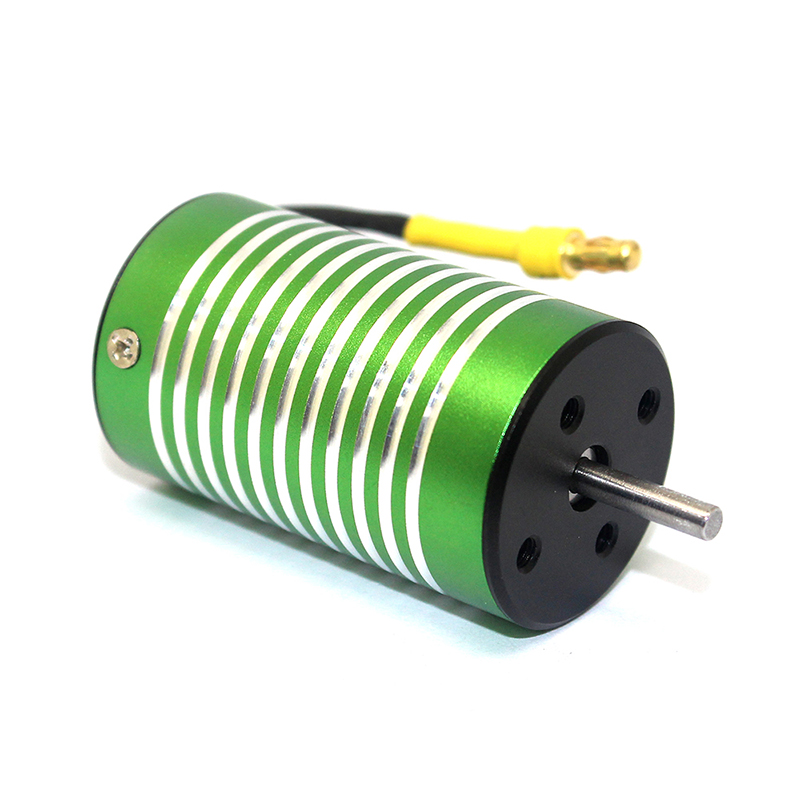

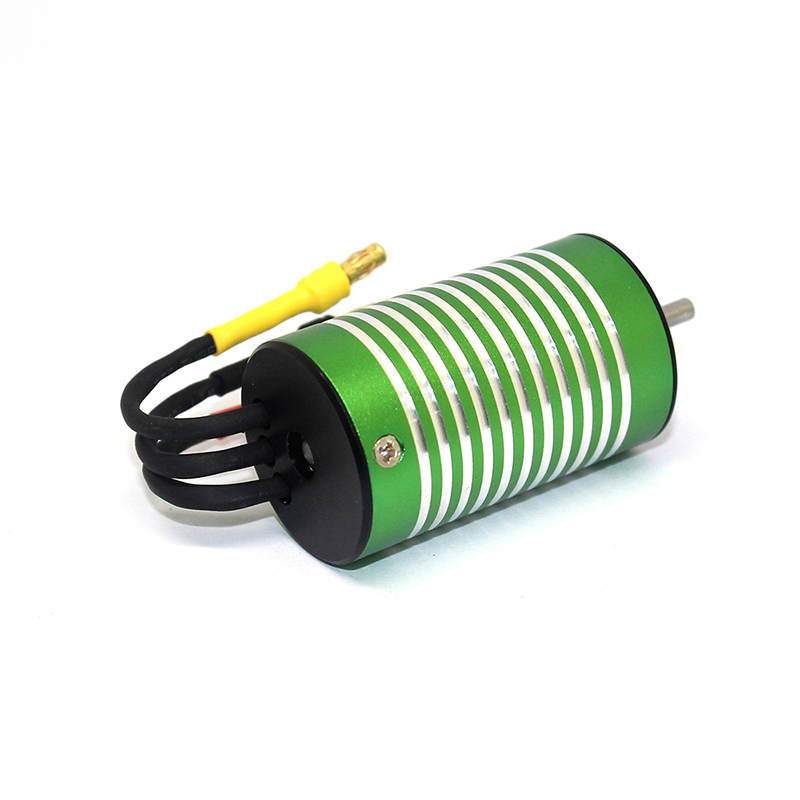

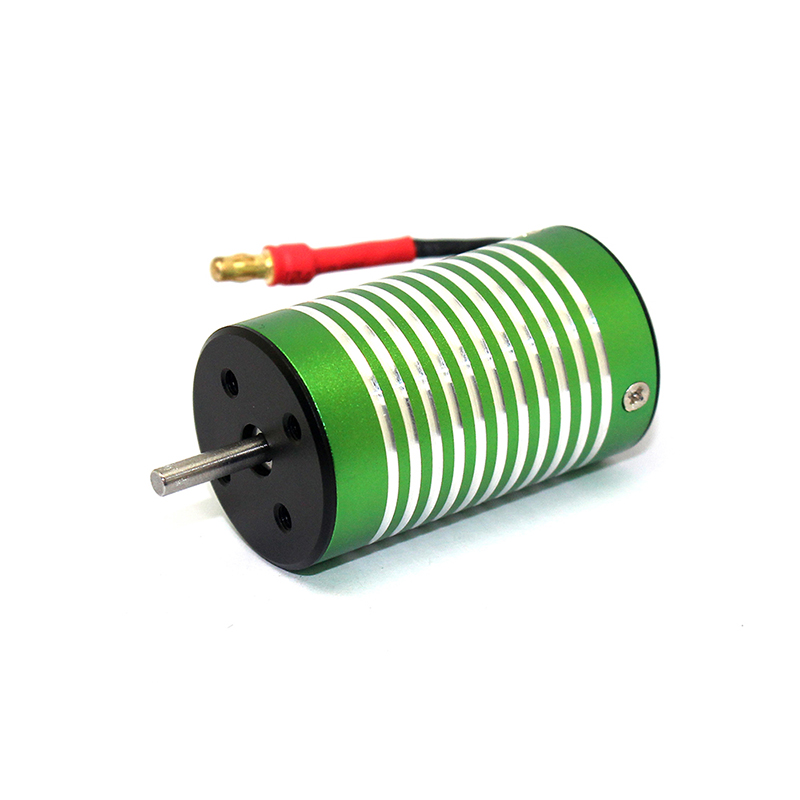

XTI-2850 Inrunner Brushless Motor for 1/12th R/C car

Description

The XTI-2850 Inrunner Brushless Motor for 1/12th R/C car is an inrunner brushless DC motor specifically designed for high-performance remote control models. It is suitable for application scenarios such as 1/10 off-road vehicles and 65 mm EDF (Electric Ducted Fan). With its compact size, lightweight design, and a peak power of up to 950 watts, the XTI-2850 Inrunner Brushless Motor for 1/12th R/C car has become an ideal choice for players who pursue speed and efficiency.

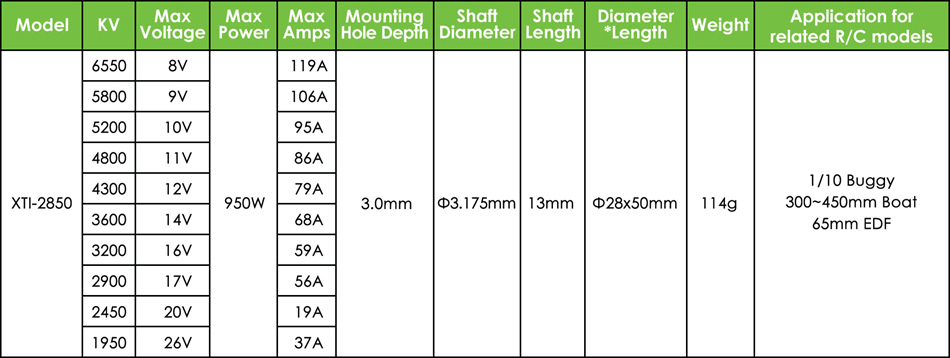

Performance Parameters

Model: XTi-2850

KV Value Range: 6550KV ~ 1950KV

Maximum Voltage: 8V ~ 26V

Maximum Power: 950W

Maximum Current: 119A ~ 37A

Shaft Diameter and Length: Φ3.175×13 mm

Weight: 114 grams

Structural Features

Compact Design: All models of the motor adopt a compact structural design to adapt to the space limitations of different R/C models.

High-precision Manufacturing: Key dimensions of the motor, such as the depth of the mounting holes, the diameter and length of the shaft, are processed with high precision to ensure a perfect match with R/C models.

High-performance Materials: High-quality materials are used to manufacture the key components of the motor, such as the rotor, stator, and bearings, to improve the durability and performance of the motor.

Application Areas

1/10 Off-road Vehicles: The high KV value version (such as KV6550) is suitable for racing scenarios where extreme speed is pursued, and the low KV value version (such as KV1950) provides ample torque, making it suitable for complex terrains.

65 mm EDF: The medium KV value version (such as KV3200) is suitable for electric ducted fan applications, providing efficient thrust and stable performance.

Professional-level Models: Suitable for 1/10 scale vehicles and EDF applications. When paired with a sensorless electronic speed controller above 80A, it can fully exert its performance.

Precautions

Safe Operation: When using the XTI-2850 Inrunner Brushless Motor for 1/12th R/C car, be sure to follow the safety operation procedures. When replacing or repairing the motor, make sure to disconnect the power supply and follow all applicable safety standards.

Proper Installation: Ensure that the motor is correctly installed in the R/C model. Use the correct tools and methods to fix the motor and follow the manufacturer’s installation guide.

Maintenance: Regularly check the working status of the motor and the drive system. If any abnormalities or signs of wear are found, stop using it immediately and carry out necessary repairs or replacements.

Voltage Matching: Please ensure that the selected motor matches the voltage requirements of the R/C model. Using a mismatched voltage may cause damage to the motor or a decline in its performance.

Load Limitation: When using the motor, please note not to exceed its maximum load capacity. Overloading may cause the motor to overheat, be damaged, or have a decline in performance.

If you are interested in the XTI-2850 Inrunner Brushless Motor for 1/12th R/C car or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Available for class 390-1/12th or 1/10th scale vehicles

Number of stator slot: 12G 4P

Sensored or sensorless: Sensorless

Diameter of shaft: Φ3.175mm-Φ5mm

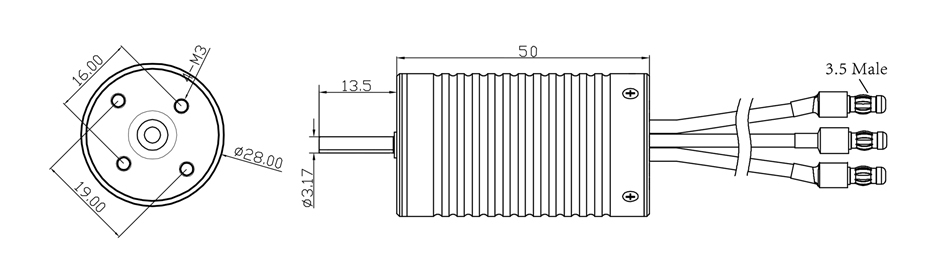

Motor size: Diameter 28 / Length 45mm

Stator diameter: Φ26.5mm

Available winding: Delta/Star (△/Y)

Technique:

• Hand-wound for maximum copper fill.

• Precision-balanced rotor will boost the efficiency and power performance of the motor.

• Nickel-plated sintered neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions.
