XTI-2845 Inrunner Brushless Motor for 1/12th R/C car

Description

The XTI-2845 Inrunner Brushless Motor for 1/12th R/C car is designed to meet the high-performance requirements of 390 to 1/12 or 1/10 scale remote control model vehicles. With its excellent performance parameters, advanced structural design, and wide application adaptability, the XTI-2845 Inrunner Brushless Motor for 1/12th R/C car has become the first choice for model enthusiasts and professional racers.

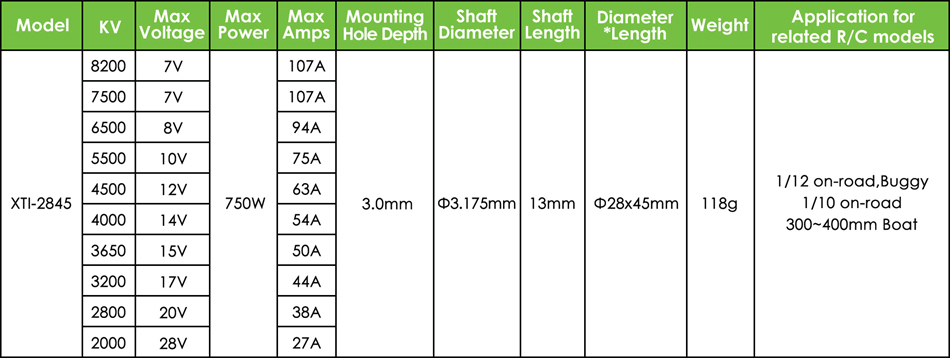

Performance Parameters

Model: XTi-2845

KV Value Range: 8200KV ~ 2000KV

Maximum Voltage: 7V ~ 28V

Maximum Power: 750W

Maximum Current: 107A ~ 27A

Shaft Diameter and Length: Φ3.175×13 mm

Weight: 118 grams

Structural Features

High-efficiency Design: All are made of high-performance materials to ensure high efficiency while providing strong power.

Compact Structure: The diameter and length of the motor are carefully designed to adapt to the space limitations of different R/C models.

Lightweight: Through the use of high-quality materials and advanced manufacturing processes, the weight of the motor has been significantly reduced, thus improving the controllability and response speed of the R/C model.

Application Areas

1/12 On-road Cars: The high KV value version (such as KV8200) is suitable for racing scenarios where extreme speed is pursued, and the low KV value version (such as KV2000) provides ample torque, making it suitable for complex terrains.

1/10 Off-road Vehicles: The medium KV value version (such as KV4000) is suitable for off-road vehicle applications, providing efficient thrust and stable performance.

Small Models: Suitable for 1/12 scale vehicles and small models. When paired with a sensorless electronic speed controller above 80A, it can fully exert its performance.

Precautions

Safe Operation: Please follow the safety operation procedures. When replacing or repairing the motor, make sure to disconnect the power supply and follow all applicable safety standards.

Proper Installation: Please ensure that the motor is correctly installed in the R/C model. Use the correct tools and methods to fix the motor and follow the manufacturer’s installation guide. At the same time, please pay attention to the rotation direction and polarity of the motor to ensure its normal operation.

Maintenance: Regularly check the working status of the motor and the drive system.

Voltage Matching: Please ensure that the selected motor matches the voltage requirements of the R/C model.

Load Limitation: Do not exceed its maximum load capacity. Overloading may cause the motor to overheat, be damaged, or have a decline in performance.

If you are interested in the XTI-2845 Inrunner Brushless Motor for 1/12th R/C car or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Available for class 390-1/12th or 1/10th scale vehicles

Number of stator slot: 12G 4P

Sensored or sensorless: Sensorless

Diameter of shaft: Φ3.175mm-Φ5mm

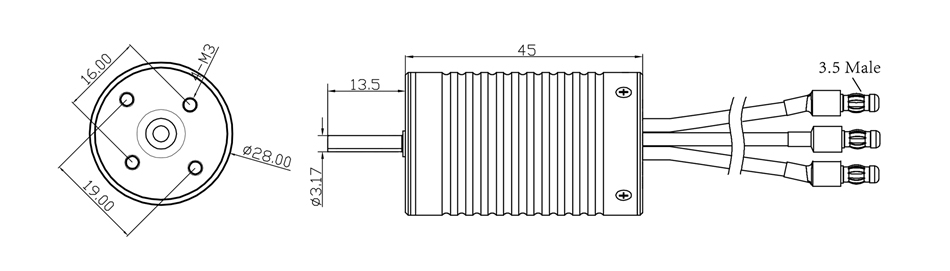

Motor size: Diameter 28 / Length 45mm

Stator diameter: Φ26.5mm

Available winding: Delta/Star (△/Y)

Technique:

• Hand-wound for maximum copper fill.

• Precision-balanced rotor will boost the efficiency and power performance of the motor.

• Nickel-plated sintered neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions.
