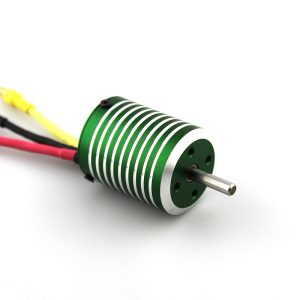

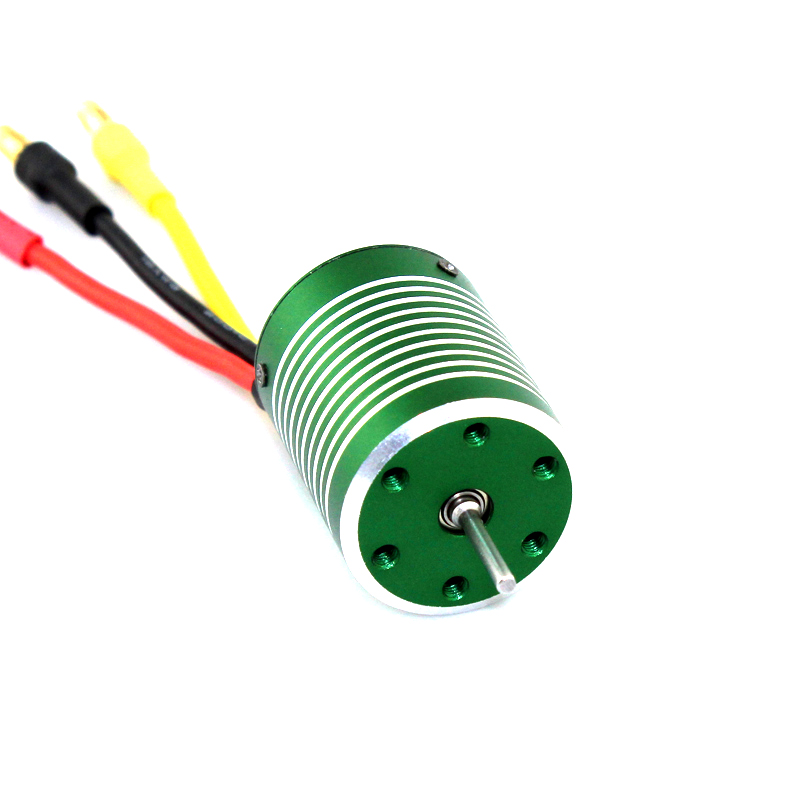

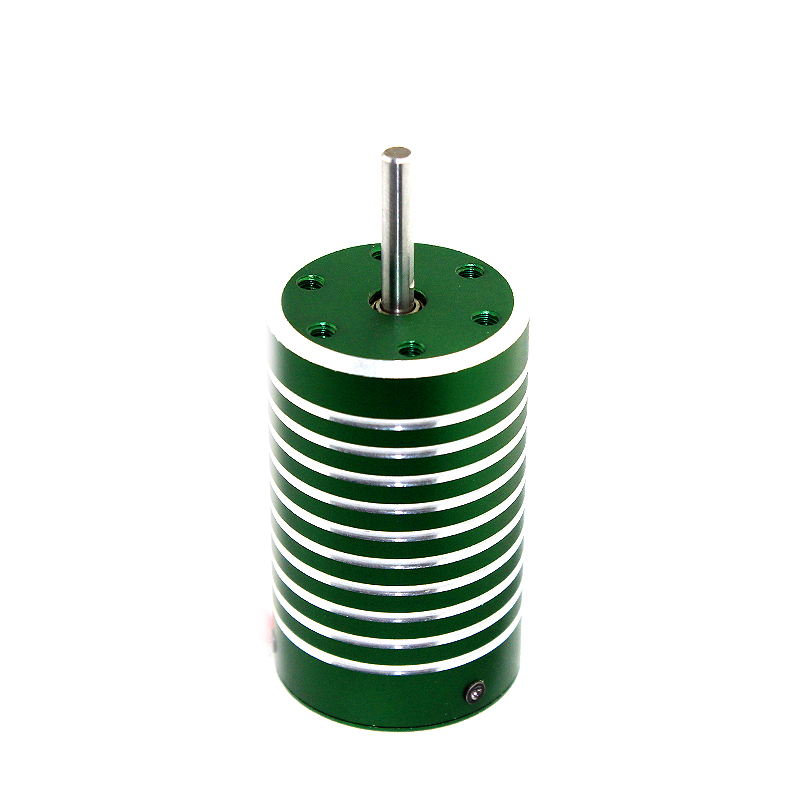

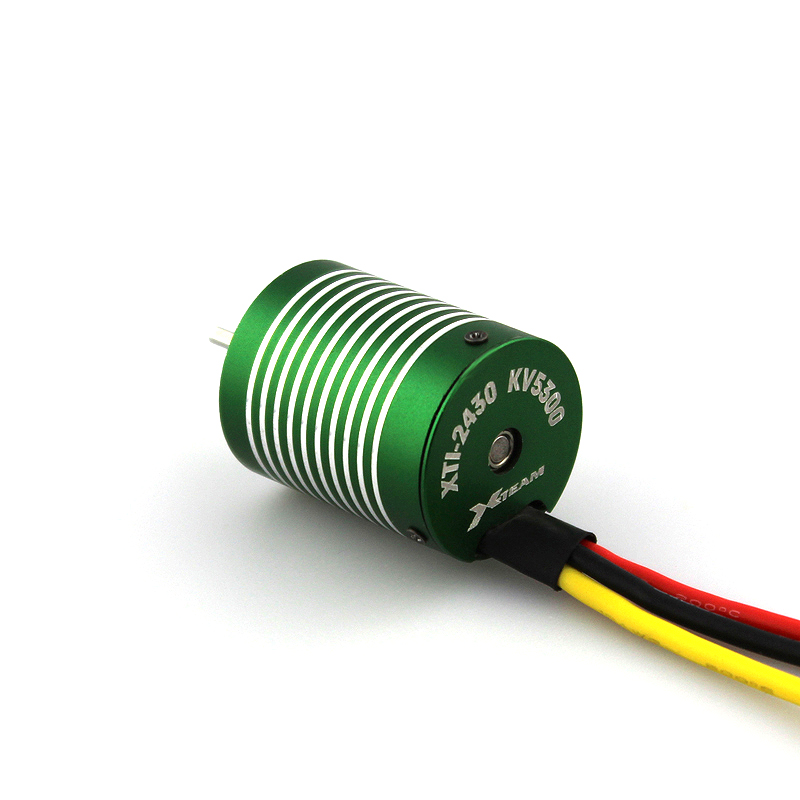

XTI-2430 Inrunner Brushless Motor for 1/16th R/C car

Description

The XTI-2430 Inrunner Brushless Motor for 1/16th R/C car is an inrunner brushless DC motor specifically designed for small high-performance remote control models. It is suitable for application scenarios such as 1/18 on-road cars and off-road vehicles. With its compact size, lightweight design, and a peak power of up to 180 watts, it has become an ideal choice for players who pursue speed and efficiency.

Performance Parameters

Model: XTi-2430

KV Value Range: 9200KV ~ 5300KV

Maximum Voltage: 6V ~ 11V

Maximum Power: 180W

Maximum Current: 30A ~ 16A

Shaft Diameter and Length: Φ2.0×12 mm

Weight: 47 grams

Structural Features

12-slot 4-pole (12S4P) Magnetic Circuit Design: Optimizes electromagnetic efficiency, reduces torque fluctuations, and ensures smooth operation.

Nickel-plated Sintered Neodymium Magnet Rotor: Resistant to high temperatures (>150℃), providing strong acceleration and braking performance, and adapting to extreme working conditions.

Hand-wound High-purity Copper Wire: Maximizes the copper filling rate, reduces resistance losses, and improves energy efficiency.

Precise Dynamic Balance Calibration: Reduces vibration, extends the service life of the bearing, and ensures stability at high rotational speeds.

Lightweight Nickel-based Alloy Housing: Balances heat dissipation and impact resistance, suitable for high-intensity usage environments.

Application Scenarios

1/18 On-road Cars: The high KV value version (such as KV9200) is suitable for racing scenarios where extreme speed is pursued.

1/18 Off-road Vehicles: The low KV value version (such as KV5300) provides ample torque, suitable for complex terrains and climbing needs.

Small Models: Suitable for 1/18 scale vehicles. When paired with a sensorless electronic speed controller above 30A, it can fully exert its performance.

Precautions for Use

Electrical Safety: It is strictly prohibited to exceed the rated voltage and current corresponding to the KV value to avoid burning out the motor.

Installation and Heat Dissipation: Ensure that the motor shaft matches the vehicle frame to avoid shaft deformation caused by forced assembly. When operating under high load, it is recommended to install a cooling fan or a metal heat sink to control the temperature below 120℃.

Maintenance: Regularly clean the dust inside the motor and check the lubrication status of the bearing. After using it in a humid or dusty environment, it is necessary to thoroughly dry and seal it for protection.

Operation Tips: Calibrate the phase between the electronic speed controller and the motor before powering on to avoid abnormal noise. After a severe impact, check the dynamic balance of the rotor and adjust it in a timely manner to prevent eccentric wear.

If you are interested in the XTI-2430 Inrunner Brushless Motor for 1/16th R/C car or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Available for class 380-1/12th or 1/10th scale vehicles

Number of stator slot: 12G 4P

Sensored or sensorless: Sensorless

Diameter of shaft: Φ3.175mm-Φ5mm

Motor size: Diameter 28 / Length 45mm

Stator diameter: Φ26.5mm

Available winding: Delta/Star (△/Y)

Technique:

• Hand-wound for maximum copper fill.

• Precision-balanced rotor will boost the efficiency and power performance of the motor.

• Nickel-plated sintered neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions.
