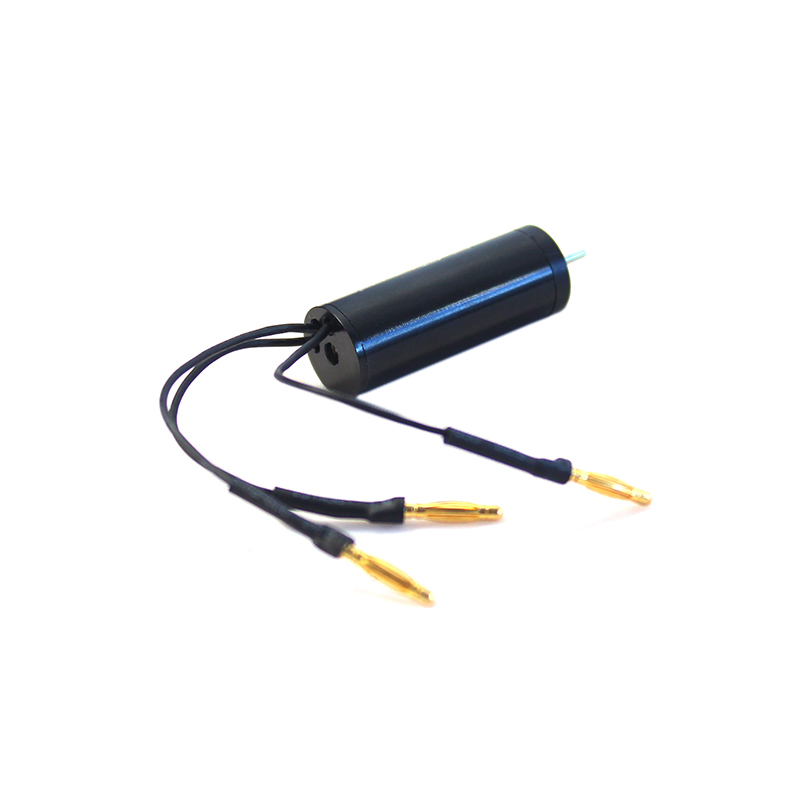

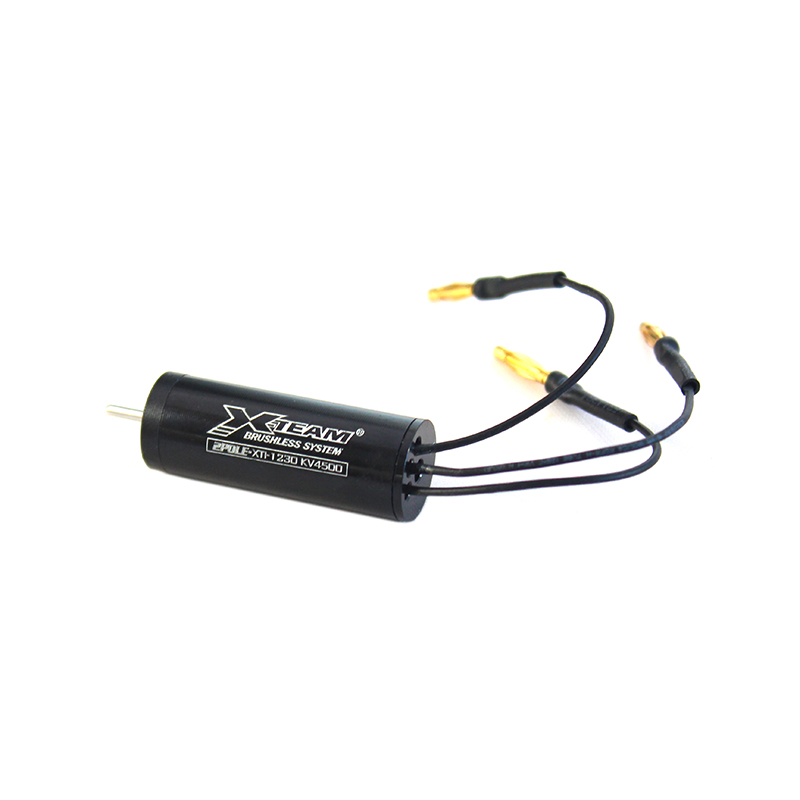

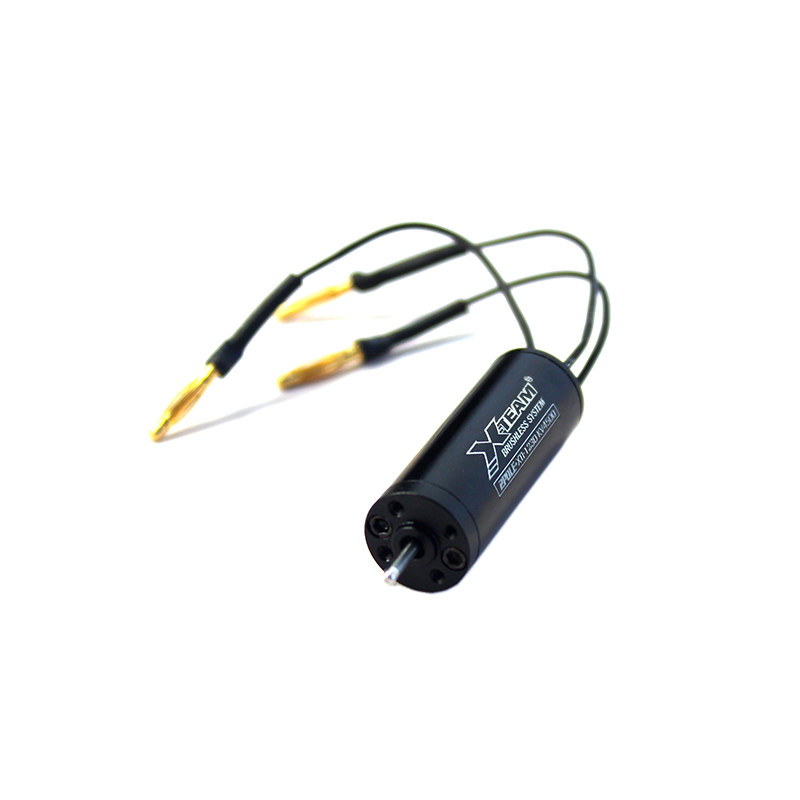

XTI-1230 Inrunner Brushless Motor for mini r/c car

Description

The XTI-1230 Inrunner Brushless Motor for mini r/c car is specifically designed for 1/24 or 1/32 scale remote control models. It is a high-performance and lightweight driving solution. With a compact design and efficient operation, this motor is highly suitable for miniature remote control models and small industrial equipment. By adopting brushless DC motor technology, the XTI-1230 Inrunner Brushless Motor for mini r/c car can not only provide powerful power but also maintain a longer service life and lower maintenance requirements. The high-efficiency conversion of this motor enables it to reduce energy waste during long-term operation and improve overall performance.

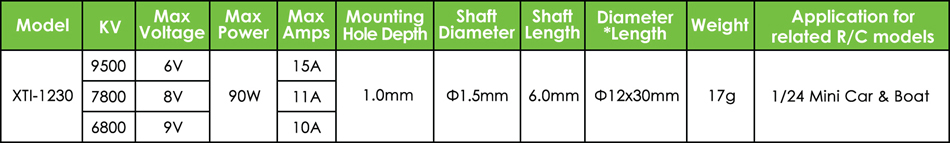

Performance Parameters

Model: XTI-1230

KV Value Range: 6800KV~9500KV

Maximum Voltage Range: 6V~9V

Maximum Power: 90W

Maximum Current Range: 10A~15A

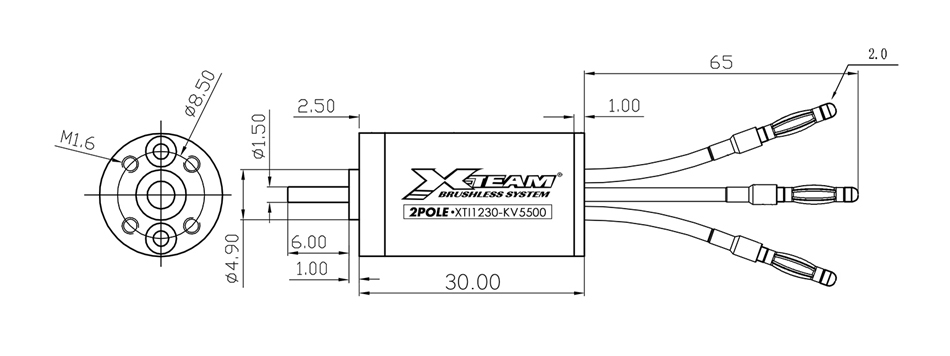

Mounting Hole Depth: 1.0mm

Shaft Diameter: Φ1.5mm

Shaft Length: 6.0mm

Diameter×Length: Φ12×30mm

Weight: 17g

Structural Features

Hand-wound Process: The hand-wound process is adopted to ensure that the copper filling rate in the coil reaches the maximum, thus improving the efficiency and overall performance of the motor.

Precisely Balanced Rotor: The rotor has undergone precise balancing treatment, effectively enhancing the efficiency and power performance of the motor during operation, and reducing vibration and noise.

Nickel-plated Sintered Neodymium Iron Boron Rotor: Using high-quality nickel-plated sintered neodymium iron boron material ensures that the motor can still achieve maximum acceleration, braking force, and high-performance operation under high-temperature conditions.

Application Areas

Remote Control Model Vehicles: Suitable for 1/24 scale mini cars (Mini Car), providing strong power support and high torque output for these vehicles, ensuring stability and maneuverability in complex terrains and at high speeds.

Remote Control Model Boats: Suitable for small model boats, providing efficient propulsion and stable operation performance to meet the needs of water model sports.

Industrial Applications: Suitable for miniature automation equipment that requires high precision and high torque, such as miniature robot joints, precision small robotic arms, etc.

Precautions

Power Supply Voltage Matching: Please ensure that the power supply voltage matches the rated voltage of the motor to avoid overloading or damaging the motor.

Installation and Debugging: During the installation and debugging process, please follow the relevant operation specifications and safety guidelines.

Operation Monitoring: During use, please regularly monitor the operation status of the motor, including temperature, noise, vibration, etc. If any abnormal phenomena are found, please stop the machine immediately for inspection and contact professional personnel for repair or replacement.

Environmental Adaptability: Please avoid using it in harsh environments such as humidity, high temperature, and flammable and explosive conditions.

Maintenance: Regularly maintain the motor, including cleaning, lubrication, inspection, etc. This can extend the service life of the motor and improve its performance.

If you are interested in the XTI-1230 Inrunner Brushless Motor for mini r/c car or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Available for class 1/24th or 1/32th scale vehicles

Number of stator slot: 4G 2P

Sensored or sensorless: Sensorless

Available winding: Delta/Star (△/Y)

Technique:

• Hand-wound for maximum copper fill.

• Precision-balanced rotor will boost the efficiency and power performance of the motor.

• Nickel-plated sintered neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions.
