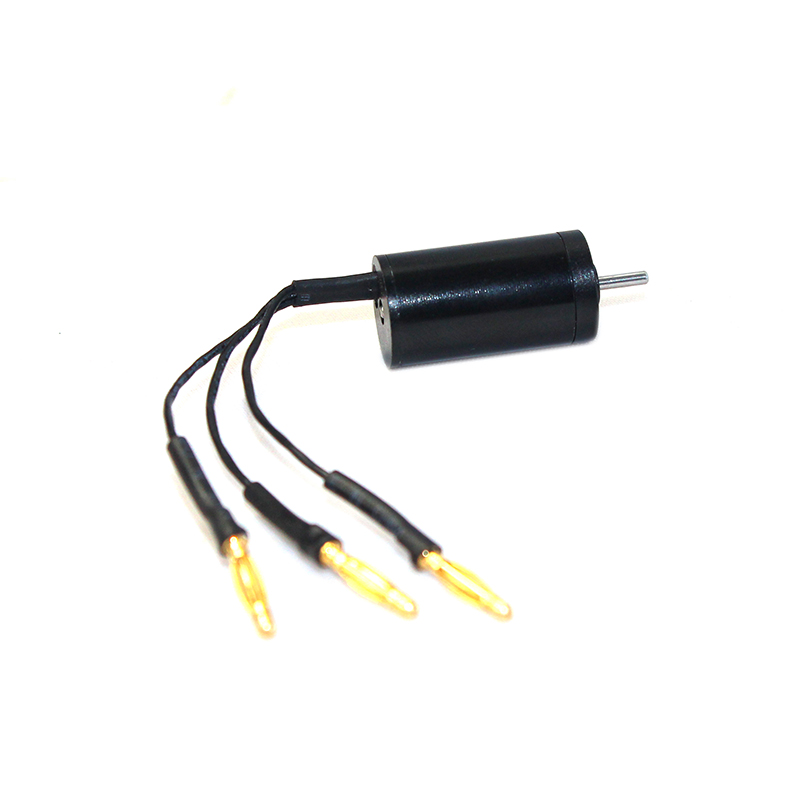

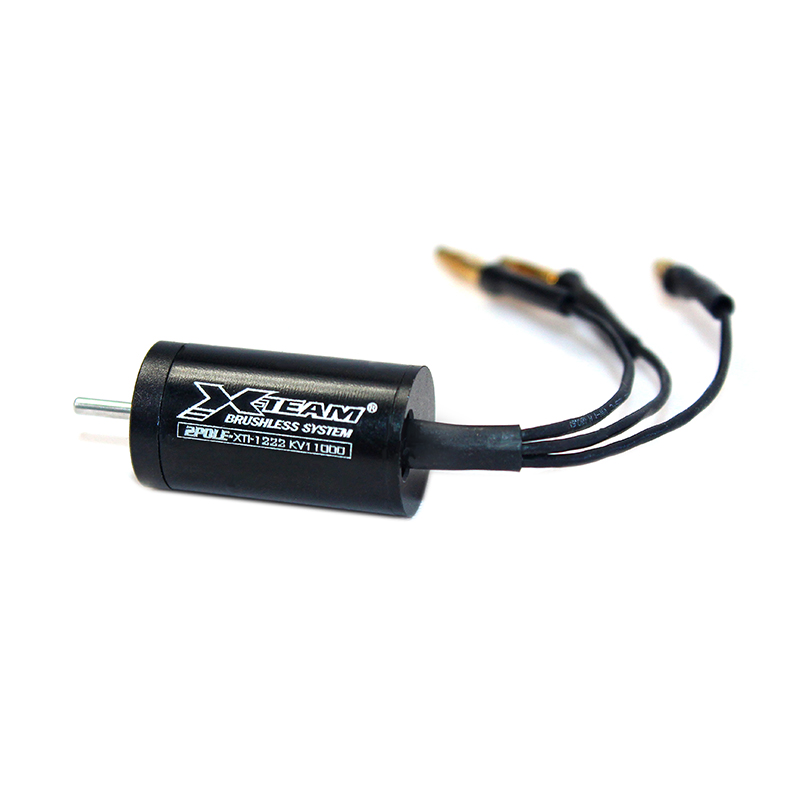

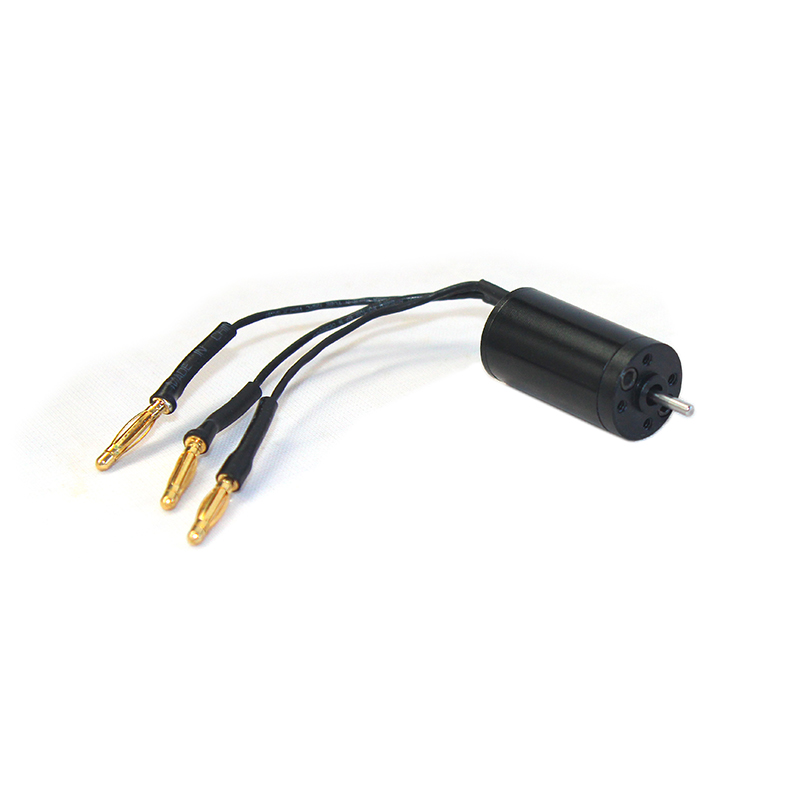

XTI-1222 Inrunner Brushless Motor for mini r/c car

Description

The XTI-1222 Inrunner Brushless Motor for mini r/c car is designed to meet the high-performance requirements of 1/24 or 1/32 scale remote control models. With its excellent performance parameters, advanced structural design, and wide application adaptability, the XTI-1222 Inrunner Brushless Motor for mini r/c car has become the first choice for model enthusiasts and professional racers.

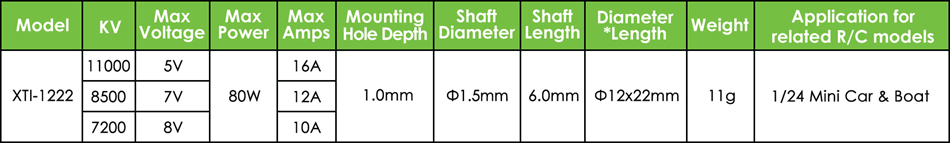

Performance Parameters

KV Value Range: 7200KV~11000KV

Maximum Voltage Range: 5V~8V

Maximum Power: 80W

Maximum Current Range: 10A~16A

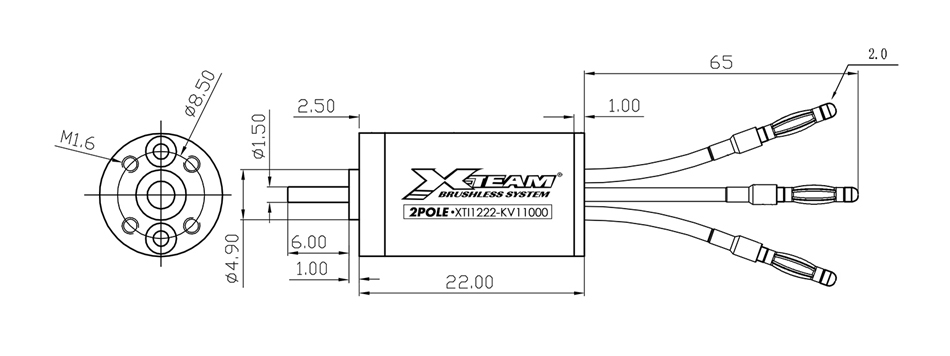

Dimensions and Weight:

Shaft Diameter: Φ1.5mm

Shaft Length: 6.0mm

Motor Dimensions: Φ12mm×22mm

Weight: 11g

Structural Features

Hand-wound Process: The hand-wound process is adopted to ensure that the copper filling rate in the coil reaches the maximum, thus improving the efficiency and overall performance of the motor.

Precisely Balanced Rotor: The rotor has undergone precise balancing treatment, effectively enhancing the efficiency and power performance of the motor during operation, and reducing vibration and noise.

Nickel-plated Sintered Neodymium Iron Boron Rotor: Using high-quality nickel-plated sintered neodymium iron boron material ensures that the motor can still achieve maximum acceleration, braking force, and high-performance operation under high-temperature conditions.

Mounting Hole Design: The mounting hole depth of the motor is 1.0mm, the stator mounting hole diameter is Φ12mm, and it is equipped with 4 M1 threaded holes, which facilitates quick and reliable installation and fixation in various miniature models.

Application Areas

Remote Control Model Vehicles: Suitable for 1/24 scale mini cars (Mini Car), providing strong power support and high torque output for these vehicles, ensuring stability and maneuverability in complex terrains and at high speeds.

Remote Control Model Boats: Suitable for small model boats, providing efficient propulsion and stable operation performance to meet the needs of water model sports.

Industrial Applications: Suitable for miniature automation equipment that requires high precision and high torque, such as miniature robot joints, precision small robotic arms, etc.; it can also be used for miniature drone gimbals, providing stable and precise power support for cameras to ensure high-quality shooting images.

Precautions

Power Adaptation: Ensure that the power supply voltage of the motor is within the range of 5V to 8V to avoid damage to the motor caused by excessively high or low voltage.

Load Limitation: According to the maximum torque and maximum current parameters of the motor, reasonably plan the load of the motor and avoid exceeding the recommended load for a long time to extend the service life of the motor and maintain its performance.

Heat Dissipation Measures: When operating under high load or for an extended period, it is recommended to take appropriate heat dissipation measures, such as adding heat sinks or fans, to ensure the normal operating temperature of the motor.

Installation and Debugging: When installing the motor, ensure that all threaded holes are firmly connected to avoid mechanical failures caused by looseness.

Maintenance and Upkeep: Regularly check components such as the motor’s connecting wires and encoder to ensure their normal operation.

Environmental Adaptability: Avoid using it in humid or extreme temperature conditions to prevent the performance degradation or damage of the motor.

If you are interested in the XTI-1222 Inrunner Brushless Motor for mini r/c car or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Available for class 1/24th or 1/32th scale vehicles

Number of stator slot: 4G 2P

Sensored or sensorless: Sensorless

Available winding: Delta/Star (△/Y)

Technique:

• Hand-wound for maximum copper fill.

• Precision-balanced rotor will boost the efficiency and power performance of the motor.

• Nickel-plated sintered neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions.
