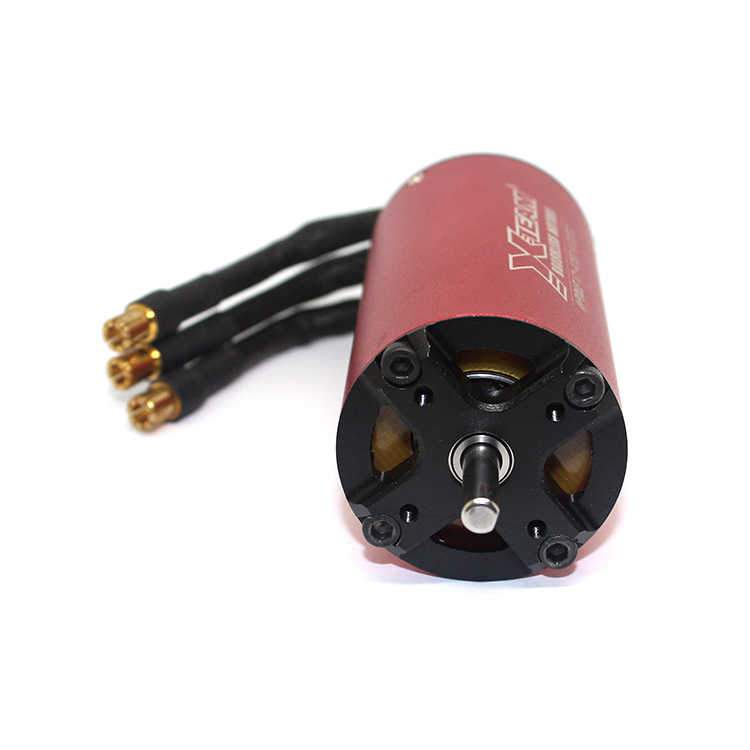

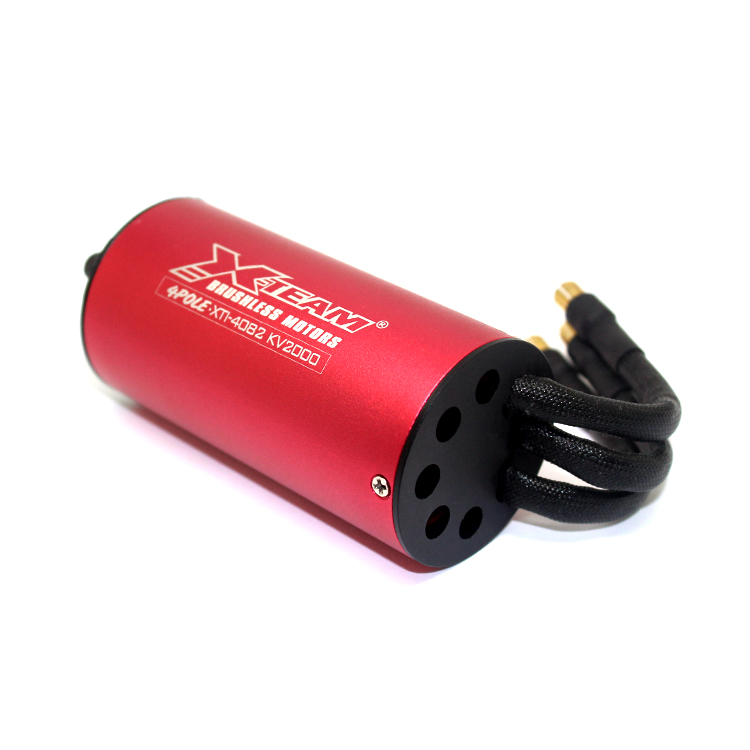

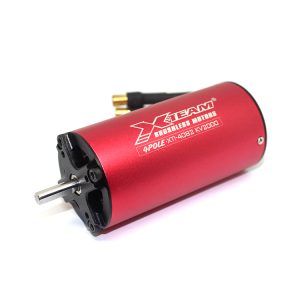

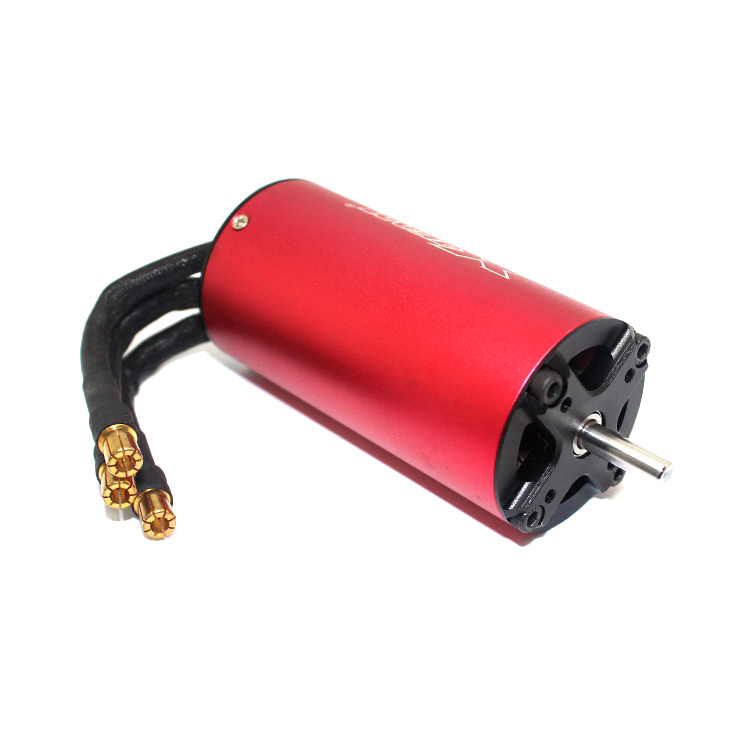

XTB4082 brushless motor for R/C boat model

Description

The XTB4082 brushless motor for R/C boat model is a high-performance brushless DC motor specifically designed to provide efficient and stable power output. While maintaining a compact size and a lightweight, this motor can be easily integrated into various devices, adapting to different working environments and requirements. Whether it is the voltage or power requirements, this motor can meet the standards of various applications, making it a flexible and reliable choice. Its excellent performance and compact design enable it to have a wide range of applications in multiple industries.

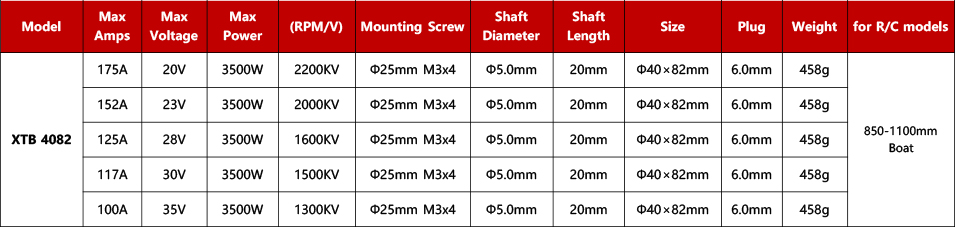

Maximum Current: Ranging from 175A to 100A, providing multiple configurations to meet different power requirements.

Maximum Voltage: Ranging from 20V to 35V, ensuring the motor operates stably under different voltages.

Maximum Power: 3500W, providing a strong power output.

Rotational Speed/Voltage per Phase (RPM/V): Ranging from 2200KV to 1300KV, meeting different speed requirements.

Mounting Screws: Φ25mm M3x4, ensuring the motor is firmly installed.

Shaft Diameter: Φ5.0mm, suitable for a variety of loads.

Shaft Length: 20mm, providing sufficient connection space.

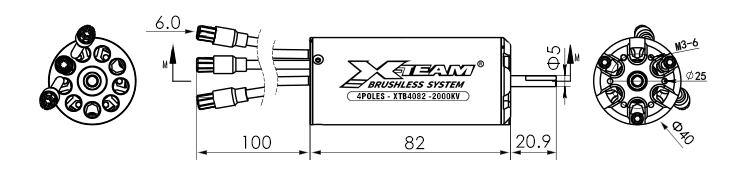

Dimensions: Φ40×82mm, with a compact design that saves space.

Plug: 6.0mm, facilitating the connection of the power supply and control system.

Weight: 458g, lightweight and durable.

Structural Features

Compact Design: The XTB4082 brushless motor for R/C boat model adopts a compact design with a moderate size, making it easy to install in various R/C model boats without taking up too much space.

High-performance Materials: High-performance magnetic materials and wires are used inside the motor to ensure that the motor can still maintain stability and durability under long-term high-load operation.

Precision Machining: All components of the motor are precisely machined to ensure the smooth operation and low noise of the motor.

Easy Maintenance: The design takes into account the convenience of maintenance. Users can easily disassemble the motor for daily inspection and maintenance, such as replacing bearings and cleaning the stator.

Application Areas

The XTB4082 brushless motor for R/C boat model is widely suitable for various remote control model boats, such as racing boats, yachts, fishing boats, etc. Its excellent power performance and smooth operation characteristics enable these boats to demonstrate outstanding performance in various water areas. Whether it is a calm lake or a rough sea, this motor can provide stable and powerful power for the boats.

Precautions

Compatibility Check: Before use, please ensure the compatibility of the motor with accessories such as the controller and battery. Different models of motors may require different controller and battery configurations. Please be sure to match them according to the manufacturer’s recommendations.

Proper Installation: During the installation process, please follow the installation guidelines provided by the manufacturer to ensure the correct installation of the motor. Incorrect installation methods may lead to motor damage or performance degradation.

Operation Observation: During operation, please pay attention to observing the operation status of the motor. In case of abnormal noise, excessive heating, or power drop, please stop the machine in time for inspection and troubleshooting.

Regular Maintenance: Regular maintenance and upkeep of the motor are the key to extending its service life. It is recommended to regularly check components such as the motor’s bearings, stator, and rotor, and replace worn or damaged parts in a timely manner.

Safe Use: When using the motor, please be sure to follow the safe operation procedures to avoid accidents such as electric shock and fire. Ensure that the motor is used in a dry and well-ventilated environment and keep it away from flammable and explosive items.

If you are interested in the XTB4082 brushless motor for R/C boat model or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-efficiency application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following means:
