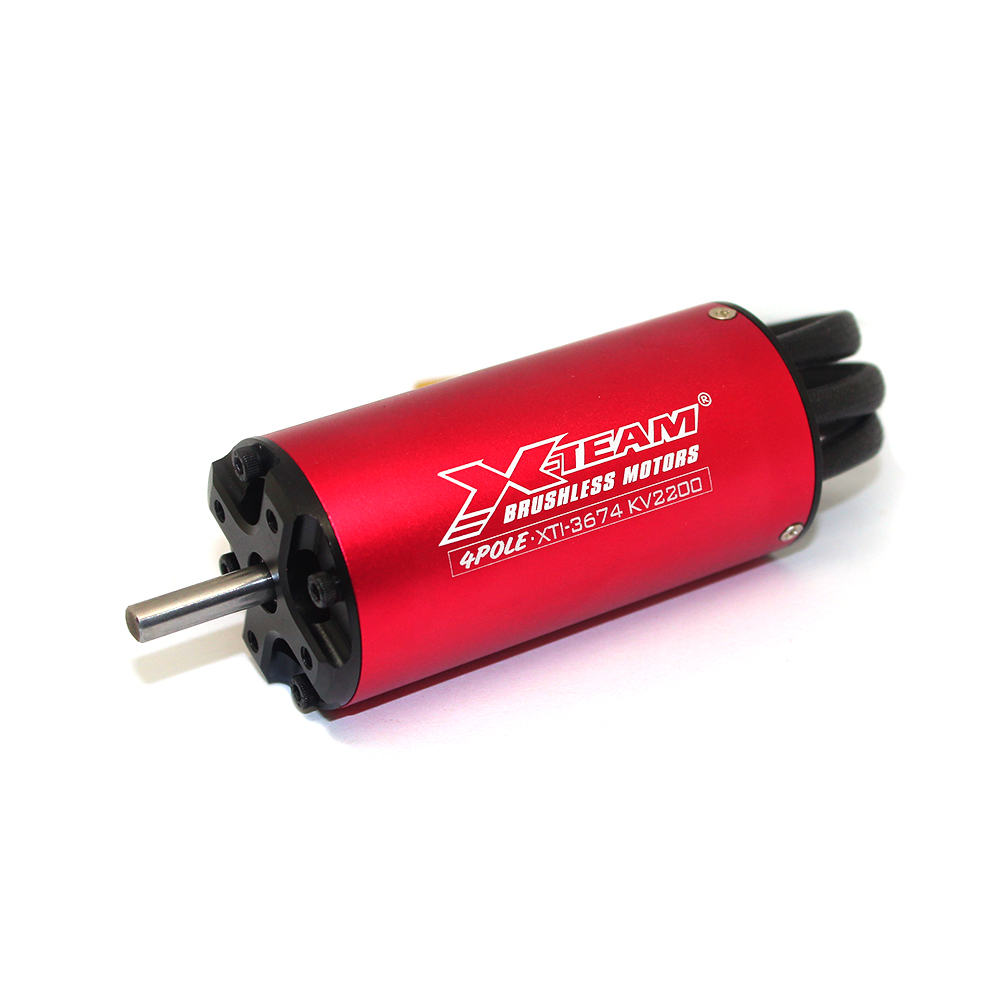

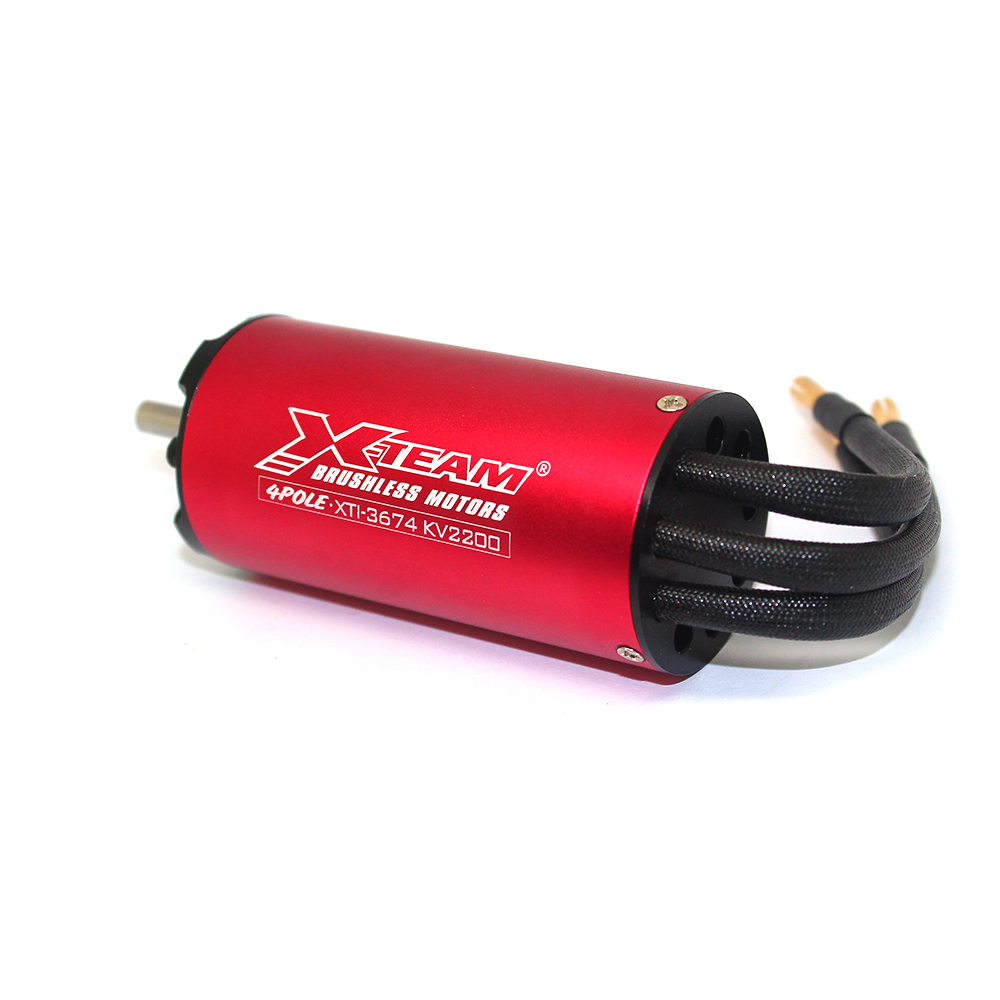

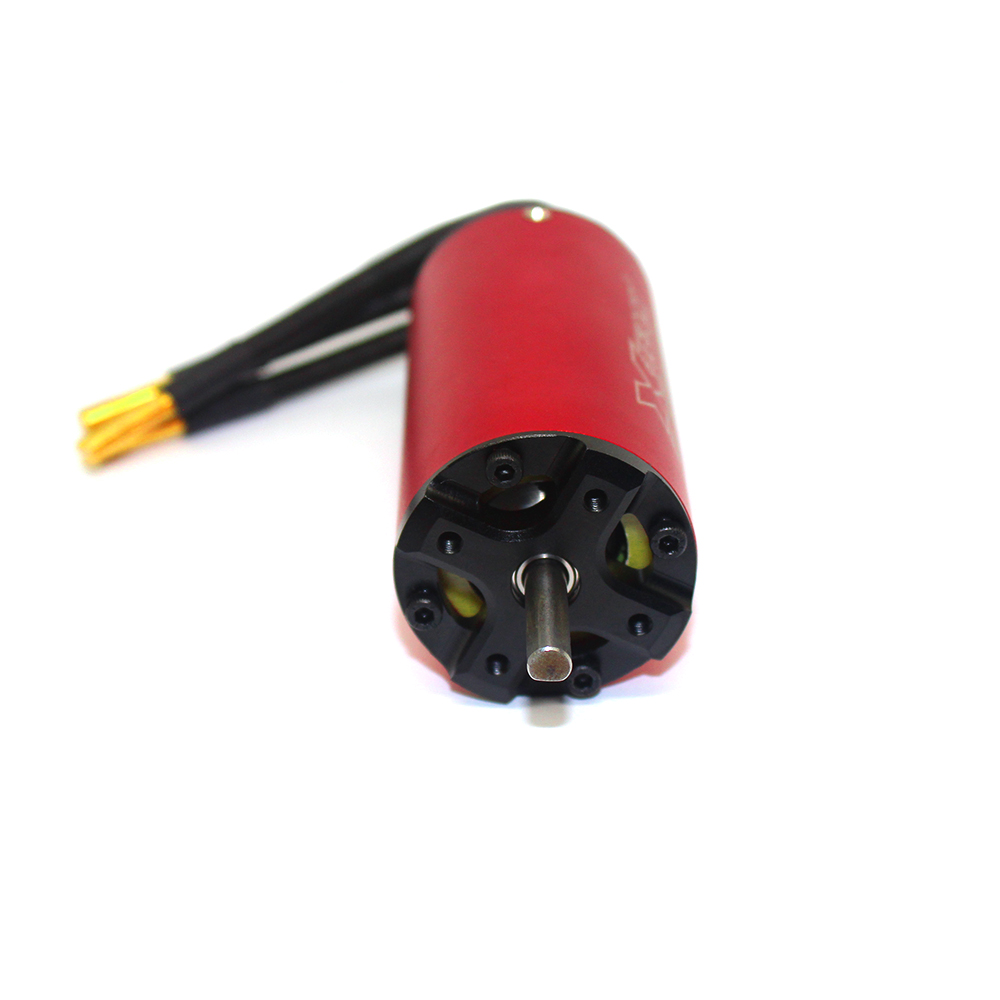

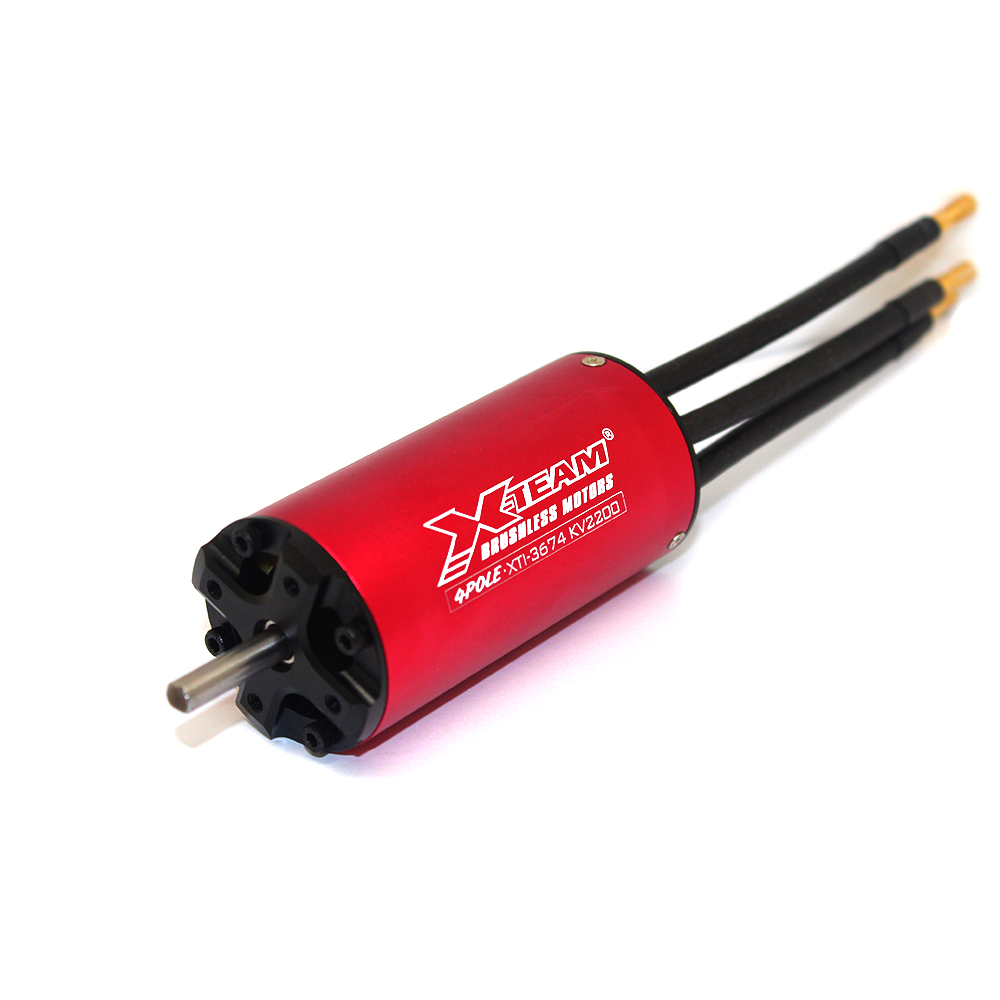

XTB3674 brushless motor for R/C boat model

Description

The XTB3674 brushless motor for R/C boat model is a high-efficiency and stable brushless DC motor. Its design not only focuses on the high efficiency of power output but also takes into account the compact size and lightweight, making it convenient for use and installation in different devices. The XTB3674 brushless motor for R/C boat model supports multiple voltage and power options, which can meet the needs of different scenarios and is highly suitable for various application environments. The greatest advantage of this motor lies in its stability and high efficiency. It can maintain a small size without sacrificing performance, especially suitable for devices that have requirements for space and weight. In addition, the motor runs with low noise and high energy efficiency, which is very important for devices that operate for a long time.

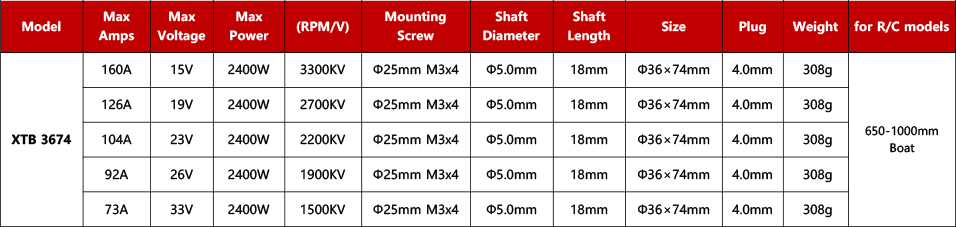

Performance Parameters

Maximum Current Range: Varies from 73A to 160A, providing multiple power options.

Maximum Voltage Range: From 15V to 33V, adapting to different voltage requirements.

Maximum Power: All models have a maximum power of 2400W, ensuring strong performance.

Maximum Rotational Speed Range: From 1500KV to 3300KV, meeting different speed requirements.

Mounting Screws: Uniformly Φ25mm M3x4, facilitating installation.

Shaft Diameter: Φ5.0mm, and the shaft length is 18mm, with standard dimensions.

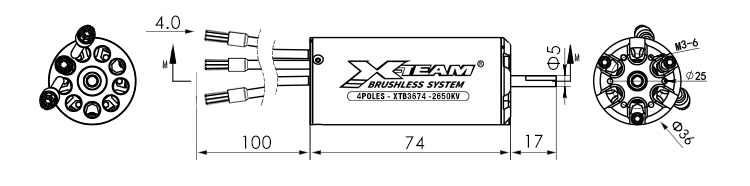

Motor Dimensions: Φ36x74mm, with a compact design.

Plug: 4.0mm, making the connection convenient.

Weight: All weigh 308g, ensuring stability and durability.

Applicable Range: Clearly applicable to boats with a size of 650-1000mm.

Structural Features

High-efficiency Cooling System: Designed with high-quality materials, it has high heat dissipation efficiency, ensuring that the motor does not overheat during long-term operation.

High-strength Bearings: Using high-quality bearing materials, it provides low friction and high durability, effectively extending the service life of the motor.

Application Fields

Electric Boats: Especially suitable for electric boats with a size of 650-1000mm, such as electric yachts and electric speedboats. It provides strong power and high-efficiency performance to meet the needs of boats in different waters and at different speeds.

Industrial Automation: Widely used in industrial equipment such as automated production lines, robots, and numerically controlled machine tools. The high precision and stability of the motor help improve the operation efficiency of the equipment and the product quality.

Agricultural Machinery: In automated agricultural machinery (such as seeders, fertilizer spreaders, harvesters, etc.), it drives various actuating components (such as cutters, conveyor belts, etc.). It improves the efficiency of agricultural operations and reduces the labor intensity of manual work.

Precautions

Safe Operation: Before use, be sure to read and understand the safe operation guidelines in the user manual to ensure the correct and safe use of the motor.

Correct Wiring: When wiring, ensure that the motor is wired correctly to avoid damage or accidents caused by short circuits or incorrect wiring.

Maintenance: Regularly inspect and maintain the motor to keep it in the best working condition and extend its service life.

Usage Environment: Avoid using the motor in extreme temperature or humidity environments to prevent affecting its performance and service life.

If you are interested in the XTB3674 brushless motor for R/C boat model or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com
