XTB2872 brushless motor for R/C boat model

Description

The XTB2872 brushless motor for R/C boat model is a high – performance and high – efficiency electric device specially designed to meet the application requirements of R/C models such as model boats. Thanks to its excellent parameters and unique design, this motor can deliver stable and powerful power output in various scenarios.

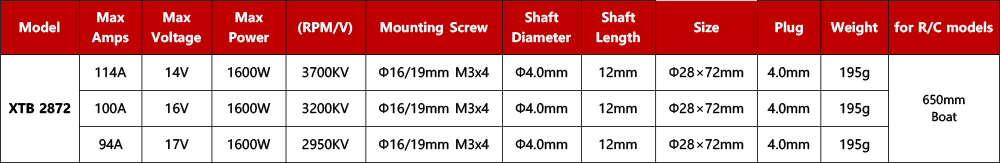

Performance Parameters

Maximum Current: The maximum current varies among different motor models, ranging from 94A to 114A.

Maximum Voltage: The maximum voltage of the motor ranges from 14V to 17V, ensuring stable operation in different voltage environments.

Maximum Power: All motor models have a maximum power of 1600W, providing sufficient power support.

Rated Rotational Speed: The rated rotational speed of the motor is between 3200KV and 3700KV.

Structural Features

High – power Density Design: It uses full – copper windings and high – temperature – resistant magnetic steel, with a continuous power of 1600W and strong instantaneous explosive power.

Precise KV Value Matching: Three versions of 3700KV, 3200KV, and 2950KV are available to meet different power requirements.

Enhanced Heat Dissipation and Durability: The outer shell is made of aviation aluminum, combined with an internal air duct design to effectively reduce the operating temperature.

Plug – and – Play Compatibility: It comes standard with a 4.0mm plug, compatible with mainstream electronic speed controllers (ESC).

Application Fields

Boat Models: Suitable for racing boat models with a size of 650mm or larger.

Car Models: Compatible with heavy – load scenarios such as off – road vehicles and crawler vehicles.

Drones: Ideal for FPV racing drones.

Precautions

Electrical Safety: It is strictly prohibited to exceed the nominal maximum voltage and current. Make sure the specifications of the electronic speed controller match.

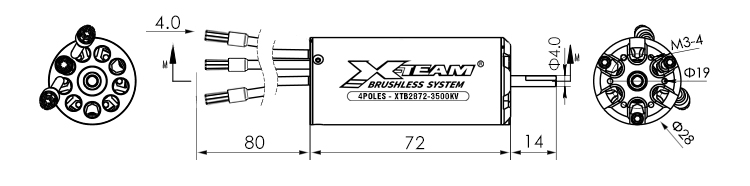

Installation Specifications: Tighten the M3 screws evenly and use washers to prevent axial loosening.

Heat Dissipation Management: When operating under continuous high load, it is recommended to install a cooling fan or a water – cooling system.

Environmental Adaptability: When using it for boat models, proper waterproofing treatment is required. Avoid long – term use in sandy, dusty, or muddy environments.
