Description

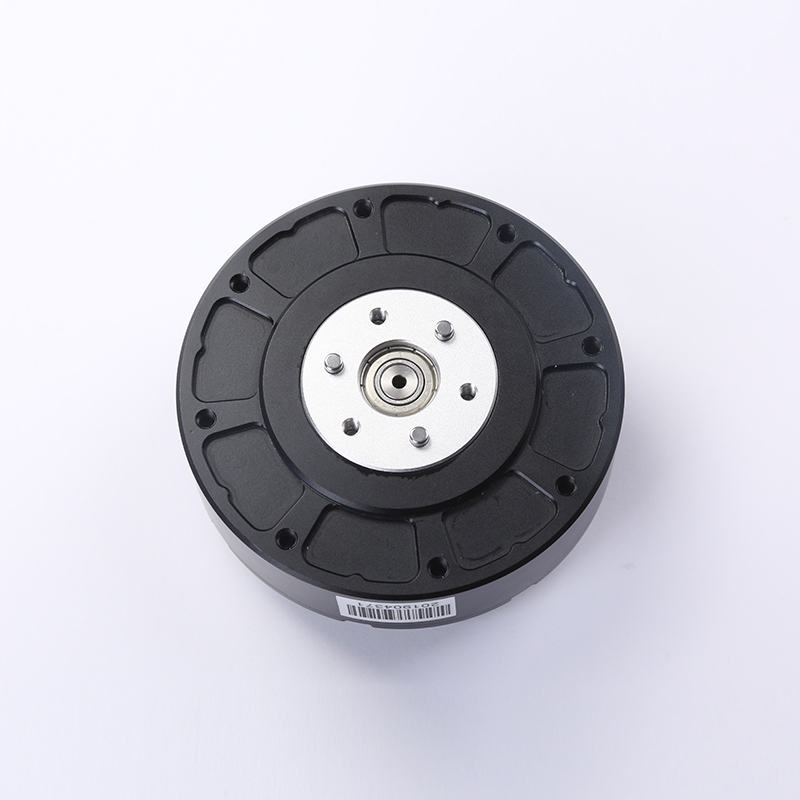

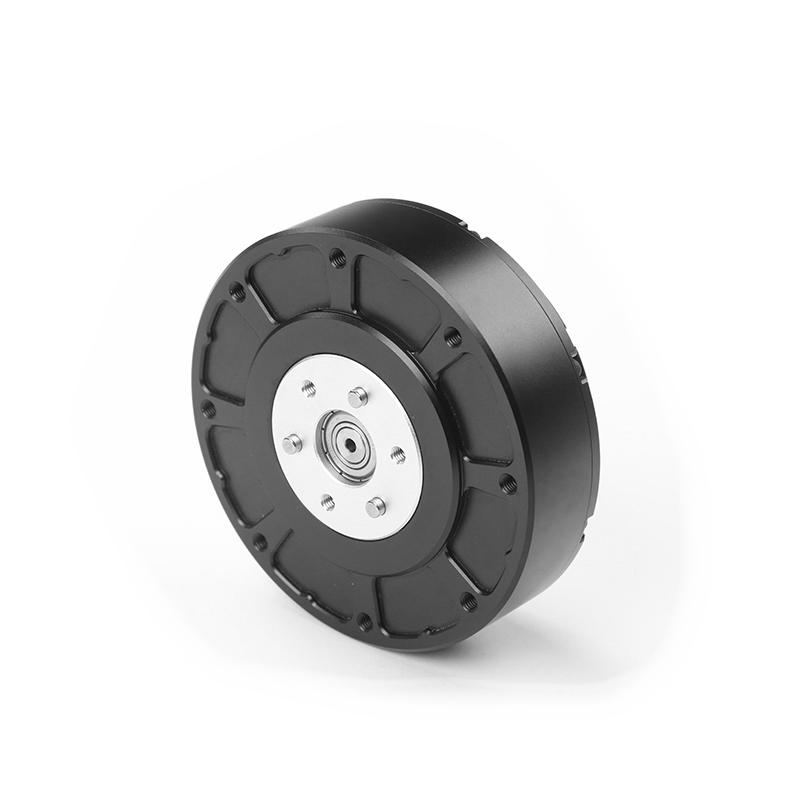

The XTO2 Brushless motor for Cobots and Robot is a high-performance motor specifically designed to meet the needs of modern industries, automated equipment, and precision control systems. It performs excellently in terms of performance, structure, and application, and is suitable for a wide range of industries. The XTO2 Brushless motor for Cobots and Robot features a compact design, high efficiency, and high precision, and it can provide stable and reliable performance in various working environments. Whether in equipment that requires high-precision control or in systems with extremely high energy efficiency requirements, it can give full play to its unique advantages.
Performance Parameters
Product Model: XT02
Operating Voltage: 36V DC
Operating Current: 7A
Rated Rotational Speed: 1500 RPM
Maximum Rotational Speed: 2000 RPM
Power: 200W
Signal Feedback: Integrated 15-bit absolute encoder for one revolution, with a maximum of 32768 pulses per revolution, providing high-precision position feedback.
Cooling Method: Natural cooling
Weight: 605 grams
Position Sampling Frequency: 2000Hz, enabling rapid response and precise control.
Protection Feature: Equipped with a rotor blockage warning function, effectively preventing the motor from being damaged due to overload.

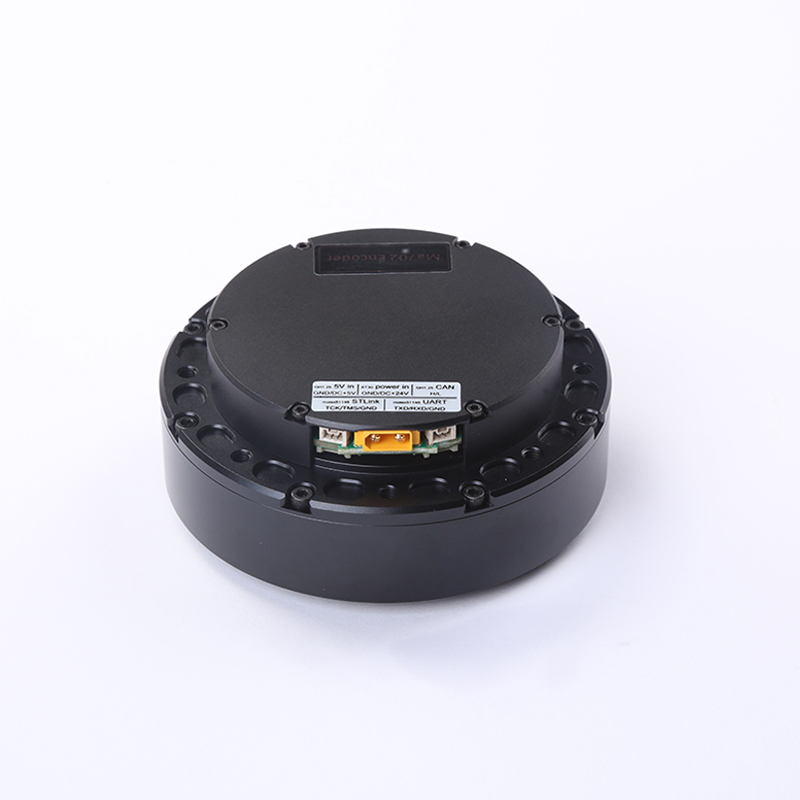

Communication Interface: Smartcan (CAN protocol, baud rate 1Mbps), supporting efficient data communication and remote monitoring.

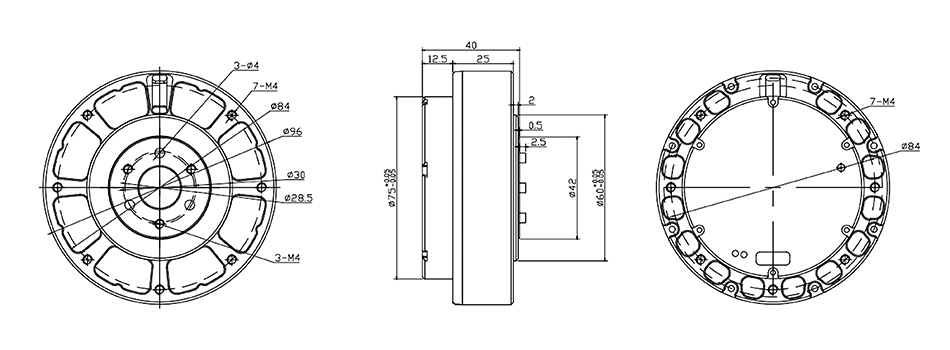

Structural Features
Compact Design: The optimized internal structure and lightweight materials make it easy to integrate into various devices.
High-precision Encoder: The integrated 15-bit absolute encoder provides high-precision position feedback, ensuring the accuracy and stability of system control.
Natural Cooling: Using the natural cooling method, without the need for additional cooling equipment, reducing system complexity and maintenance costs.
High Efficiency: High power density design, combined with advanced motor control technology, maintains high-efficiency output.
Intelligent Communication: Supports the Smartcan communication protocol, enabling fast and reliable data exchange with the main control system, facilitating remote monitoring and fault diagnosis.
Application Fields
Industrial Automation: Used in automatic assembly lines, material handling systems, robotic arms, etc., to improve production efficiency and precision.
Aerospace: As a precision control component, it is used for the attitude adjustment of aircraft, navigation systems, etc.
Medical Equipment: Meeting the high requirements for precision, reliability, and safety of medical equipment, such as surgical robots, medical imaging equipment, etc.
Electric Vehicles: As an auxiliary drive motor, it is used for the steering system, window lifting, etc. of electric vehicles.
Smart Home: Used in home automation devices such as smart curtains and automatic doors to enhance the quality of life.
Precautions
Electrical Safety: Before operation, please ensure that the power supply voltage matches the motor specifications to avoid damage to the motor or personal injury caused by overvoltage or overcurrent.
Installation and Maintenance: Installation and maintenance should be carried out by professionals to ensure that the motor and its connecting components are firm and reliable, and to avoid malfunctions caused by looseness.
Environmental Adaptability: Avoid using it in extreme temperature, humidity, or corrosive environments to prevent affecting the motor’s performance and lifespan. When using it in wet or corrosive environments, appropriate protective measures should be taken.
Load Control: Select an appropriate load range according to the actual application to avoid long-term overload operation, so as not to damage the motor or affect the system performance.
Regular Inspection: Regularly check the operating status of the motor, including encoder feedback, temperature, vibration, etc., and promptly identify and solve problems.
Communication Interface: When using the Smartcan communication interface, please ensure that the communication protocol and data format are correct to avoid data loss or misoperation.
If you are interested in the XTO2 Brushless motor for Cobots and Robot or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:
Tel: +86-769-85228181
Email: chris@x-teamrc.com
