Description
The BL45100AN standard series coreless BLDC motor is designed with advanced brushless technology, featuring high efficiency, long service life, and low noise. This motor belongs to the standard series and supports various combination solutions (such as gearboxes and encoders), which can flexibly meet the application requirements in fields such as industrial automation, robotics, power tools, and medical equipment.
Motor Model and Specifications

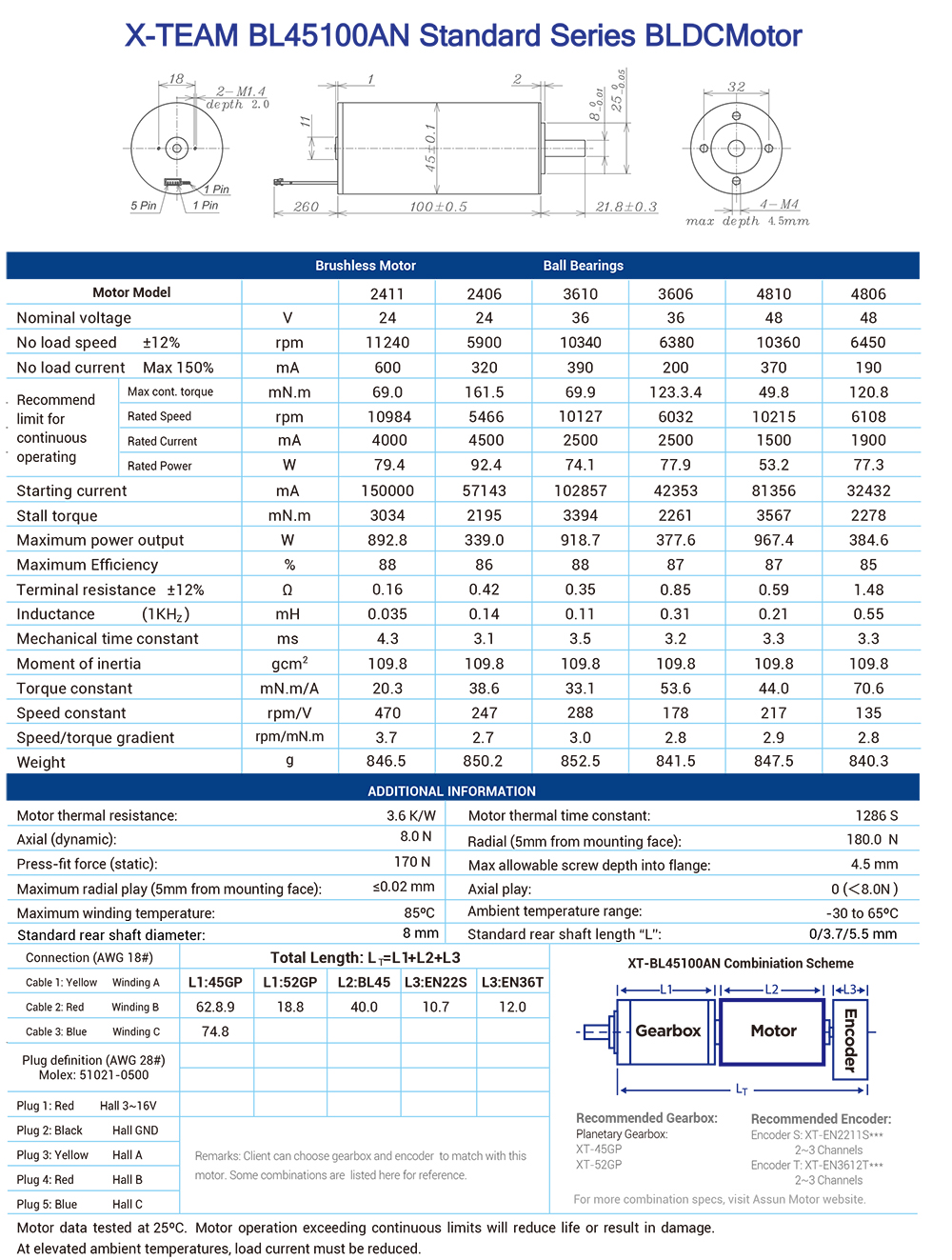

X-TEAM provides a variety of models of the BL45100AN standard series coreless BLDC motor, including 2411, 2406, 3610, 3606, 4810, and 4806. These models differ in terms of voltage, speed, torque, etc., to meet different application needs.
Performance Parameters
Rated Voltage: This series of motors offers a variety of rated voltage options, including 24V, 36V, and 48V, to meet the power supply requirements of different devices and application scenarios.
Rated Power: The motor has a stable rated power output, ensuring that it can continuously provide the required power during long-term operation.
No-load Speed and Rated Speed: The motor has a relatively high speed in the no-load state, and it can also maintain a stable speed output under the rated load, ensuring the normal operation of the equipment.
Starting Performance: The motor has excellent starting performance, being able to reach the rated speed within a short time and providing sufficient starting torque to meet various starting requirements.
Mechanical Characteristics: Parameters such as maximum output power, highest efficiency, terminal resistance, inductance, and mechanical time constant are included. These parameters jointly determine the electrical and mechanical performance of the motor, providing users with a comprehensive basis for performance evaluation.
Structural Features
Compact Design: The motor adopts a compact structural design, occupying a small space and facilitating installation and integration into various devices.
High-quality Materials: High-quality materials are selected for manufacturing to ensure the durability and stability of the motor, enabling it to operate for a long time in harsh environments.
Efficient Cooling System: Equipped with an advanced cooling system, it can effectively reduce the temperature during the operation of the motor and improve the thermal stability of the motor.
Motor Structure: Adopting a brushless DC design, it provides higher efficiency and a longer service life.
Bearing Type: According to different models, 2 to 5 ball bearings are equipped to ensure smooth operation and low noise.
Thermal Resistance and Thermal Time Constant: The axial thermal resistance is 3.6 K/W, and the thermal time constant is 1286 seconds, ensuring the stable operation of the motor under high loads.
Mechanical Strength: The axial and radial load capacities are 8.0 N and 180.0 N respectively, making it suitable for a variety of mechanical applications.
Application Areas
The BL45100AN standard series coreless BLDC motor is widely used in fields such as industrial automation, robotics, and precision control systems. Its high performance and reliability enable these devices to achieve efficient and stable operation, improving overall production efficiency and quality.
Precautions
Operating Environment: The motor data is tested in an environment of 25°C. Operating beyond the continuous working limit will reduce the service life of the motor or cause damage. In the case of a higher ambient temperature, the load current must be reduced.
Electrical Connection: Use appropriate cables and connectors to ensure the safety and reliability of the electrical connection.
Mechanical Installation: Ensure the correct installation of the motor and avoid exceeding the recommended values for axial and radial loads.
Maintenance: Regularly inspect the motor and related components to ensure their normal operation.
Safe Operation: Follow all relevant safety standards and operating procedures to ensure the safety of personnel and equipment.
The BL45100AN standard series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other scenarios with high-efficiency requirements, X-TEAM motors can provide stable and reliable power output. For more information or to order BLDC motors, you can contact us in the following ways:
Tel: +86-769-85228181
Email: chris@x-teamrc.com
