Description
The BL45100AE high temperature series coreless BLDC motor is a high – performance motor carefully developed by X – TEAM for harsh industrial environments. This series of motors not only has all the advantages of traditional brushless DC motors, such as high efficiency, long service life, and low noise, but also specifically enhances its working ability in high – temperature environments, enabling it to maintain stable performance under extreme conditions.

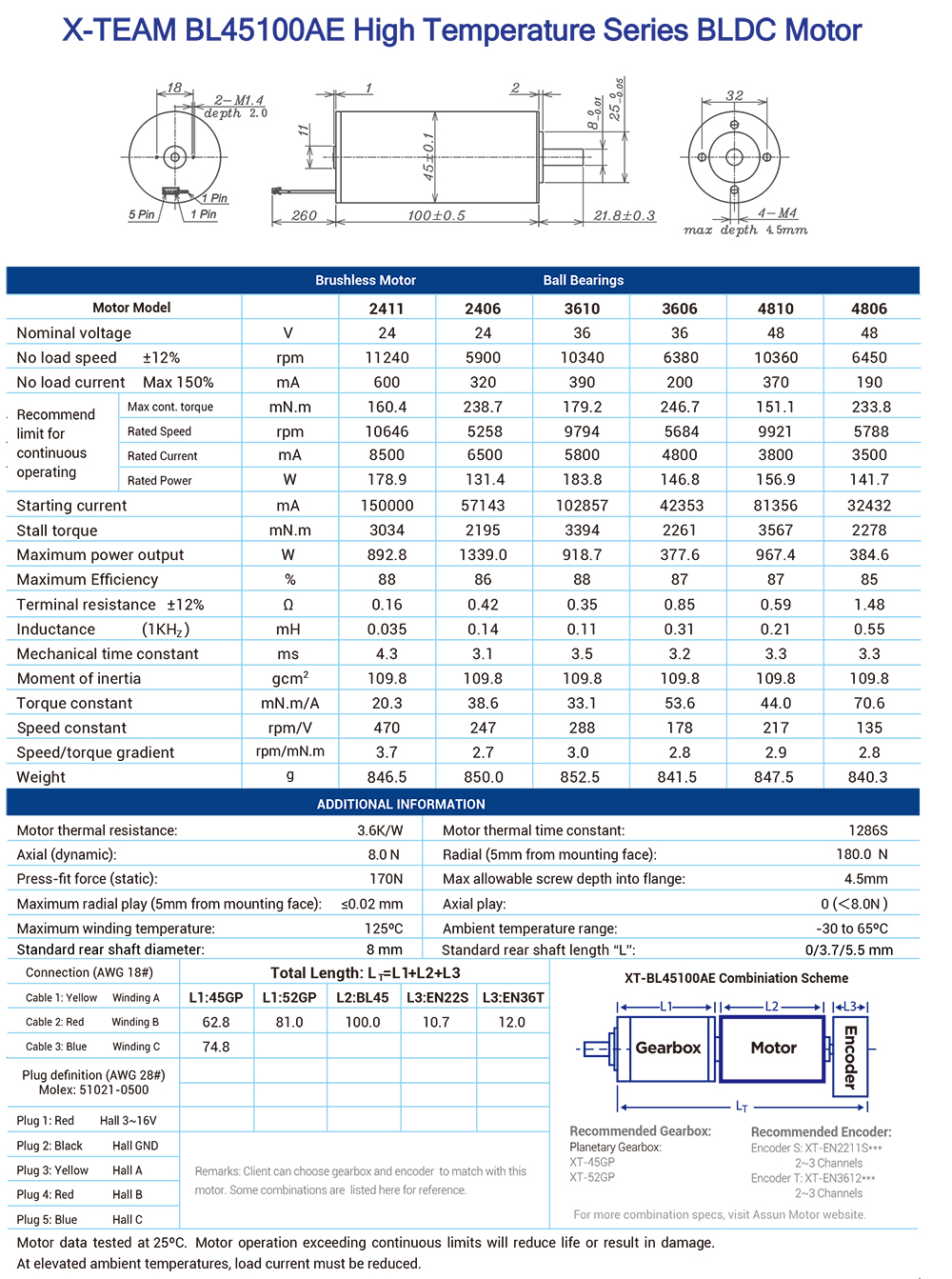

Motor Model and Specifications
The BL45100AE high temperature series coreless BLDC motor offers a variety of model options to meet the needs of different application scenarios. The specific models include 2411, 2406, 3610, 3606, 4810, and 4806.
Performance Parameters
Rated Voltage: It covers multiple voltage levels such as 24V, 36V, and 48V.
No – load Speed: The no – load speed of each model motor has a wide range, with the maximum reaching 11,240 revolutions per minute (rpm), ensuring that various speed requirements can be met.
No – load Current: It is controlled at a relatively low level, with the maximum reaching 150% of the rated current, which helps to reduce energy consumption.
Maximum Continuous Torque: The maximum continuous torque of each model motor remains at a relatively high level, with the maximum reaching 238.7 mN·m, ensuring that the motor maintains strong power during continuous operation.
Rated Power: The maximum can reach 183.8W, ensuring that the motor can output stable power under rated conditions.
Starting Current: It is as high as 150,000 mA, ensuring that the motor can start quickly and reach the working speed.
Stall Torque: The maximum is 3034 mN·m, and it can maintain a relatively high torque output even under stall conditions.
Maximum Output Power: The maximum output power of some models can reach 892.8W, meeting the requirements of high – power applications.
Efficiency: The motor has high efficiency, with the maximum reaching 88%, which helps to improve the overall energy efficiency of the equipment.
Weight: It weighs 846.5 grams, with a compact structure, which is easy to integrate into various devices.
Structural Features
High Temperature Resistance: The motor is designed considering the working requirements in high – temperature environments, and the maximum working temperature can reach 125°C. It has a wide ambient temperature range and can work normally from – 30°C to 65°C. It has low thermal resistance and a small thermal time constant, ensuring that the motor can dissipate heat quickly and maintain stable performance in high – temperature environments.
Sturdy and Durable: The motor has a compact structure and is made of high – quality materials, ensuring a long service life even in harsh environments. It has high axial and radial load – bearing capacities and is suitable for high – vibration and high – impact environments.
High Efficiency: The motor has high efficiency and small losses during the energy conversion process, which helps to improve the overall energy efficiency of the equipment. It has large torque constants and speed constants, ensuring excellent performance in both torque output and speed.
Applications and Precautions
Application Fields
The BL45100AE high temperature series coreless BLDC motor is widely used in various occasions that require operation in high – temperature environments, such as:
Industrial Automation: It is used in various mechanical equipment on the production line, such as conveyor belts, robots, and automatic assembly lines.
Aerospace: It is used in the control systems and transmission systems of aircraft, rockets, and other aerospace vehicles.
Automotive Industry: It is used in the drive systems and auxiliary systems of electric vehicles and hybrid vehicles.
Medical Equipment: It is used in medical equipment such as high – temperature sterilization equipment and surgical instruments.
Other Fields: Such as oil drilling, mining, and marine engineering, which require operation in high – temperature environments.
Precautions
Power Supply Voltage Matching: Ensure that the power supply voltage connected to the motor is consistent with the rated voltage of the motor to avoid damage to the motor or abnormal operation caused by excessive or insufficient voltage.
Load Management: Avoid long – term over – load operation of the motor to prevent overheating, damage, or reduction of the service life of the motor. When starting the motor, the load should be gradually increased to avoid instant large – load impact.
Heat Dissipation and Ventilation: Although the motor has the ability to work at high temperatures, when operating in a high – temperature environment for a long time, good heat dissipation and ventilation conditions around the motor should still be ensured to extend the service life of the motor.
The BL45100AE high temperature series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other scenarios with high – efficiency requirements, X – TEAM motors can provide stable and reliable power output. If you need more information or want to order a BLDC motor, you can contact us in the following ways:
Tel: +86 – 769 – 85228181
E – mail: chris@x – teamrc.com
