Description
X-TEAM BL4060BF High Power Series BLDC Motor is a high-performance brushless DC motor. The “BL4060BF” in its model number represents the specific series and specifications of the motor, ensuring that users can accurately identify and select the motor suitable for their application.

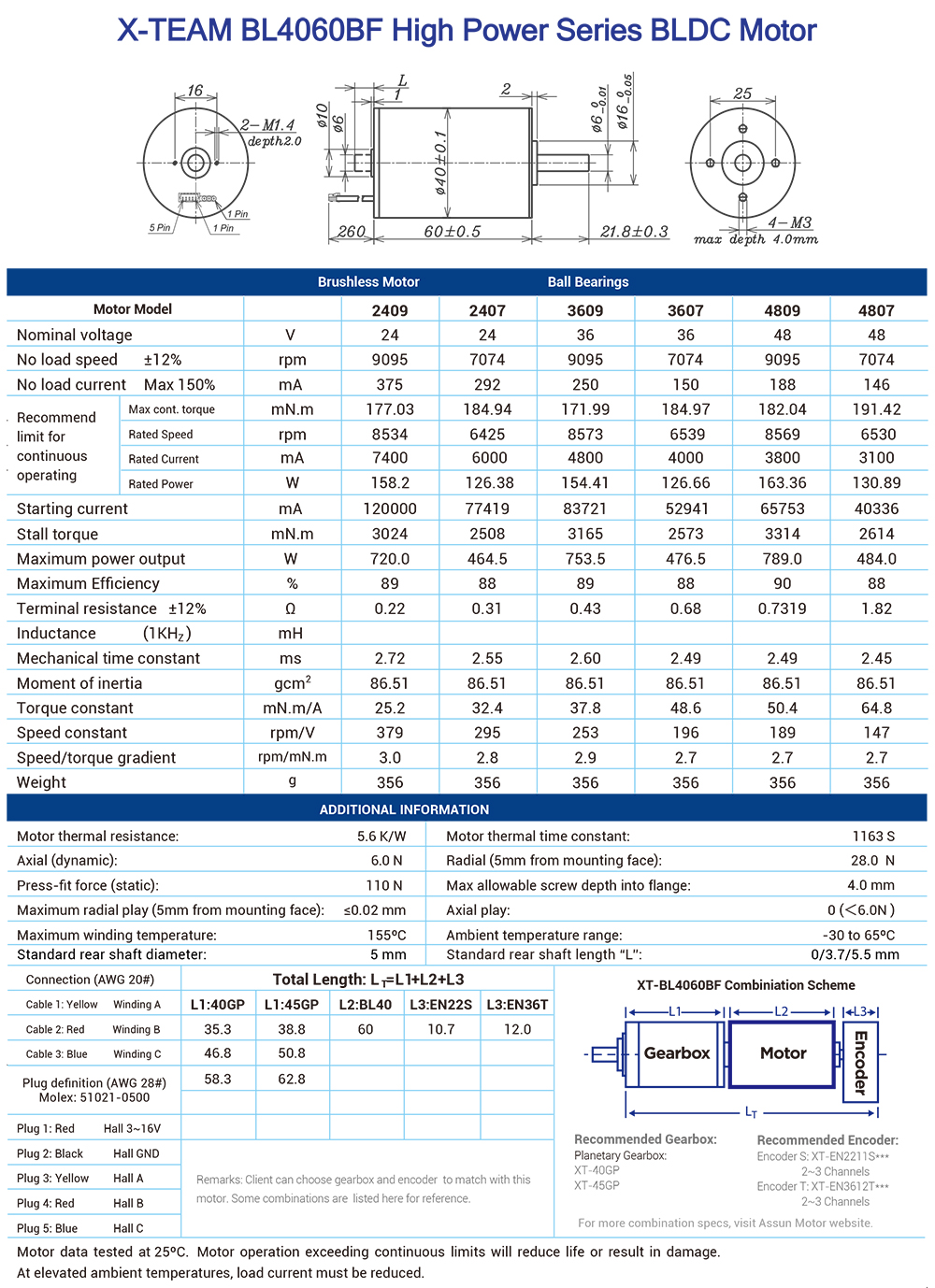

Performance parameters
Voltage range: The motor supports a variety of voltage levels, including 24V, 36V and 48V, meeting the voltage requirements in different application scenarios.
Speed and current: Under no-load conditions, the motor speed can reach 9095 to 7074 revolutions per minute (rpm), depending on the selected voltage level. The no-load current is between 375 and 146 milliamperes (mA), ensuring stable operation of the motor when no-load. At the same time, the motor also provides key parameters such as recommended maximum continuous torque and rated power to meet the needs of users under different load conditions.
Starting and stalling characteristics: The starting current is between 120,000 and 40,336 mA, showing the strong power of the motor at startup. The stall torque is as high as 3024 to 2614 millinewton meters (mN.m), indicating that the motor can still maintain a large output force when facing a stall situation.
Power and efficiency: The maximum power output of the motor can reach 720.0 to 484.0 watts (W), and the maximum efficiency is maintained between 88% and 90%, ensuring that the motor can output enough power to meet application requirements while operating efficiently.
Structural features
Brushless design: The use of brushless DC technology reduces maintenance requirements and improves the reliability and service life of the motor.
Ball bearing support: The motor uses ball bearing support inside to ensure the stable operation of the rotating parts and reduce friction and wear.
Multiple installation methods: The motor provides a variety of installation methods, including different rear axle diameters, lengths and connection options, which are convenient for users to choose according to actual application scenarios.
High-precision encoder and gearbox options: Users can choose to equip with high-precision encoders or gearboxes to meet the precise needs of motor position and speed control.
Application Scope
X-TEAM BL4060BF High Power Series BLDC Motor is widely used in industrial automation, robotics, aerospace, medical equipment, electric vehicles and other fields due to its excellent performance and flexible structural design. Whether it is an application scenario that requires high-speed rotation, high-precision control or high load capacity, this motor can provide excellent performance.
Notes
The motor data are tested at 25°C. Exceeding the continuous operation limit will shorten the motor life or cause damage.
When used in a high temperature environment, the load current needs to be appropriately reduced to ensure stable operation of the motor.
When selecting gearboxes and encoders, users must refer to the recommended options or consult professional engineers to ensure compatibility.
X-TEAM BL4060BF High Power Series BLDC Motor has become one of the preferred choices in the industrial and automation fields with its excellent performance, wide application fields and flexible combination options. If you need more information about this series of motors, you can contact us for more details through the following methods.
Tel: +86-769-85228181
Email: chris@x-teamrc.com
