Description
BL3690BF high power series coreless BLDC motor is a high-performance brushless DC motor designed for high-power applications. With its excellent performance parameters and wide application areas, this motor is an ideal choice for many industrial and commercial applications.

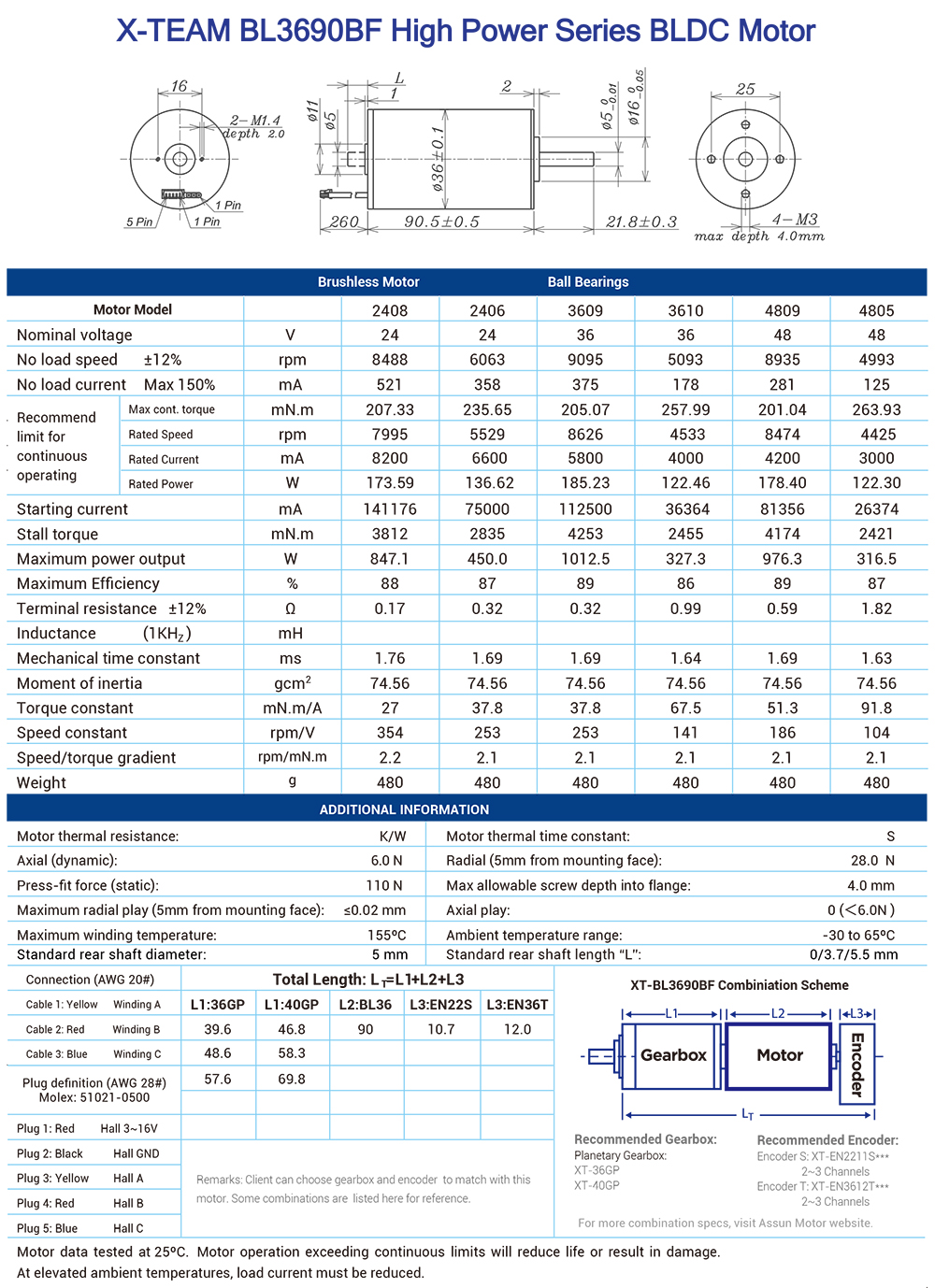

Product Models and Specifications
BL3690BF series motors are available in a variety of models, including 2408, 2406, 3609, 3610, 4809 and 4805, to meet the needs of different customers. Each model has unique voltage, current and speed specifications to ensure stable and reliable power output under various working conditions.
Performance Parameters
Voltage: The rated voltage of this series of motors ranges from 24V to 48V, and the appropriate voltage level can be selected according to the specific application scenario.
Speed: The no-load speed is up to 9095rpm (taking 36V as an example), and can be adjusted within the rated speed range according to the load conditions.
Torque: The maximum continuous torque can reach 263.93mN.m (taking 48V as an example), ensuring that the motor can maintain stable operation under heavy load conditions.
Power: The rated power and maximum power output have been strictly tested to ensure that the motor can maintain good performance under long-term operation.
Structural features
Bearing type: High-performance ball bearings are used to ensure that the motor has lower friction and wear when running at high speed, extending the service life.
Mounting hole: The motor provides 4-M3 mounting holes, which is convenient for customers to install and fix according to actual needs.
Recommended operating temperature range: The motor can work normally in an ambient temperature range of -30℃ to 65℃, ensuring stable performance in various harsh environments.
Additional information
Thermal resistance and thermal time constant: The thermal resistance and thermal time constant of the motor are accurately measured to ensure effective heat dissipation under long-term operation and prevent overheating damage.
Axial and radial force: The motor can withstand a certain force in both the axial and radial directions to ensure stable operation under various working conditions.
Encoder and gearbox: Customers can choose matching encoders and gearboxes according to actual needs to meet different control accuracy and transmission ratio requirements.
Application fields
BL3690BF high power series coreless BLDC motor is widely used in industrial automation, aerospace, medical equipment, electric vehicles and other fields. Its excellent performance parameters and reliable quality assurance make this motor the preferred product for many customers.
Notes
The motor data are tested at 25℃, and it needs to be adjusted appropriately according to the ambient temperature during actual use.
Running the motor beyond the continuous limit will shorten the service life or cause damage. Please be sure to use it within the rated range.
BL3690BF high power series coreless BLDC motor has become one of the preferred choices in the industrial and automation fields with its excellent performance, wide application fields and flexible combination options. If you need more information about this series of motors, you can contact us for more details through the following methods.
