BL3675BF high power series coreless BLDC motor

Description

BL3675BF High Power Series Coreless BLDC MotorThe BL3675BF high power series coreless BLDC motor is an advanced motor designed by X-TEAM to meet the demands for high power, high efficiency, and high reliability. This motor integrates many advantages of brushless DC motors, such as high efficiency, low noise, long lifespan, and precise control of rotational speed and torque. It is widely used in fields such as industrial automation, electric vehicles, aerospace, and medical equipment.

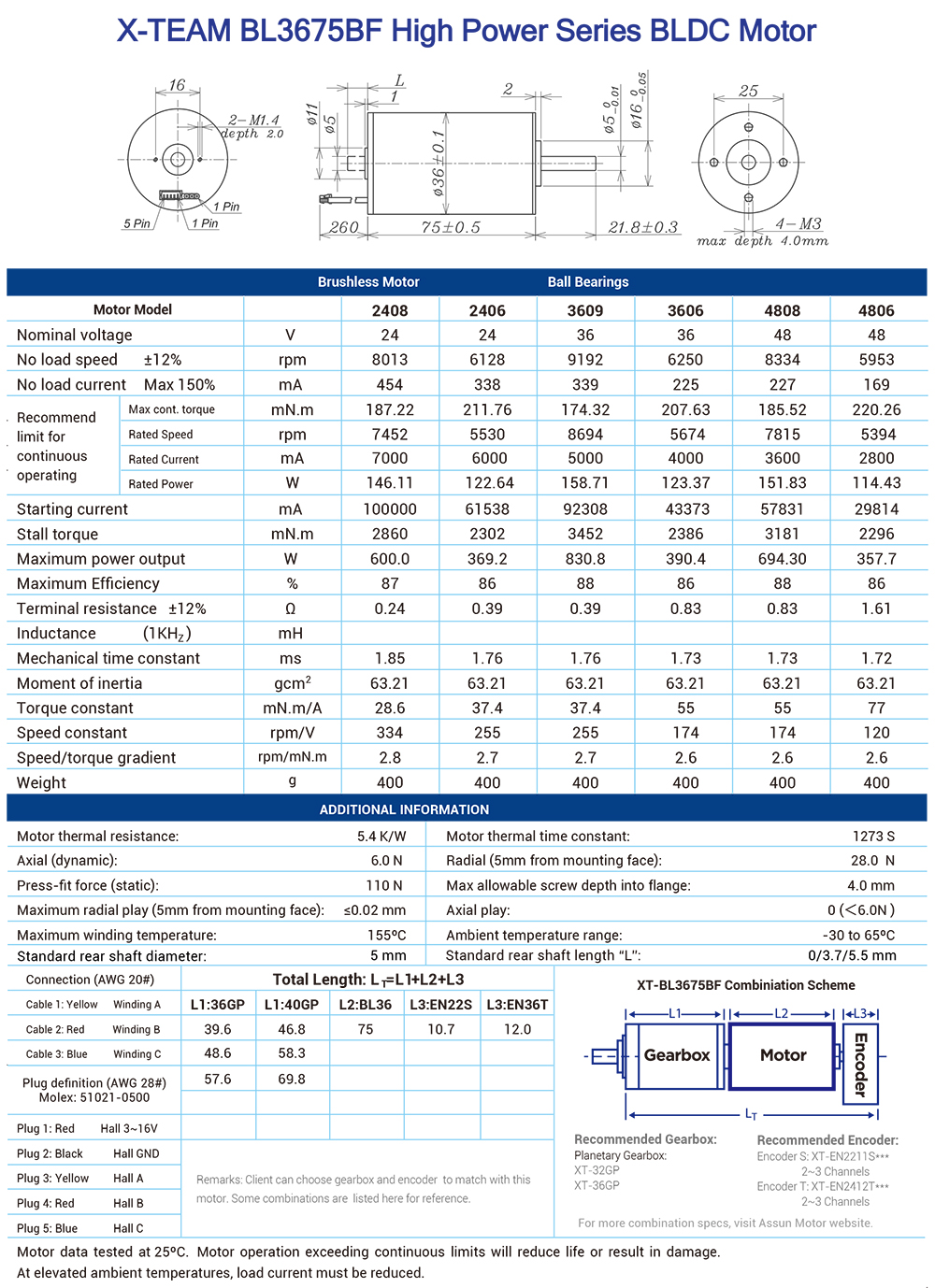

Motor Models and Specifications
The BL3675BF high power series coreless BLDC motor offers a variety of models and specifications to choose from, so as to adapt to different application scenarios and performance requirements. These include 2408, 2406, 3609, 3606, 4808, and 4806, and each model corresponds to different rated voltages and performance characteristics.

Performance Parameters
Rated Voltage: The rated voltages are 24V, 36V, and 48V respectively, meeting the application scenarios with different voltage requirements.
No-load Rotational Speed: The no-load rotational speeds of motors of various models range from 6128 rpm to 9192 rpm, ensuring efficient operation.
No-load Current: The maximum no-load current is limited to within 150%, and the specific value varies according to different models.
Recommended Maximum Torque: The recommended maximum torques of motors of various models range from 174.32 mN.m to 220.26 mN.m, providing a powerful torque output.
Rated Rotational Speed: The rated rotational speed range of the motor is from 5394 rpm to 8694 rpm, ensuring stable operation.
Rated Current: The rated current varies according to different models, ranging from 2800 mA to 7000 mA.
Rated Power: The rated power range is from 114.43 W to 158.71 W, providing sufficient power output.
Starting Current: The starting current is relatively large, but motors of all models can withstand it to ensure smooth starting.
Maximum Torque: The maximum torque is as high as 2860 mN.m, meeting the requirements of high loads.

Structural Features
Ball Bearing Design: Ball bearings are used to improve the durability and load capacity of the motor.
Multiple Connection Methods: A variety of cable and plug combination solutions are provided, making it convenient for users to make connections according to their actual needs.
Efficient Heat Dissipation: The optimized heat dissipation design ensures that the motor can operate stably even in high-temperature environments.
Compact Structure: The compact structural design of the motor makes it easy to be integrated into various devices.

Applications and Precautions
Application Fields: The BL3675BF high power series coreless BLDC motor is suitable for industrial automation, used to drive various automated equipment and improve production efficiency. As the core power source of robots, it provides stable and reliable power output. It provides efficient and long-lasting power for power tools, enhancing the performance of the tools.
Power Supply Voltage: Ensure that the power supply voltage of the motor conforms to the rated voltage of the motor to avoid affecting the performance and lifespan of the motor due to too high or too low voltage.
Regular Maintenance: Regularly check the working status of the motor and the controller, and replace the worn parts in a timely manner to keep the motor in good working condition. Clean the surface of the motor, remove dust, oil stains, and other impurities, use appropriate cleaning agents and cloths, and avoid using cleaning agents containing acids or alkalis.
Safe Use: When using the motor, relevant safety regulations should be complied with to ensure the safety of personnel and equipment.

The BL3675BF high power series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other scenarios with high-performance requirements, the X-TEAM motor can provide stable and reliable power output. For more information or to order a BLDC motor, you can contact us in the following ways:
